Geberit PushFit Push-fit connection system for drinking water pipes
Secure connections at every level
Geberit PushFit is an innovative piping system known for its quick, easy and tool-free installation.
With its intelligent push-fit connection system, Geberit PushFit enables fast and hassle-free assembly of pipes for drinking water and heating applications.

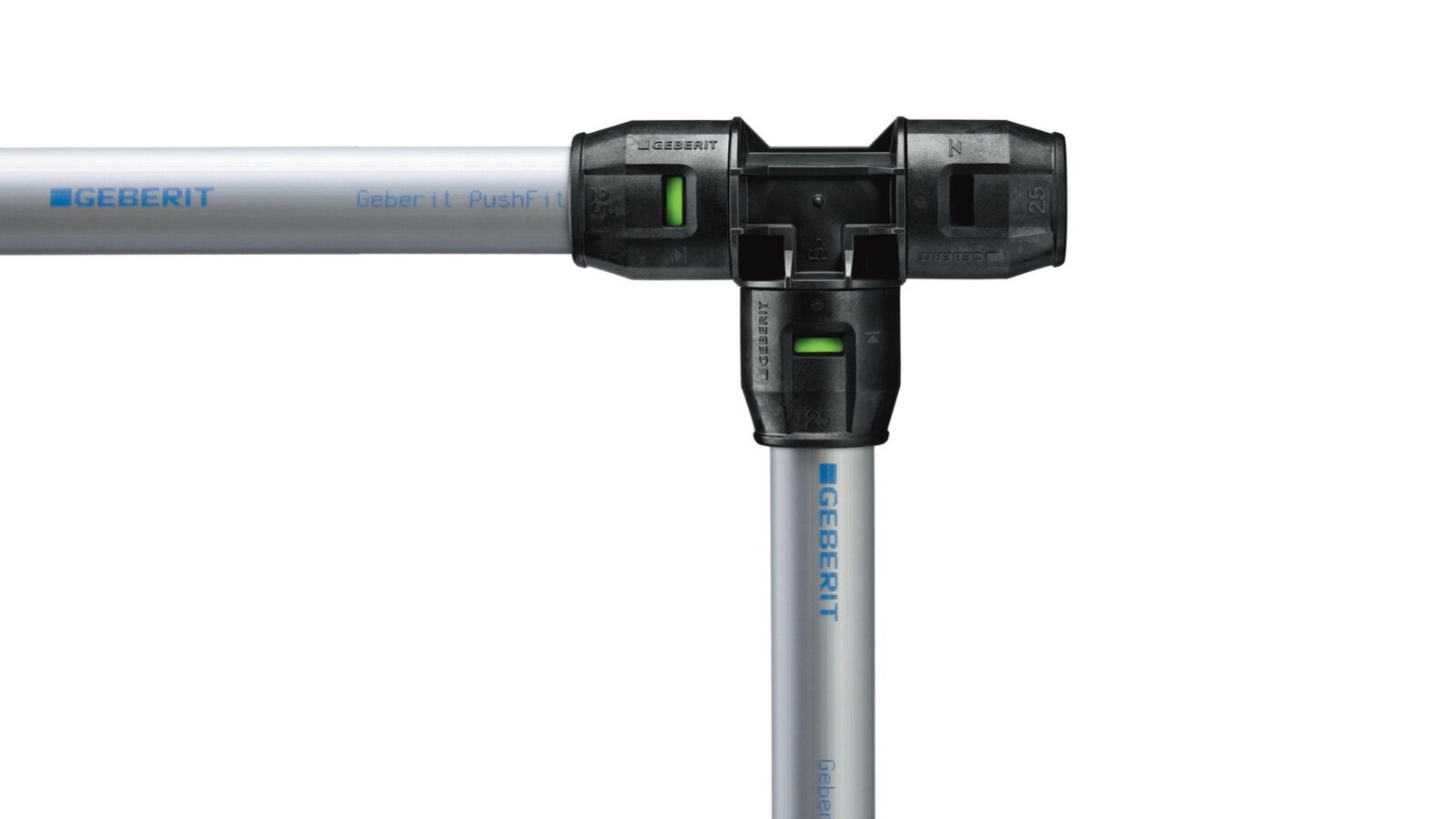

Once the pipes have been calibrated and deburred, they are ready to be simply inserted into the fitting. When the green indicator appears in the push-fit fitting, the plumber knows that the pipe and fitting are securely connected.
The flexible yet inherently stable pipe is ideal for storey distribution.
Why choose Geberit PushFit?
Easy installation

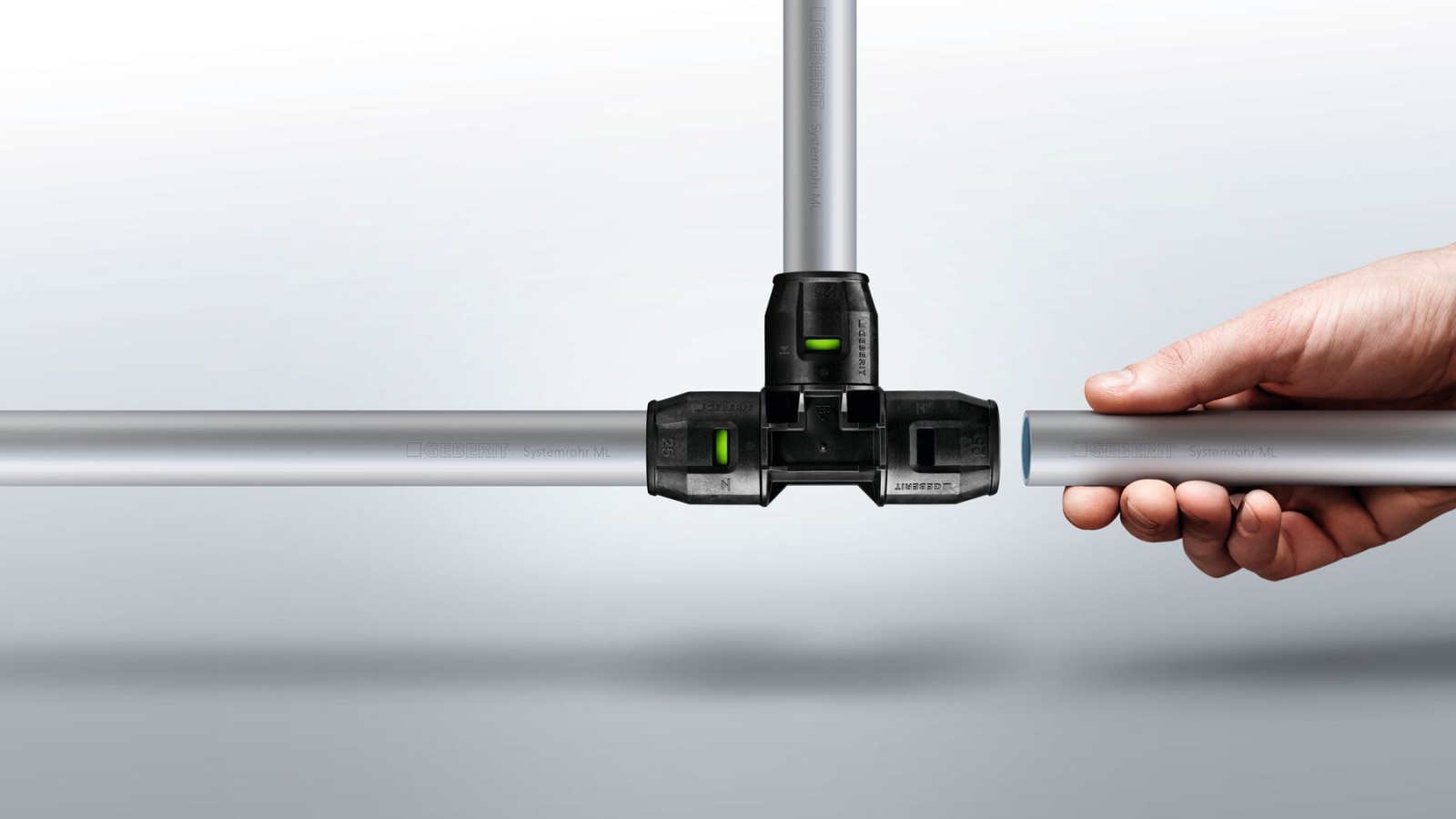

Simply insert the system pipe, and the connection is complete – quick and hassle-free.
Reliable connection
A clamping claw ring inside the push-fit fitting guarantees a strong and secure connection with high tensile strength.
Simple verification
If the push-fit indicator is green, the pipe and fitting are securely connected –
ideal for floor-level connection pipes.
Geberit PushFit was specially developed for connection pipes at floor-level.
Main applications and areas of use
Drinking water pipes
Geberit PushFit can be used for hot and cold water connection pipes in the drinking water supply.
Laying in concrete
Geberit PushFit system pipes PB can be laid in concrete when installed within protective tubes.

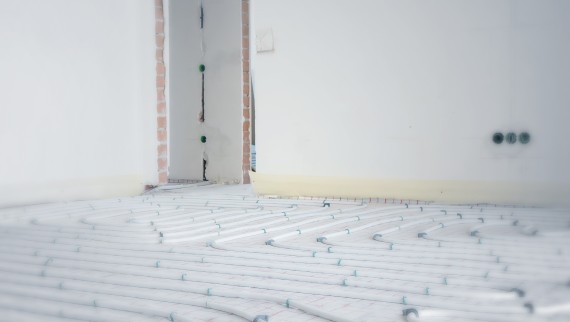

Underfloor heating
Geberit PushFit system pipes PB can also be used for underfloor heating systems.
Cooling and heating
Geberit PushFit is also suitable for cooling and heating water systems with or without antifreeze agent, for pressures of up to 10 bar.
Benefits of Geberit PushFit
Quick and easy installation
The lightweight multilayer pipe is easy to handle in all three dimensions and can be bent by hand.

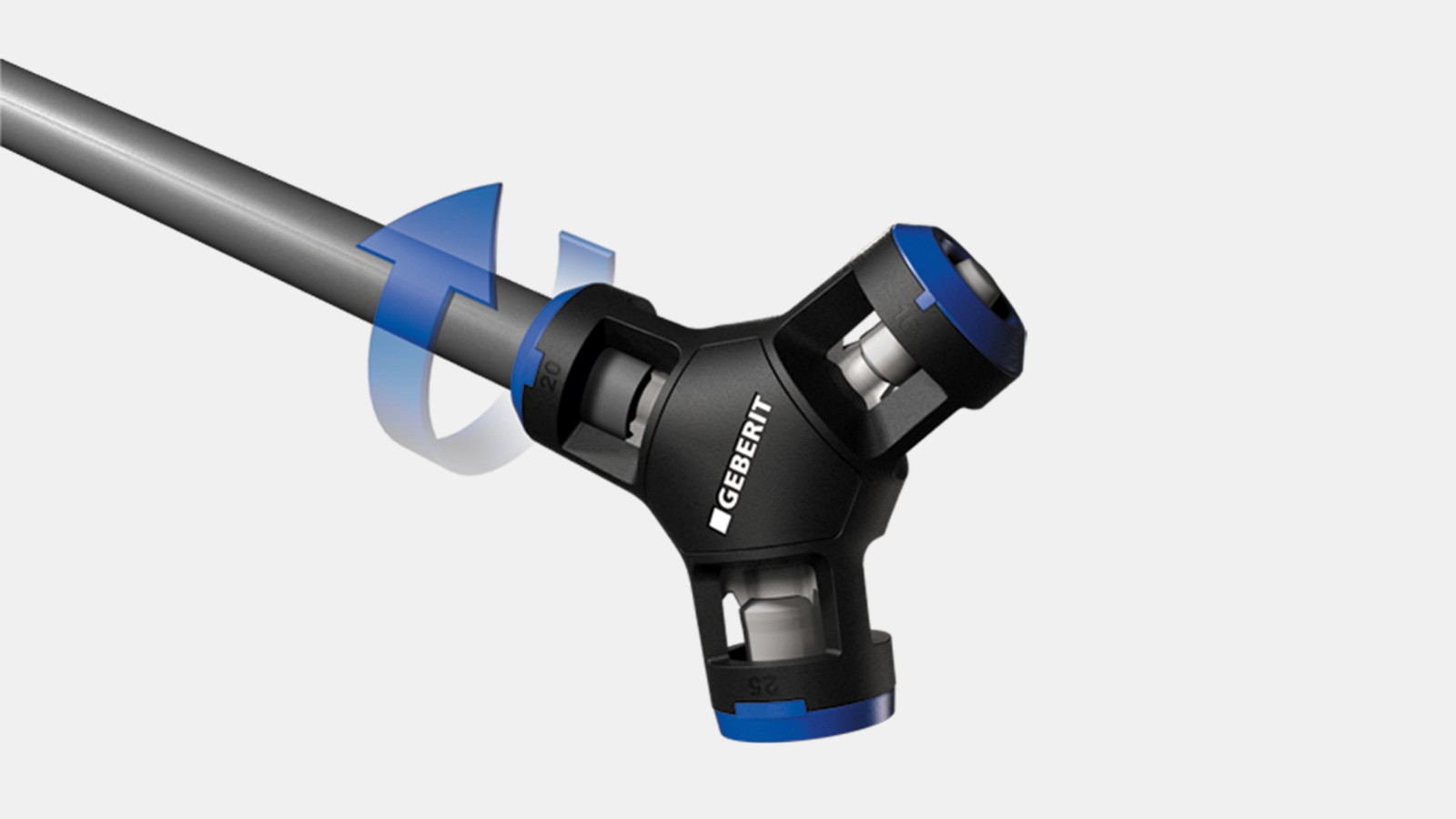

With just a single tool for all dimensions, the pipes are deburred and calibrated in a single step once cut to length. Deburring and calibration attachments are also available as options for cordless drill drivers. The pipe is then inserted into the push-fit fitting until the indicator turns green – and that’s all there is to it!
All Geberit PushFit fittings come with protective caps to shield them from dust, dirt and damage. This keeps them in perfect condition from outbound delivery and storage through to use on the building site.
Secure push-fit connection

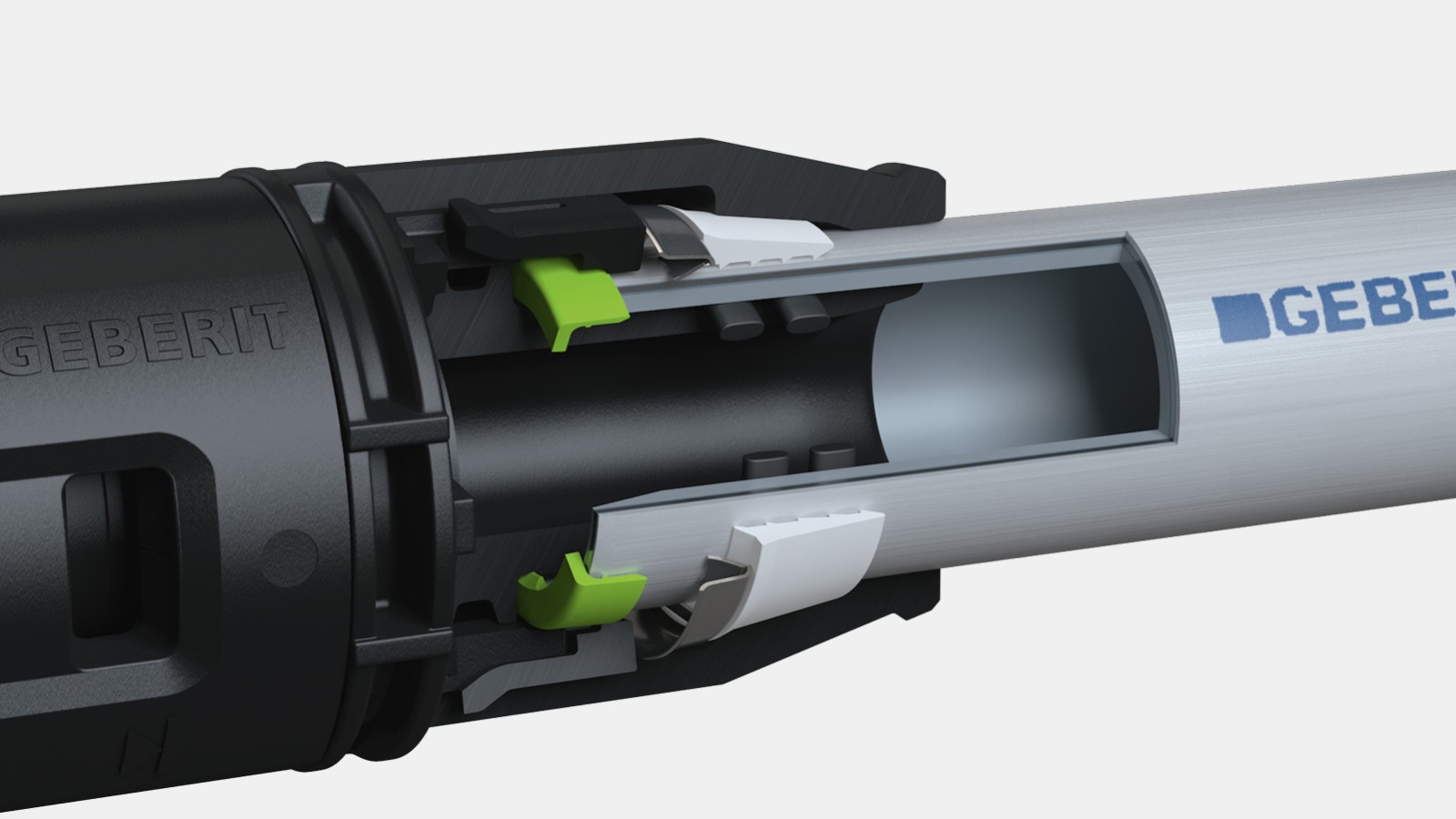

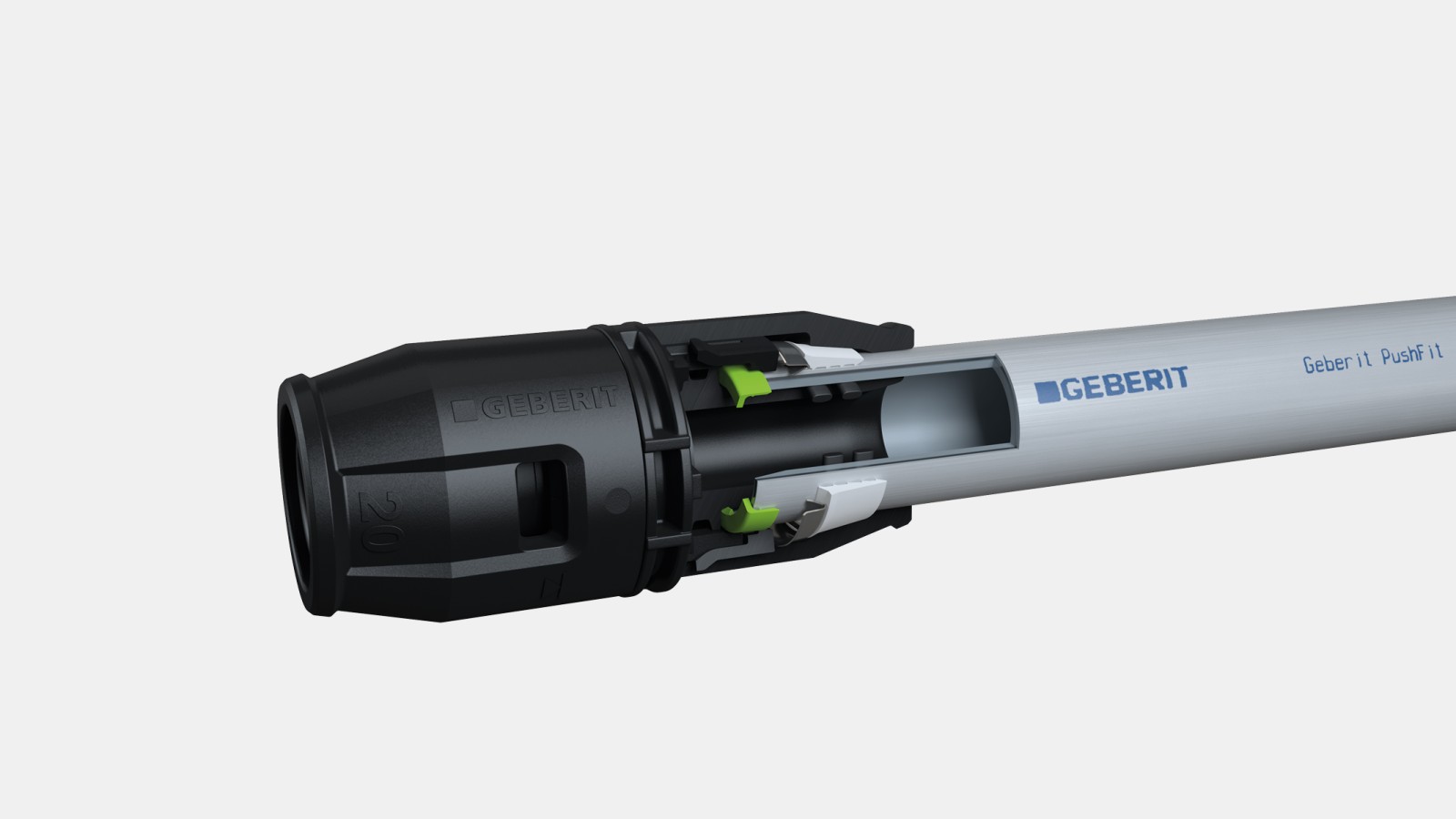

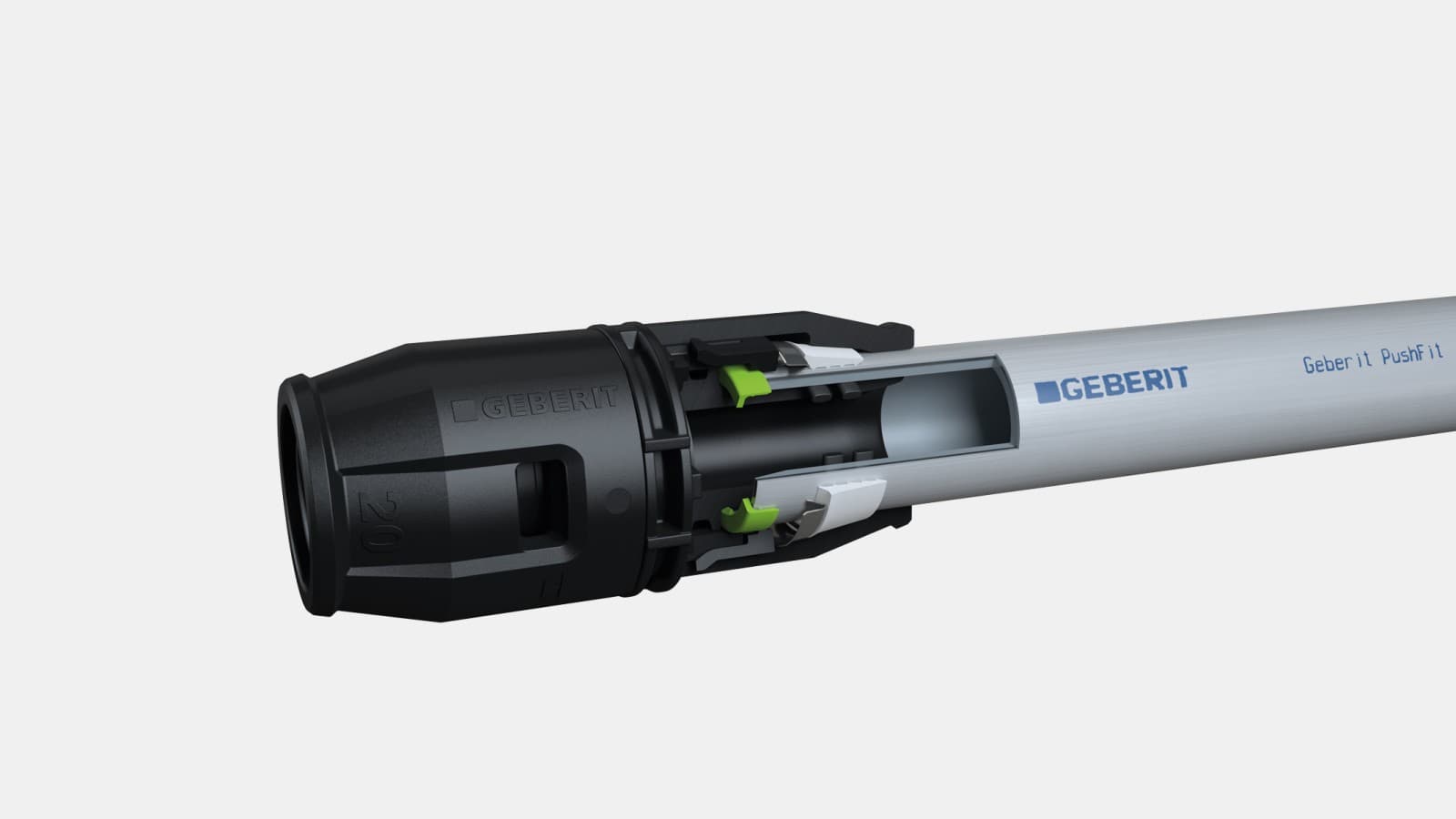

Geberit PushFit works with a safety concept comprising two seal rings. The first O-ring not only works as a seal, but also acts as a wiper for cleaning contaminants from the pipe. A second O-ring provides additional safety.

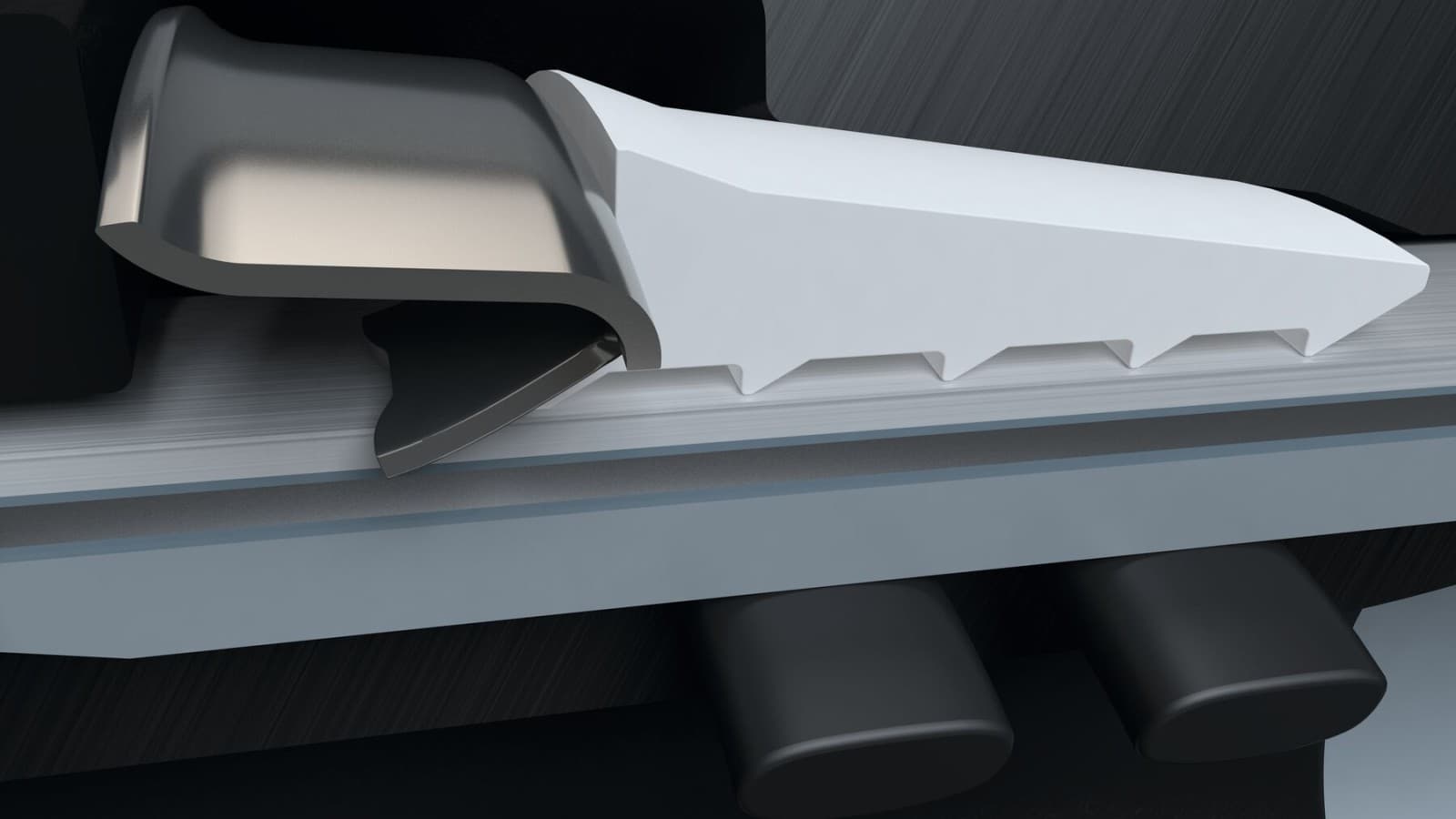

The push-fit fitting has integrated corrosion-resistant retaining claws made of stainless steel for a secure, high-tensile connection.

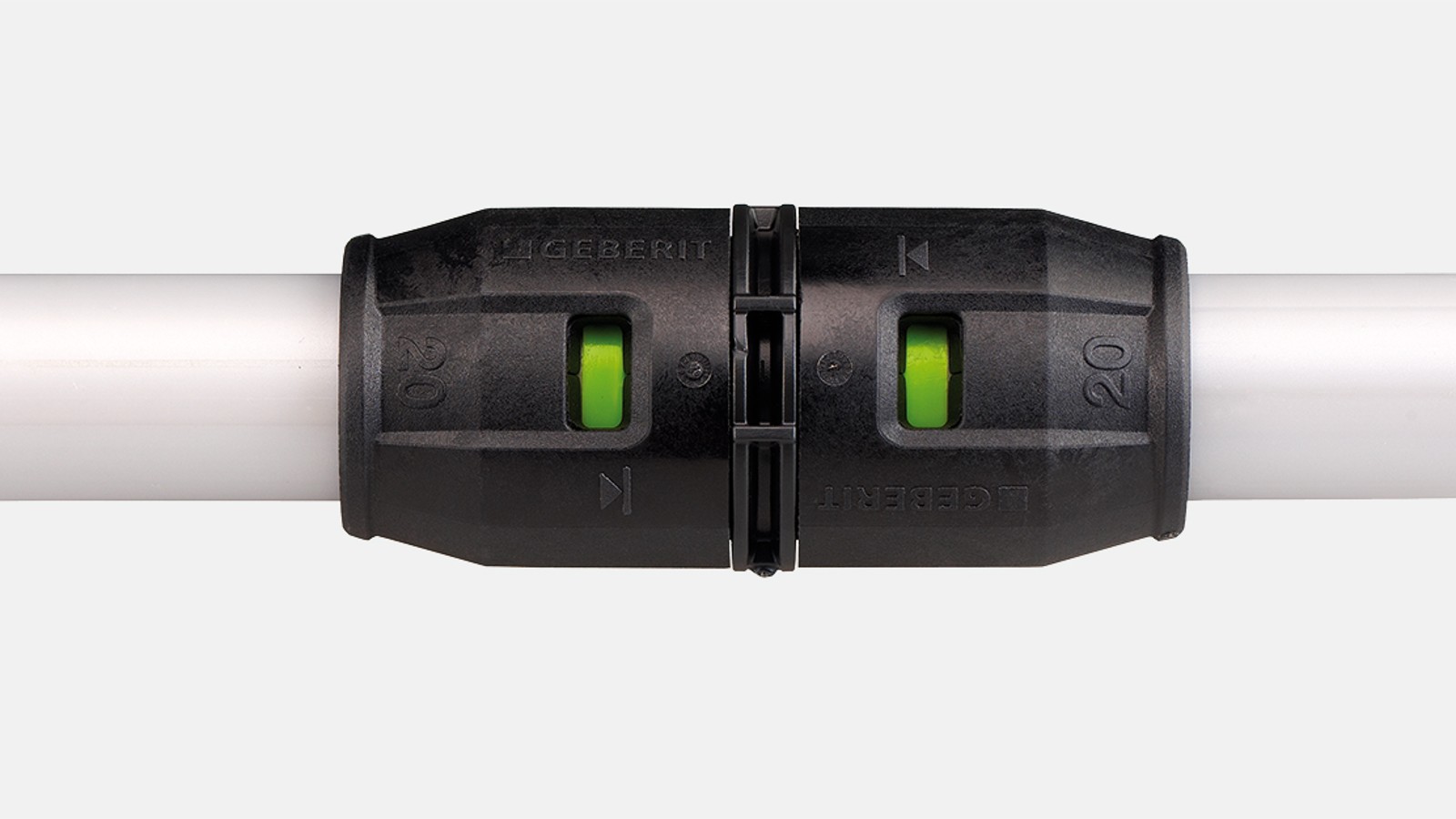

Visible safety: when the push-fit indicator is green, this confirms that the Geberit PushFit pipe is securely inserted into the Geberit PushFit fitting for permanent tightness.
Ideal for floor connection
The Geberit PushFit system pipe is also available with a protective tube or as a pre-insulated model for sanitary and heating piping.
Adapters with pressing contours for Geberit pressing systems are used for easily connecting Geberit PushFit to the riser pipe. Threaded connections and transitions no longer require time-consuming hemp sealing.
Geberit PushFit provides the appropriate fittings to suit the respective application range and conditions. The robust push-fit fittings are made of the tried-and-tested plastic PVDF. Threaded adapter fittings are available in brass-coloured or gunmetal versions.
Geberit PushFit at a glance
Facts & figures
Assortment overview
- Available in dimensions d16, d20 and d25
- Around 500 fittings and components

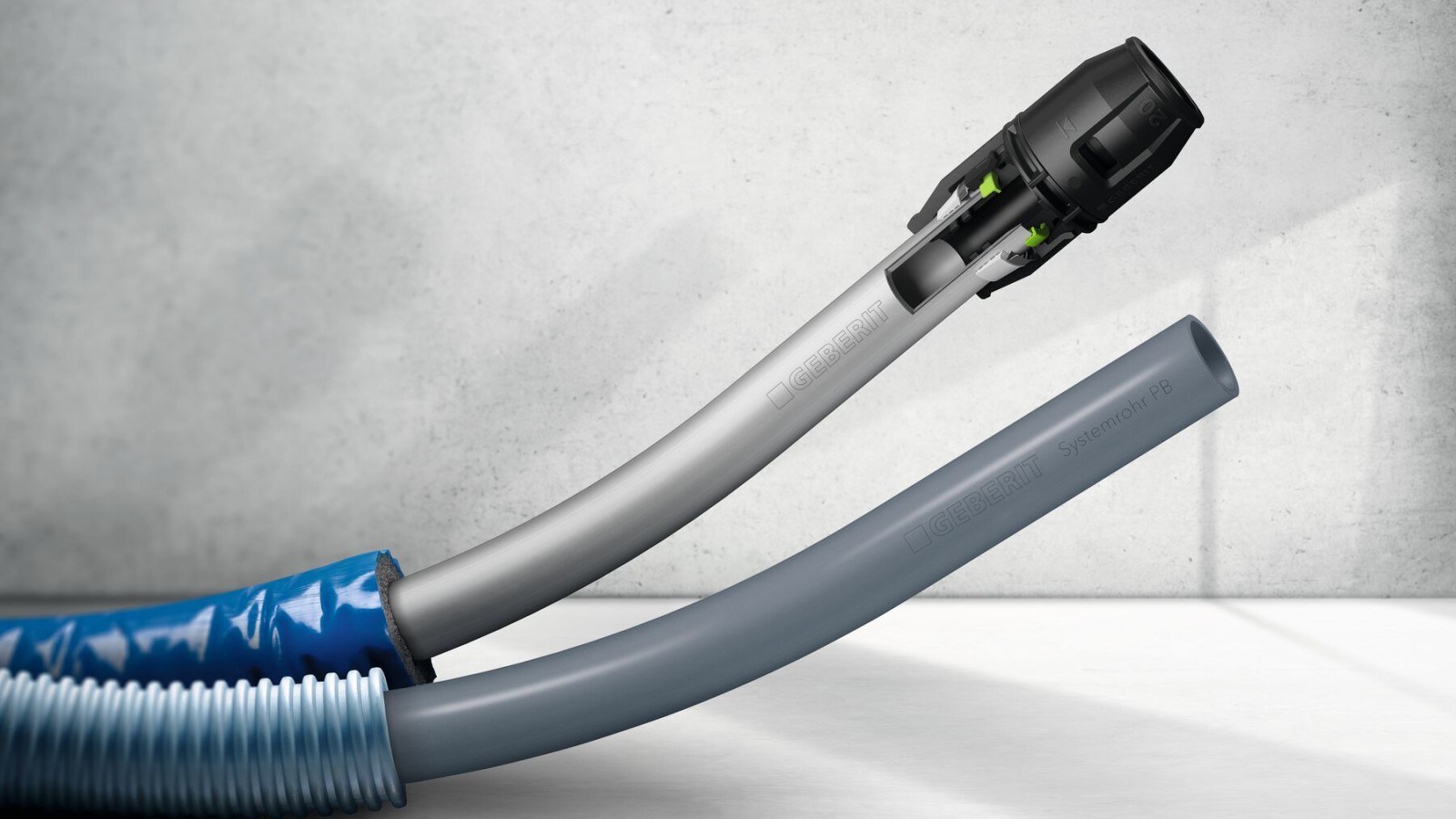

- Multilayer (ML) system pipes, also available in a protective tube or pre-insulated
- Polybutene (PB) system pipes, also available in a protective tube
- MasterFix adapter for tool-free, secure screw connections to Geberit sanitary appliances
- Extensive assortment of adapters and transitions to other systems
Dimensions
Available pipe dimensions
| Nominal width (DN) | Dimension d x s (mm) |
|---|---|
| 16 | 16 x 2.0 |
| 20 | 20 x 2.0 |
| 25 | 25 x 2.0 |
Fittings
Geberit PushFit fittings
- Thanks to their reinforced edges, Geberit PushFit fittings are suitable for building sites without restrictions
- Protective caps on the push-fit ends of the fittings prevent accumulations of dirt and particles
- Visible safety via the push-fit indicator with green marking
- Plug connections for tool-free installation
System pipes
System pipe assortment

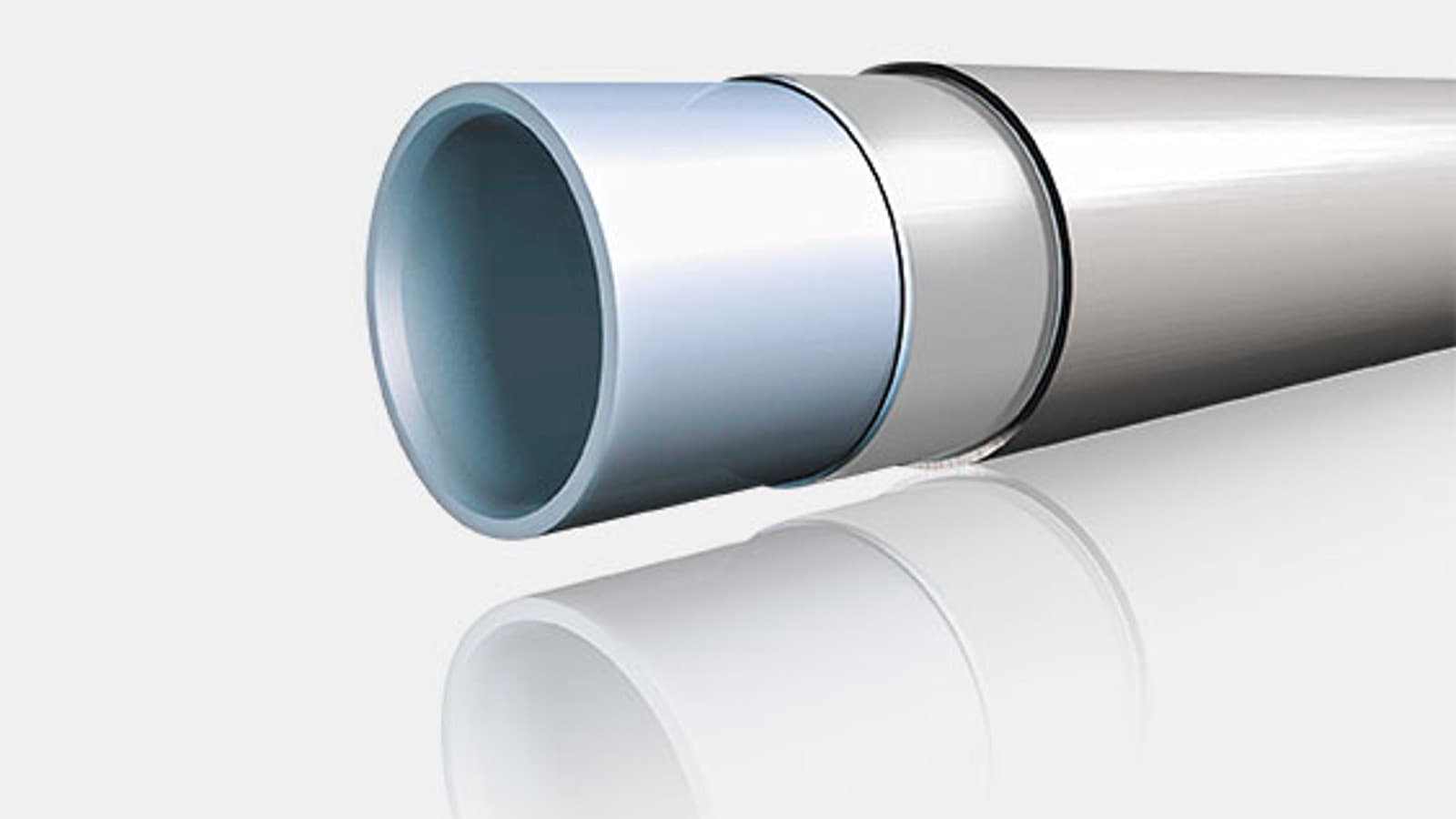

Geberit PushFit system pipe ML
- Lightweight and inherently stable with a thin aluminium pipe core
- Easy to process and can be bent by hand
- Available pipe dimensions: 16, 20 and 25 mm
- Available as a rough pipe with a protective pipe shell or with insulation made of polyethylene foam
- Various insulating layer thicknesses with durable and seamless foil coating available
- Protection plugs on the pipe ends prevent the accumulation of dirt and particles
- Available in coils

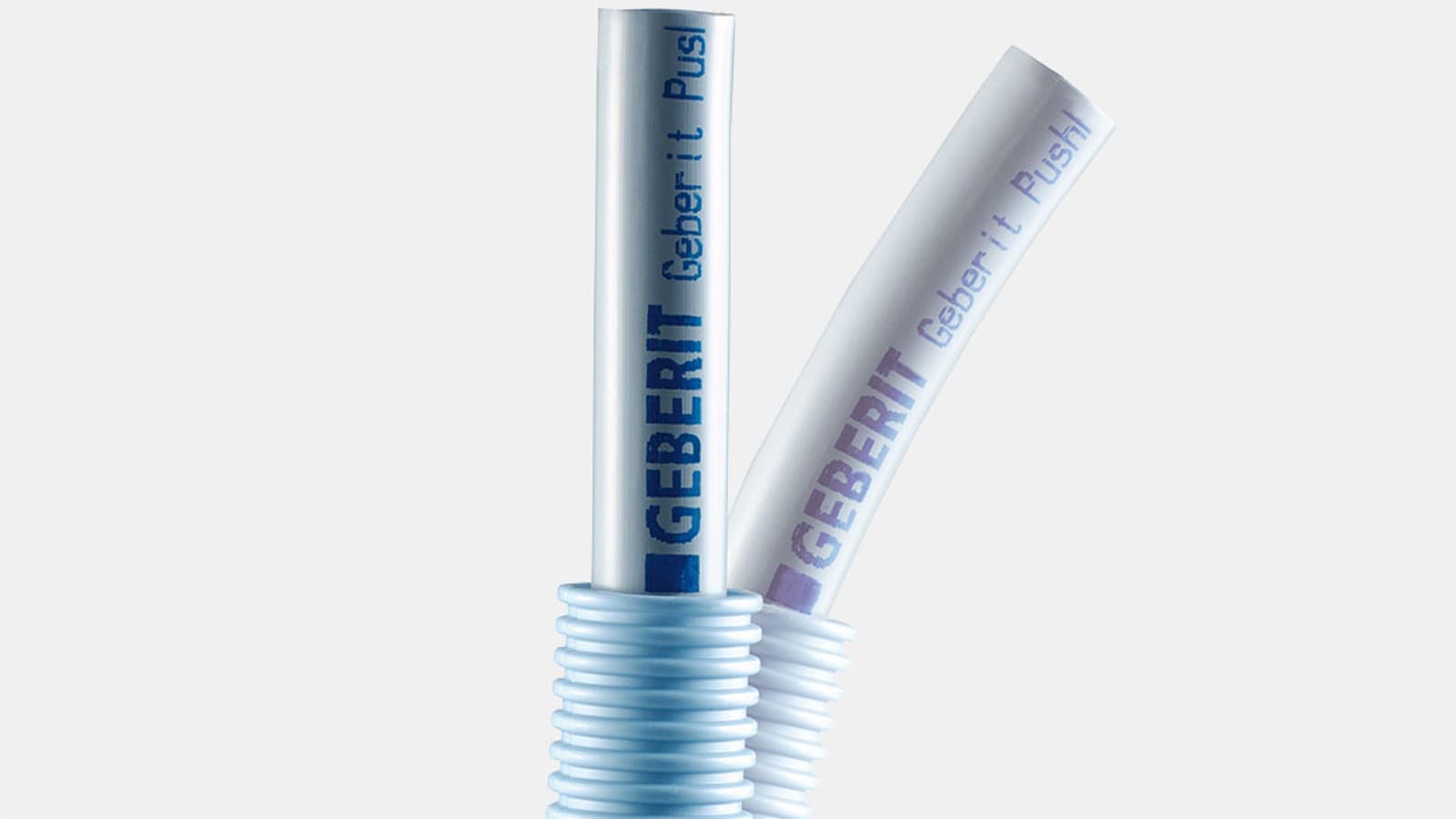

The Geberit PushFit system pipe PB with protective tube
- Highly flexible all-plastic pipe
- Available pipe dimensions: 16, 20 and 25 mm
- Ideal for inserts with protective tube shell in concrete
- Protection plugs on the pipe ends prevent the accumulation of dirt and particles
Installation
A quick guide to installation
Product assortment Geberit PushFit Articles, technical information and more
Do you have any questions? We are happy to help you.
Our specialists advise planners, plumbers and other professionals on their projects. They will be happy to advise you on how to best master your current challenges with our products.
Useful planning tools for Geberit PushFit
Geberit BIM Plug-in
The Geberit BIM Plug-in for Autodesk® Revit® combines all Geberit planning and calculation tools as well as access to BIM content in one application.

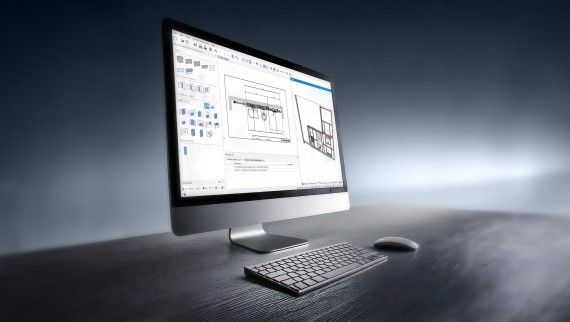

Geberit ProPlanner
This software enables plumbers and plumbing companies to plan their sanitary installation projects independently. Planning is simple, precise and fast with Geberit ProPlanner.
