Geberit flush plates for WCs Choice is important

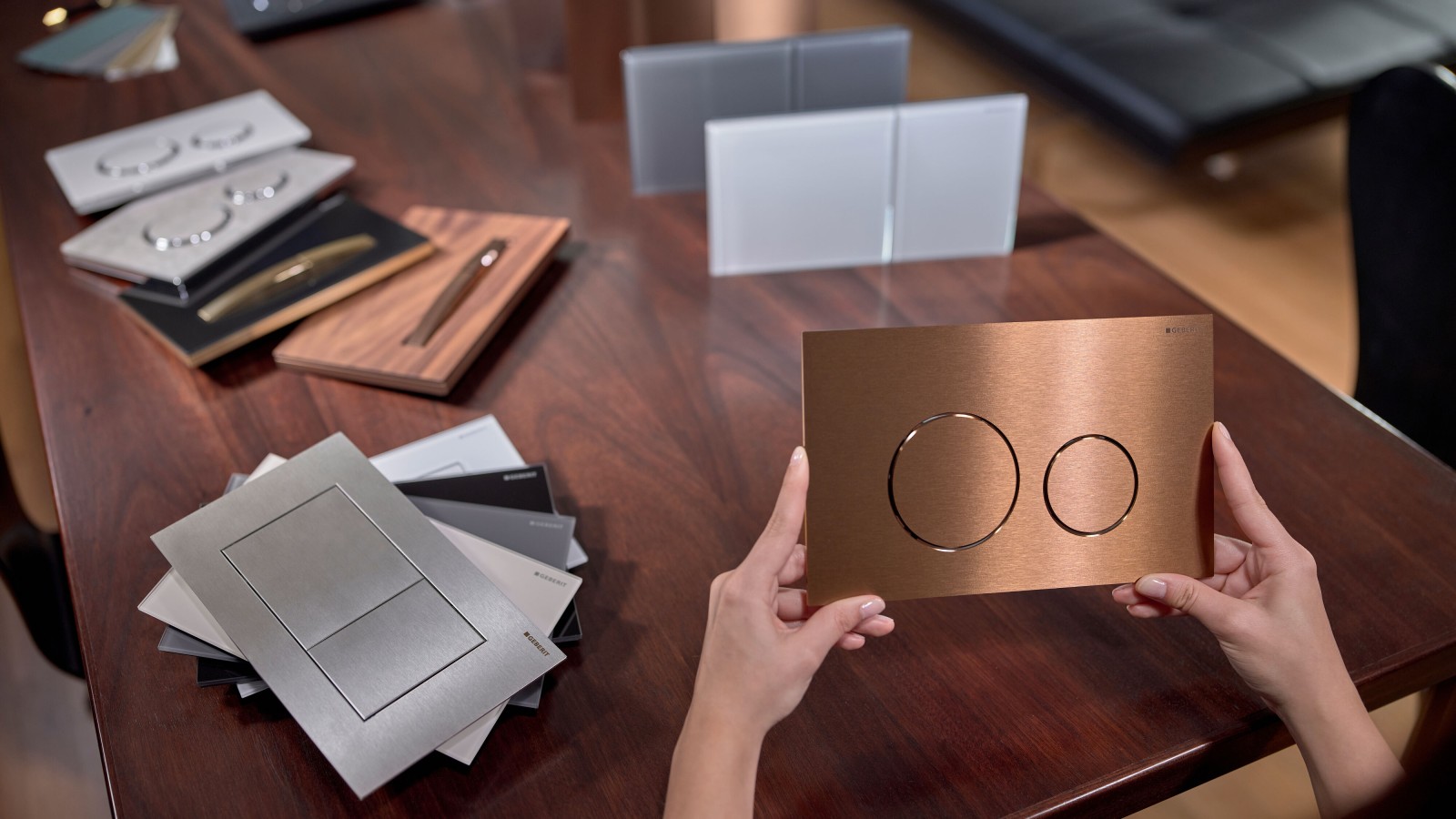

Flush plate showroom

Various flush plates available

At the end of the day, it’s your bathroom. This is why you shouldn’t make any compromises when it comes to choosing the flush plate for the toilet flush. The same goes for your tiles, taps and ceramics. Selecting the right design options means ensuring that individual nuances are perfectly coordinated. The flush plate not only adds the finishing touch to your bathroom, it also offers comfort functions that can really enhance your lifestyle.

Discover the extensive range of available options in our flush plate showroom and be inspired by the variety of shapes, colours and materials on offer.

Design flexibility

Geberit Xeno² bathroom with Sigma50 in white

Geberit flush plates don’t just look great, they also feature versatile functions. There is a suitable flush plate with corresponding options to suit all tastes and requirements:

  • Odour extraction unit
  • Orientation light
  • Insert for Geberit DuoFresh sticks
  • Touchless toilet flush
  • Surface-even installable actuator plates
  • Remote flush actuations
  • Customised designs

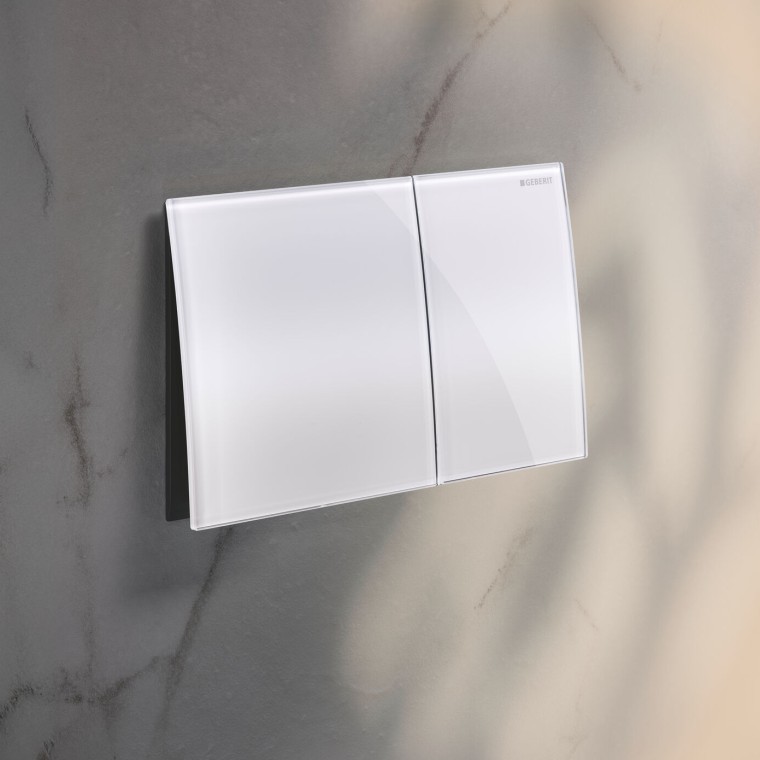

Geberit Sigma70 Minimalist, floating design

More options in overview

Geberit DuoFresh

Geberit actuator plate Sigma50 odour extraction
Fresh air for everyone

The new Geberit odour extraction unit for toilets can be installed in all concealed cisterns from the Sigma range. In addition to an air filter, it also has an orientation light and an insert for in-cistern blocks. Under certain conditions, existing toilet systems can also be retrofitted with the odour extraction unit.

The Geberit odour extraction unit removes unpleasant odours directly from the WC ceramic appliance. It extracts the air through the flush pipe and flush valve, purifies it using a ceramic honeycomb filter and then returns it to the room. It also offers the following functions:

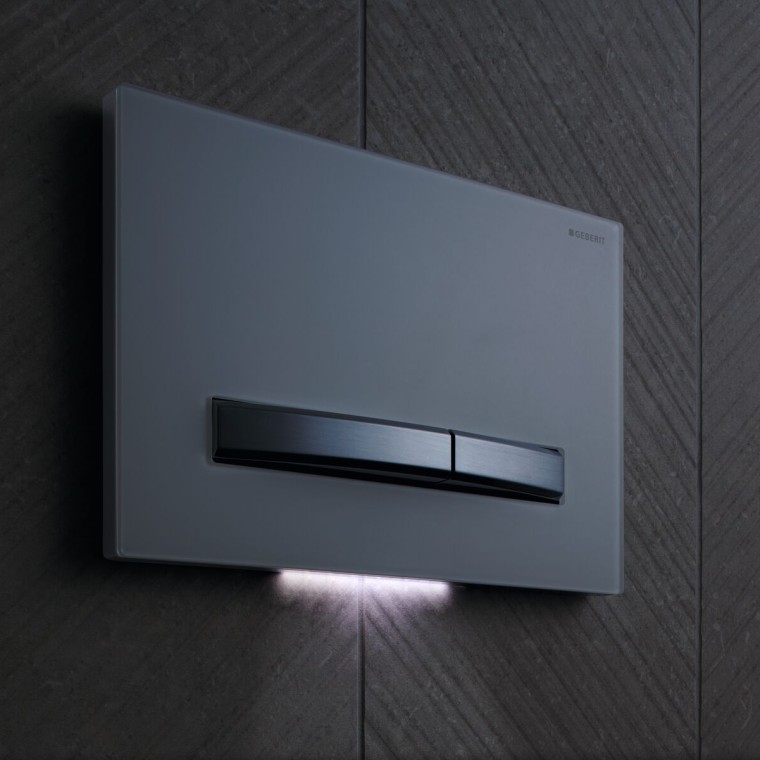

  • An LED orientation light behind the actuator plate provides discreet lighting when going to the toilet at night. The light is controlled by a proximity sensor, which ensures that the air extraction and orientation light are automatically switched on and off. The settings of the proximity sensor can be personalised via app.
  • Insert for in-cistern blocks. These blocks colour the flush water blue and produce a pleasantly fresh fragrance.
Installation and consumables

Installation is simple and well thought out. The only requirement is a connection to the 230 V power supply system.

  • With the exception of the transformer, all components are installed through the cistern’s service opening. In line with regulations, the transformer is stored elsewhere – such as in a flush-mounting box with service opening.
  • The transformer is sold under a separate article number.
  • Apart from a few exceptions, all actuator plates from the Sigma range can be combined with the odour extraction unit. Actuator plates from older series have to be replaced in the event of retrofitting.

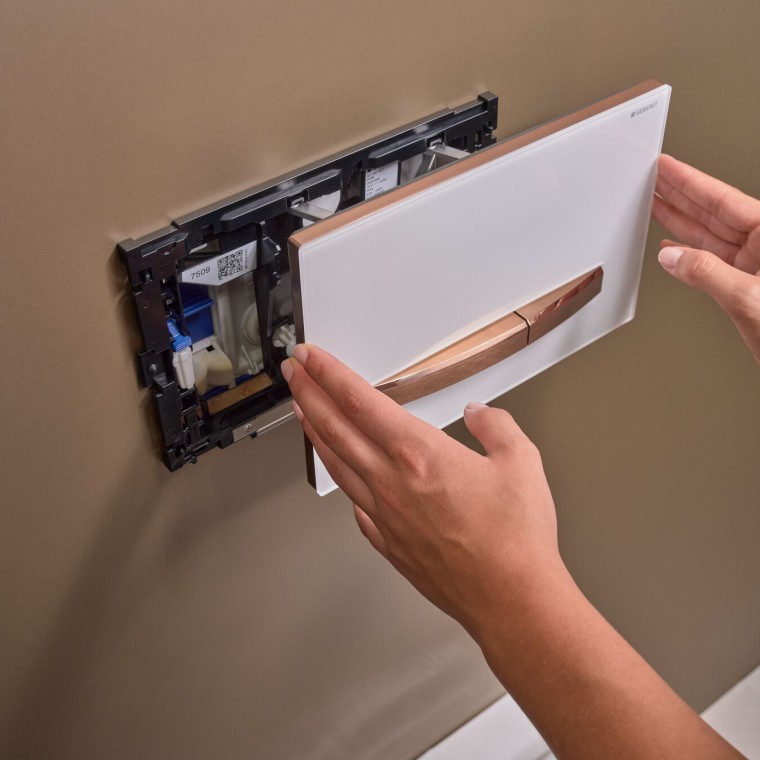

  • Thanks to a special mechanism, the actuator plate can be opened with a flick of the wrist, giving easy access for replacing consumables.
  • The insert for in-cistern blocks is located in an easily accessible position behind the actuator plate.

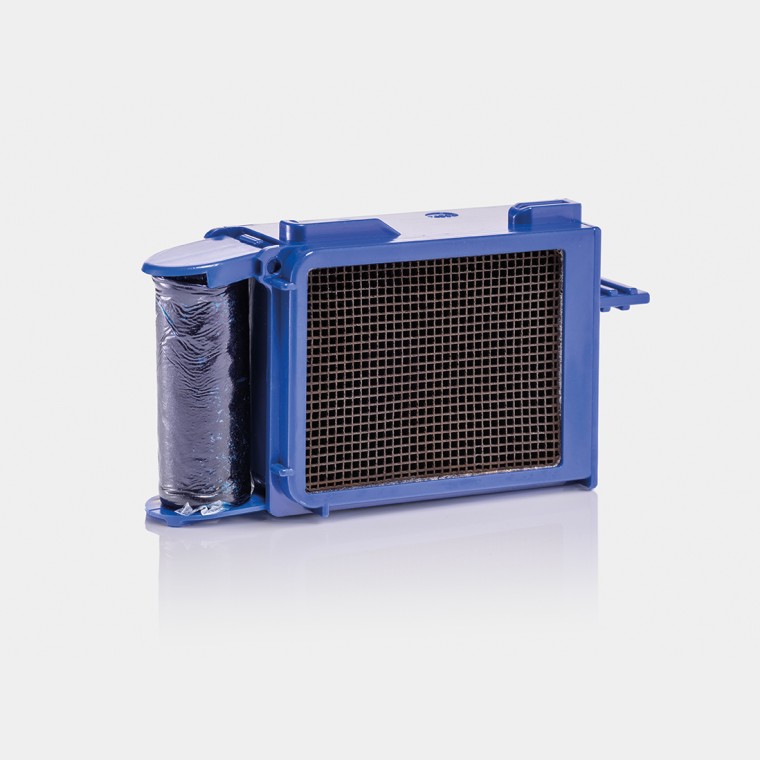

  • The ceramic honeycomb filter is also easy to access and can be replaced by the end user.
  • The intensity of the orientation light and the length of time it remains on can be personalised by the end user via app.

Both the ceramic honeycomb filter and the in-cistern blocks can be ordered via the Geberit WebShop or from your plumber at any time.

Everything with a system – Geberit flushing systems

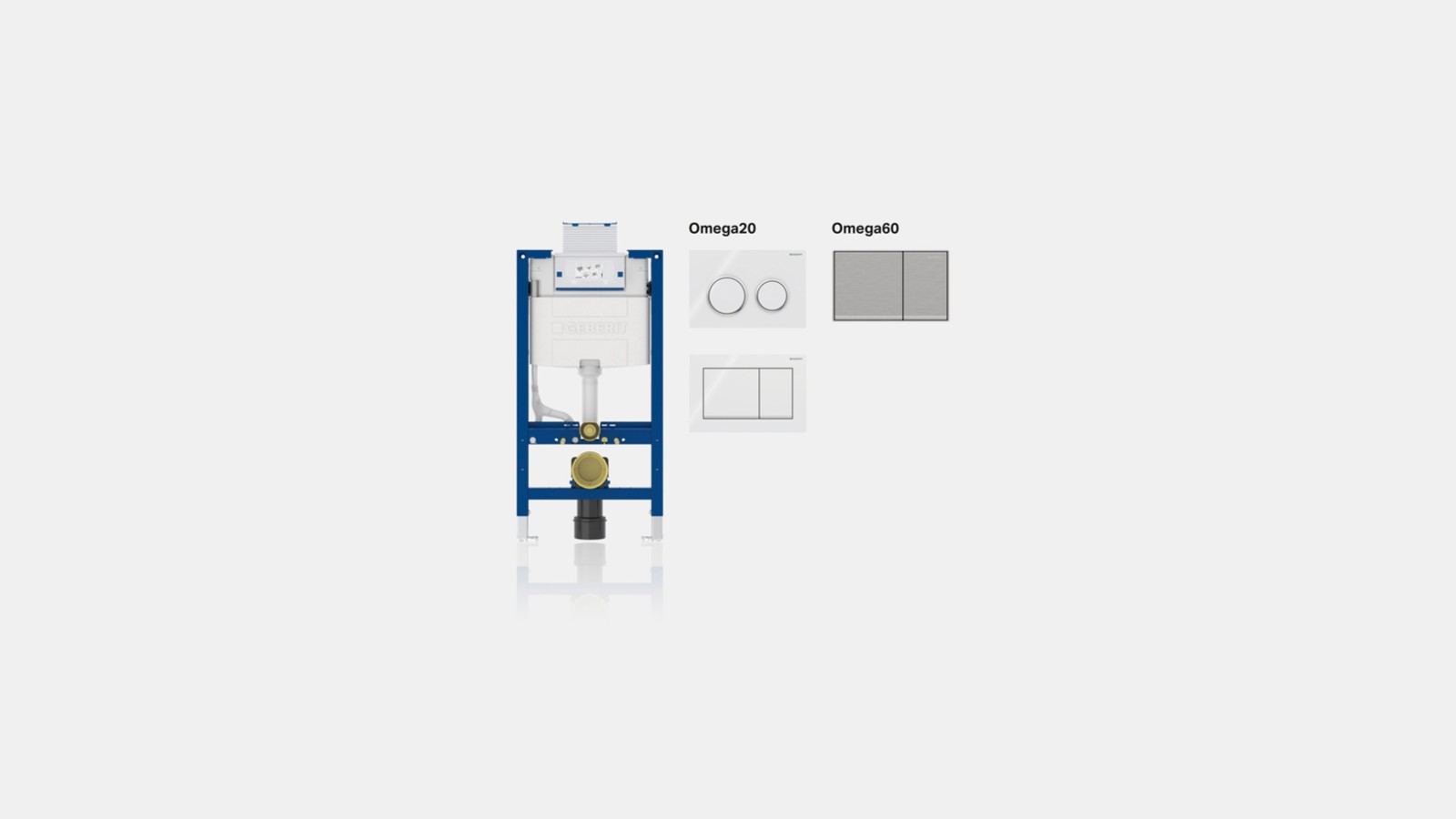

Geberit provides reliable, discreet behind-the-wall solutions that ensure perfect functionality, outstanding convenience and maximum durability. The actuator plates are the only part of the concealed cistern the user can see. A variety of flushing systems are available, making it possible to find the right product for a particular application or special structural conditions. To make it easier to match up the Geberit actuator plates with the appropriate cisterns, they are each given a “family name” that they share with the cisterns: Sigma, Omega or Delta.

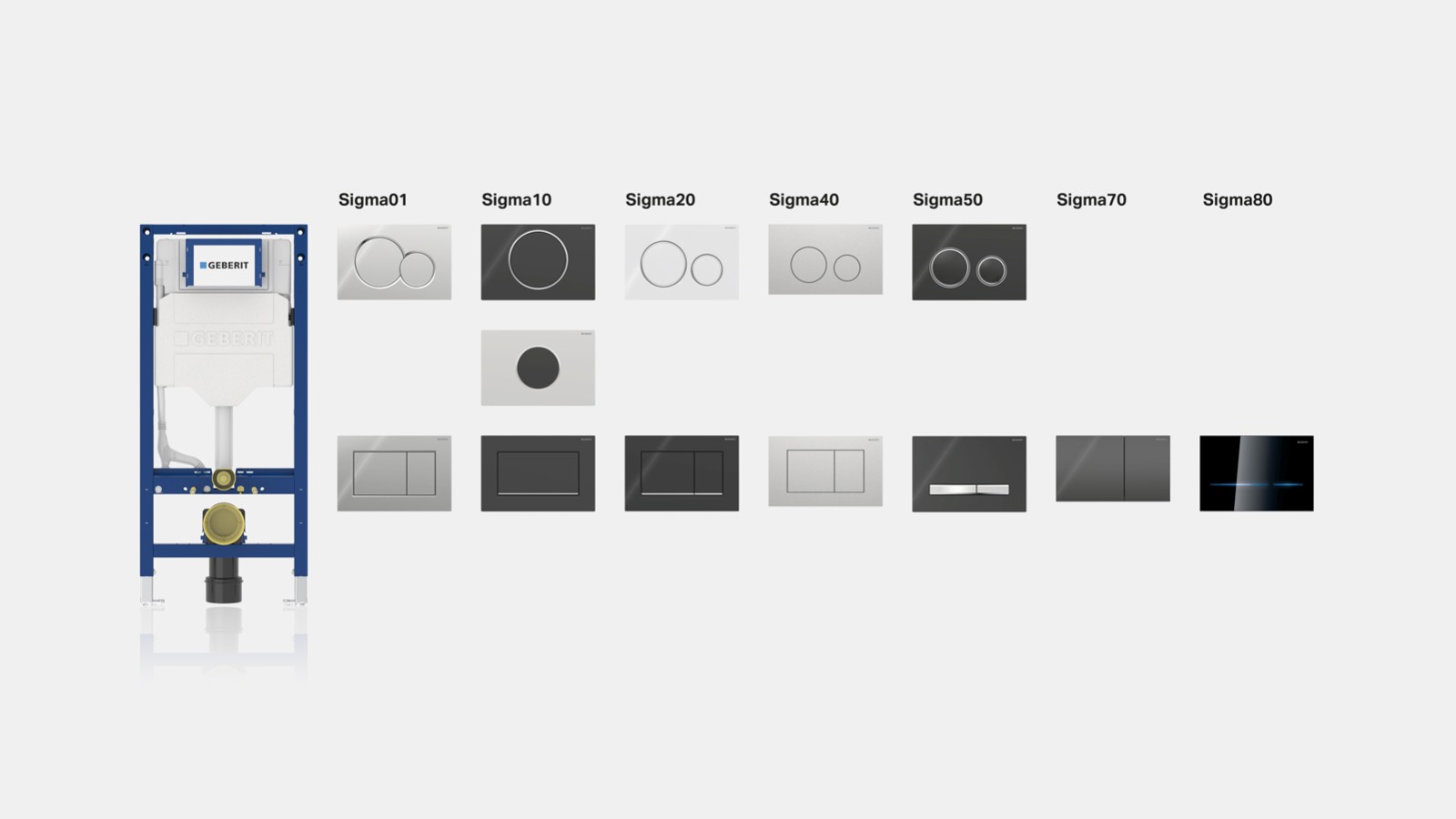

Geberit Sigma flushing system

Geberit Sigma cisterns and actuator plates

Videos

Geberit Duofresh Swivel Arm

The Geberit flush plate can be moved away easily.

Choice is important

Let yourself be inspired by the many possibilities and models for flush plates.

Installating Duofresh

Find out about the installation of the Geberit odor extraction system.

All technical Information about Geberit Flush Plates and Controls can be found in the product Catalogue
