Geberit ConnectAlways the perfect setting

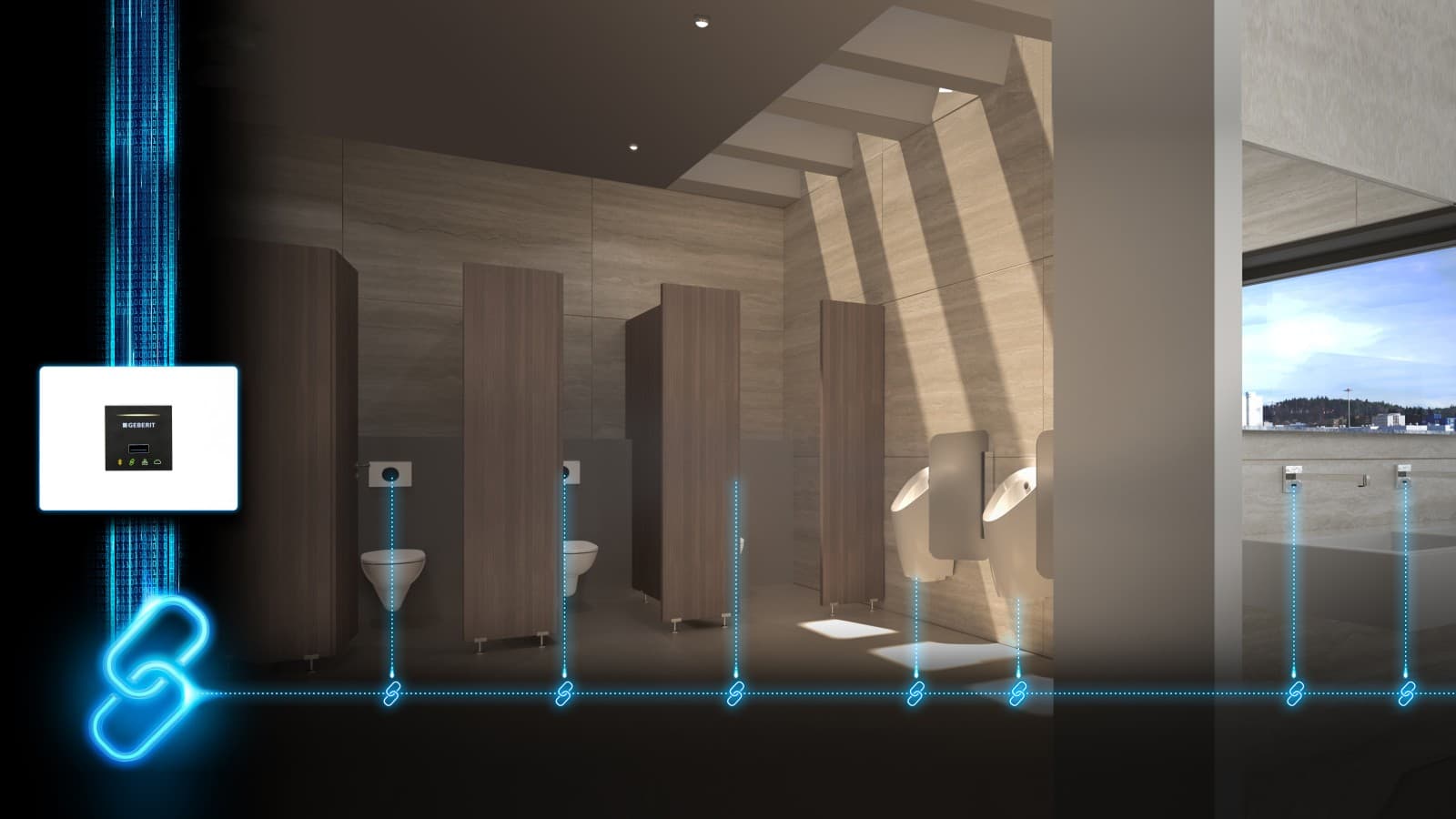

Easily network sanitary appliances

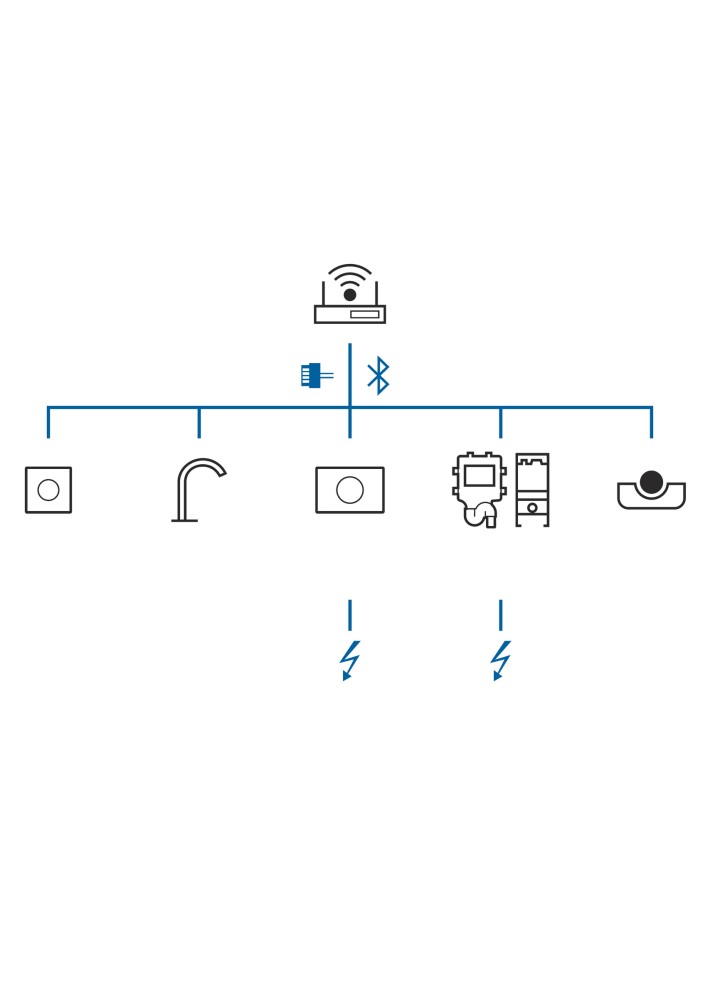

Geberit Connect is a future-oriented platform for networking sanitary appliances and offers the possibility of holistic and economical operation of sanitary installations. Numerous Geberit products can be integrated into the networked system. This means it can either be connected to a building automation system or controlled centrally via the Geberit Gateway.
Applications for networked sanitary rooms
- Facility Management: With the transparency of the data, processes can be simplified and operating costs reduced.

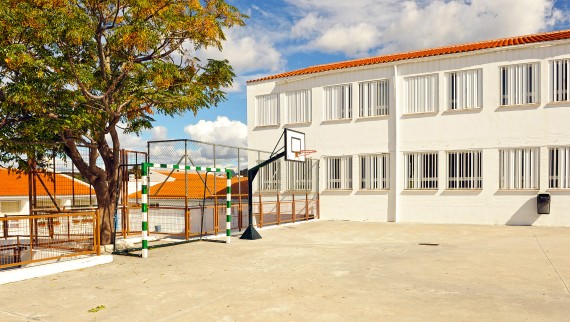

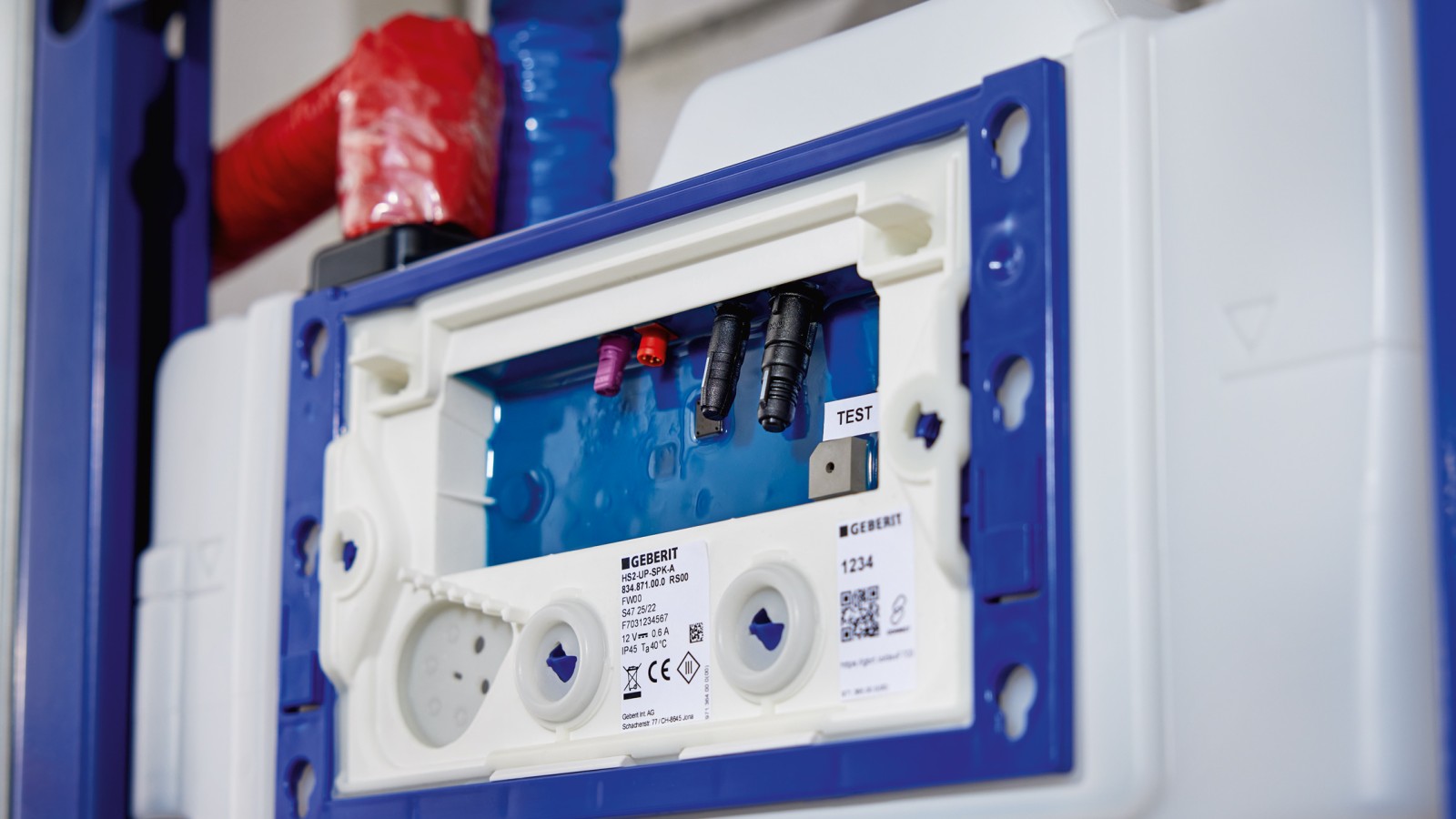

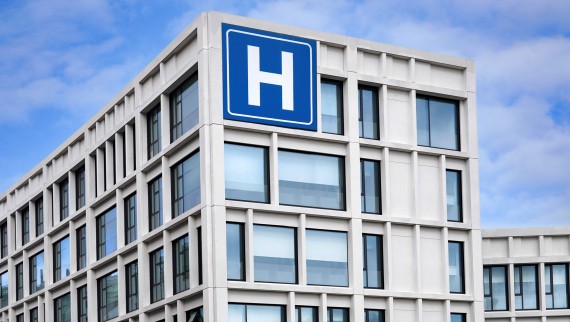

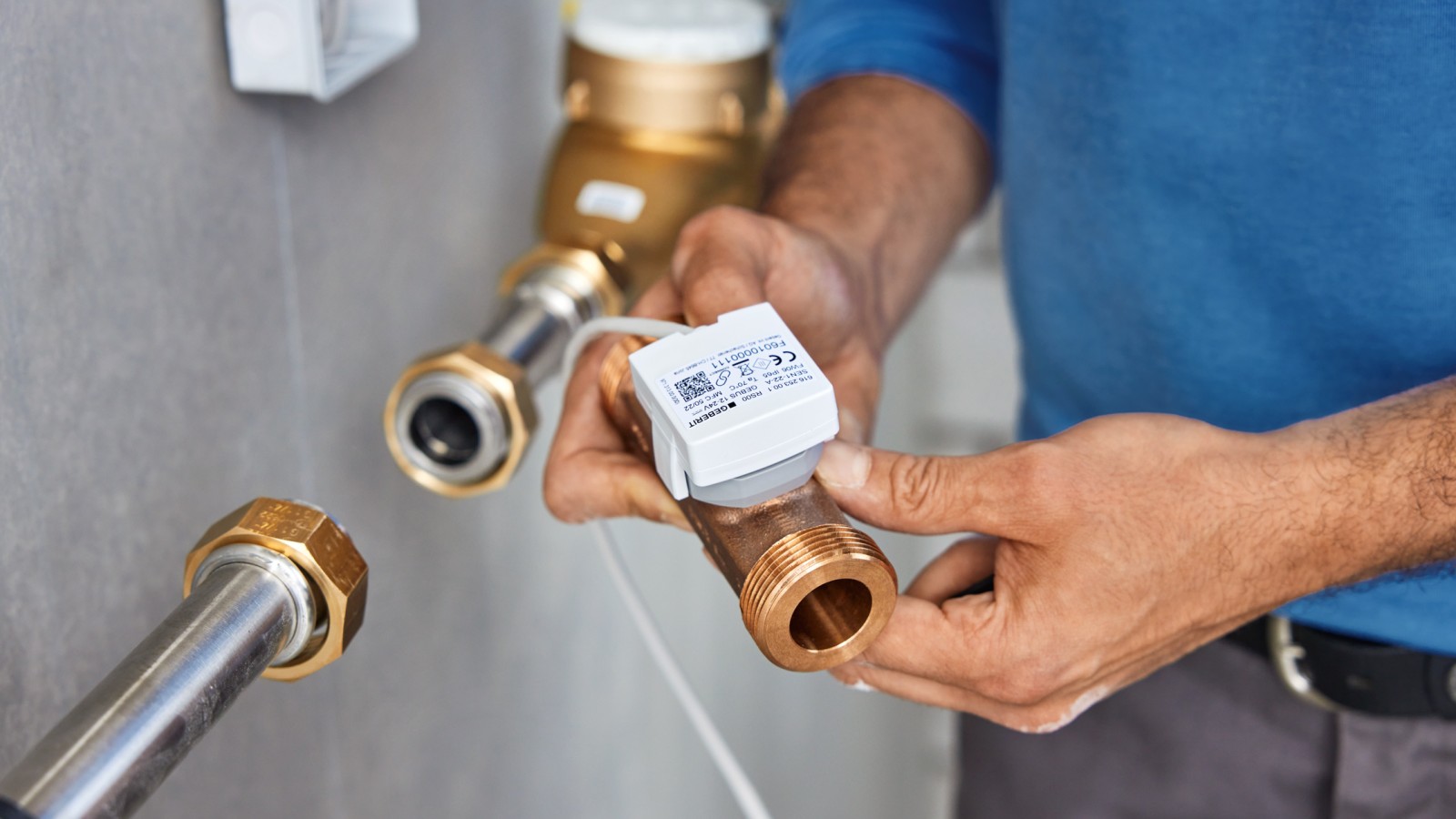

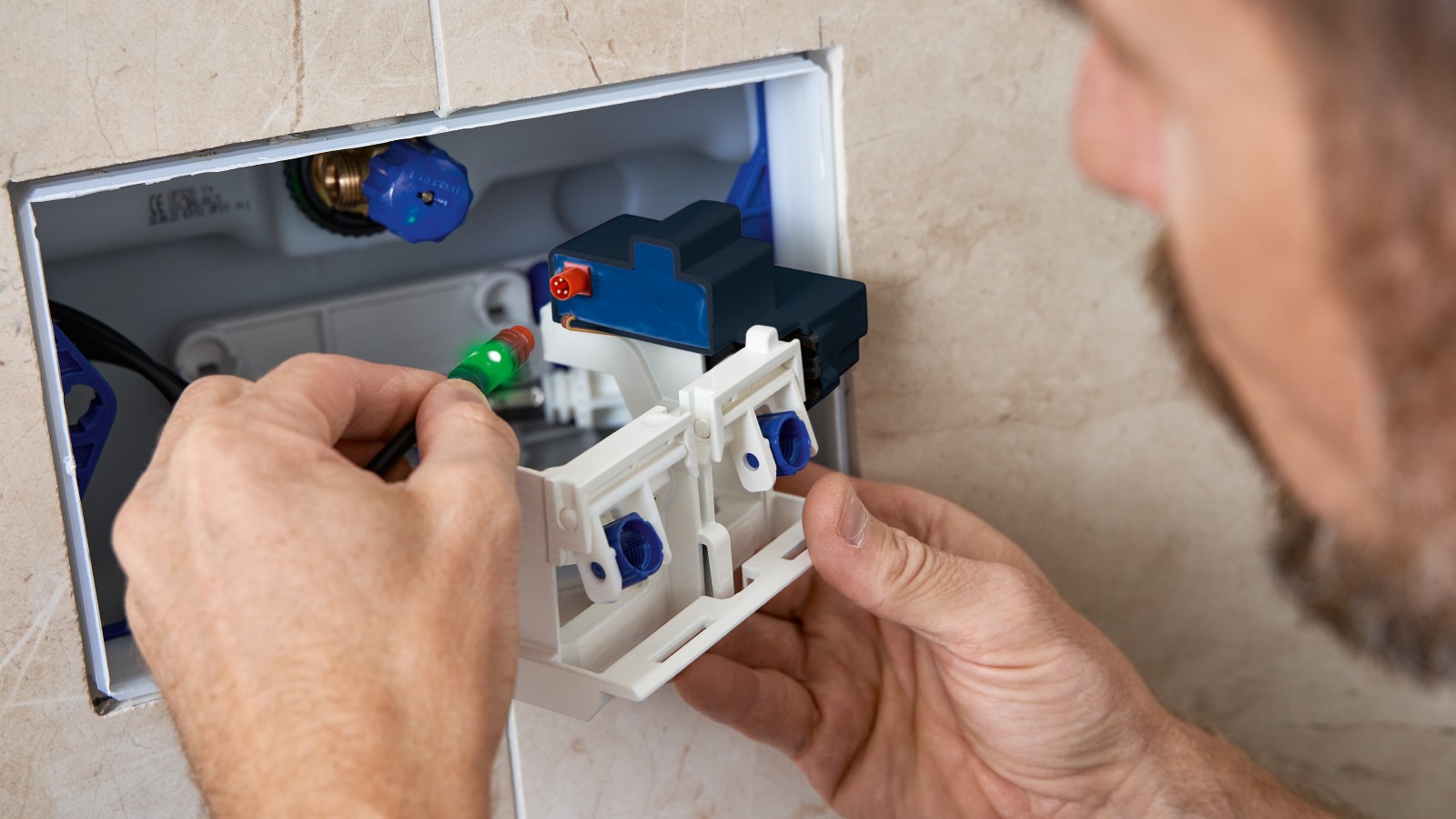

- Drinking water hygiene: Networking with the Geberit hygiene system in order to optimize and prove proper operation.
Simple networking of sanitary appliances
Geberit Connect is a future-oriented platform for networking sanitary appliances that allows users to benefit from comprehensive and economical operation of their sanitary installations. An extensive range of Geberit products can be integrated into the networked system. This means it can either be connected to a building automation system or controlled centrally via Geberit Gateway.
Applications for networked sanitary facilities
- Facility management: The transparency of the data makes it possible to simplify processes and reduce operating costs.
- Drinking water hygiene: Networking with the Geberit Hygiene System helps to improve its operation and provide evidence of proper functionality.
Why choose Geberit Connect?Your benefits
With Geberit Connect, your sanitary rooms can be connected to a building automation system.
The level of connectivity can be organised flexibly. Retrofitting of end devices and future expansions of the device landscape are also possible.
The system can be used for a long period of time thanks to the quality and long-term availability of the spare parts.
All system components come from a single source and are based on existing standards. The system products are coordinated with each other.

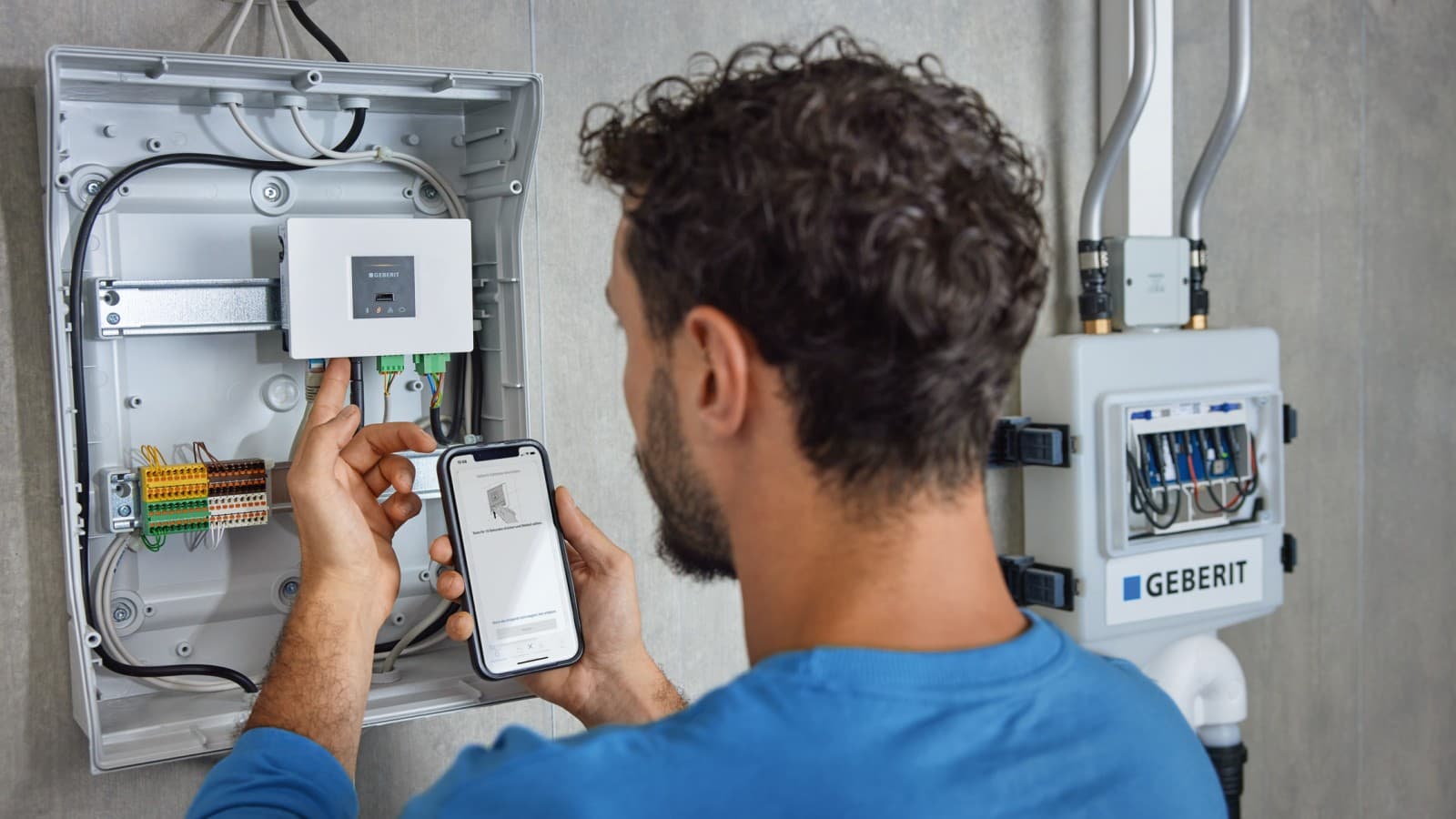

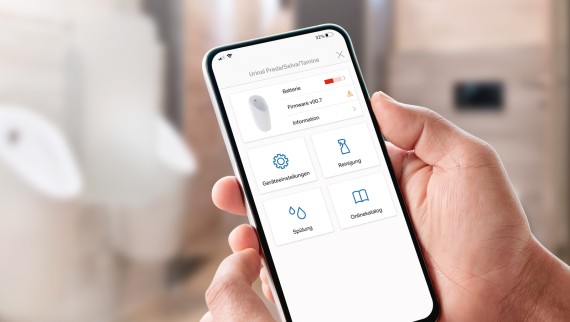

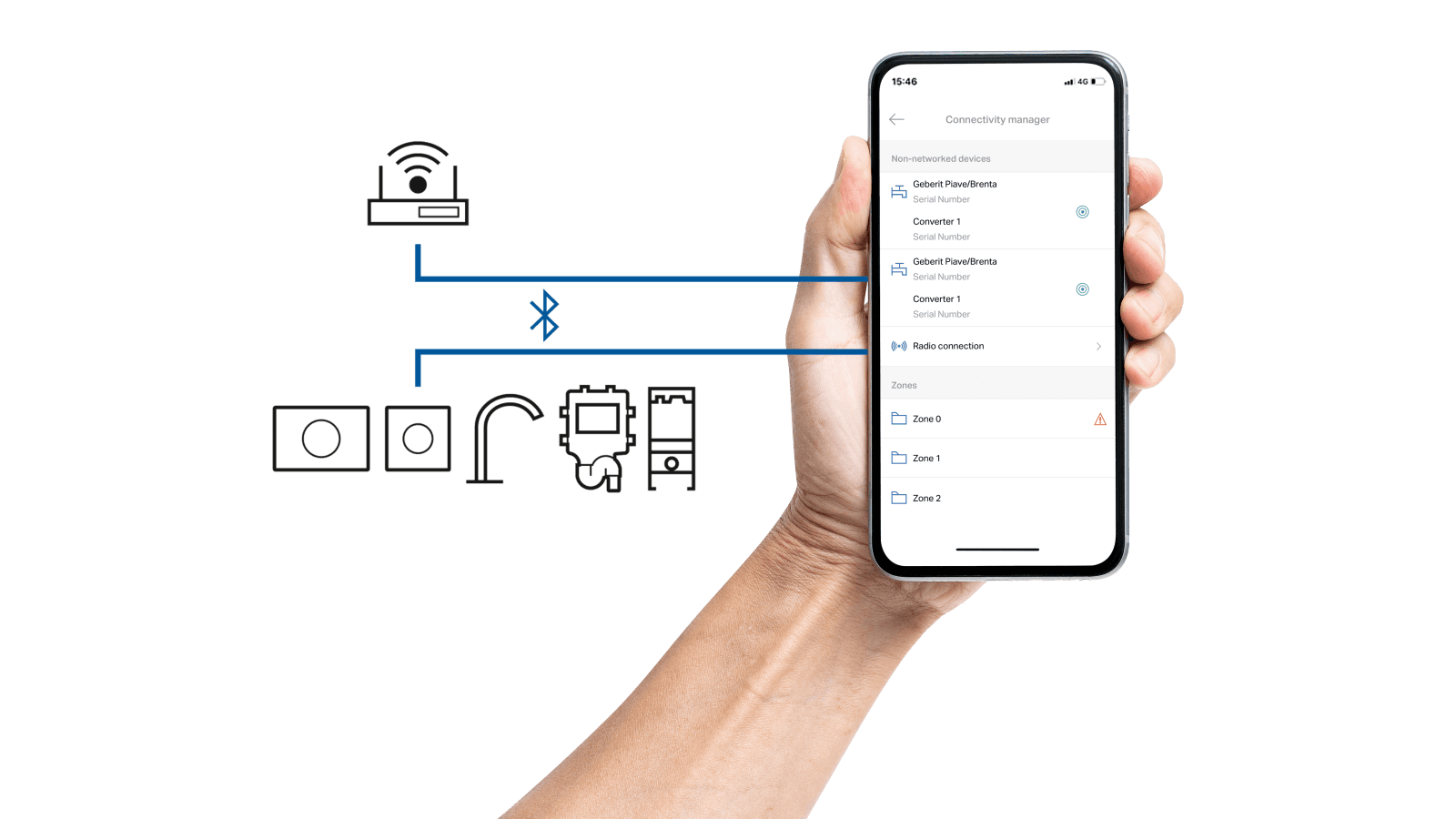

The Geberit Control app makes everyday tasks easier for facility managers, service technicians and plumbers when it comes to commissioning and operation.
Sanitary rooms can be networked via GEBUS in new buildings and with Bluetooth® for renovations.
Geberit Gateway and the end devices feature password protection so that only authorised users can access the devices.
All components required for networking are fully integrated into the Geberit system world and can therefore be installed easily, safely and quickly
Always know what's going on
Diverse application possibilities
- Facility Management: With transparency, processes can be simplified and operating costs reduced.
- Drinking water hygiene: Networking with the Geberit hygiene system leads to an optimization of processes and resources.
The advanatges at a glance
- Well connected: With Geberit Connect, the sanitary rooms can now also be connected to a building automation system.
- Connection into the future: Networking can be designed flexibly. The Geberit hygiene system was developed for new buildings and renovations. The subsequent installation of end devices and future expansion of the device landscape are also possible.
- Long availability: Thanks to the quality of Geberit products and the long-term availability of spare parts, the system can be used over a long period of time.
- Comprehensive system: All system components come from a single source and rely on existing standards. The system products are coordinated with each other.
- Easy to implement: The Geberit Control app makes commissioning and operation easier for facility managers, service technicians and plumbers.
- Security: Due to the password protection of the Geberit gateway and the end devices, only authorized users can access the devices.

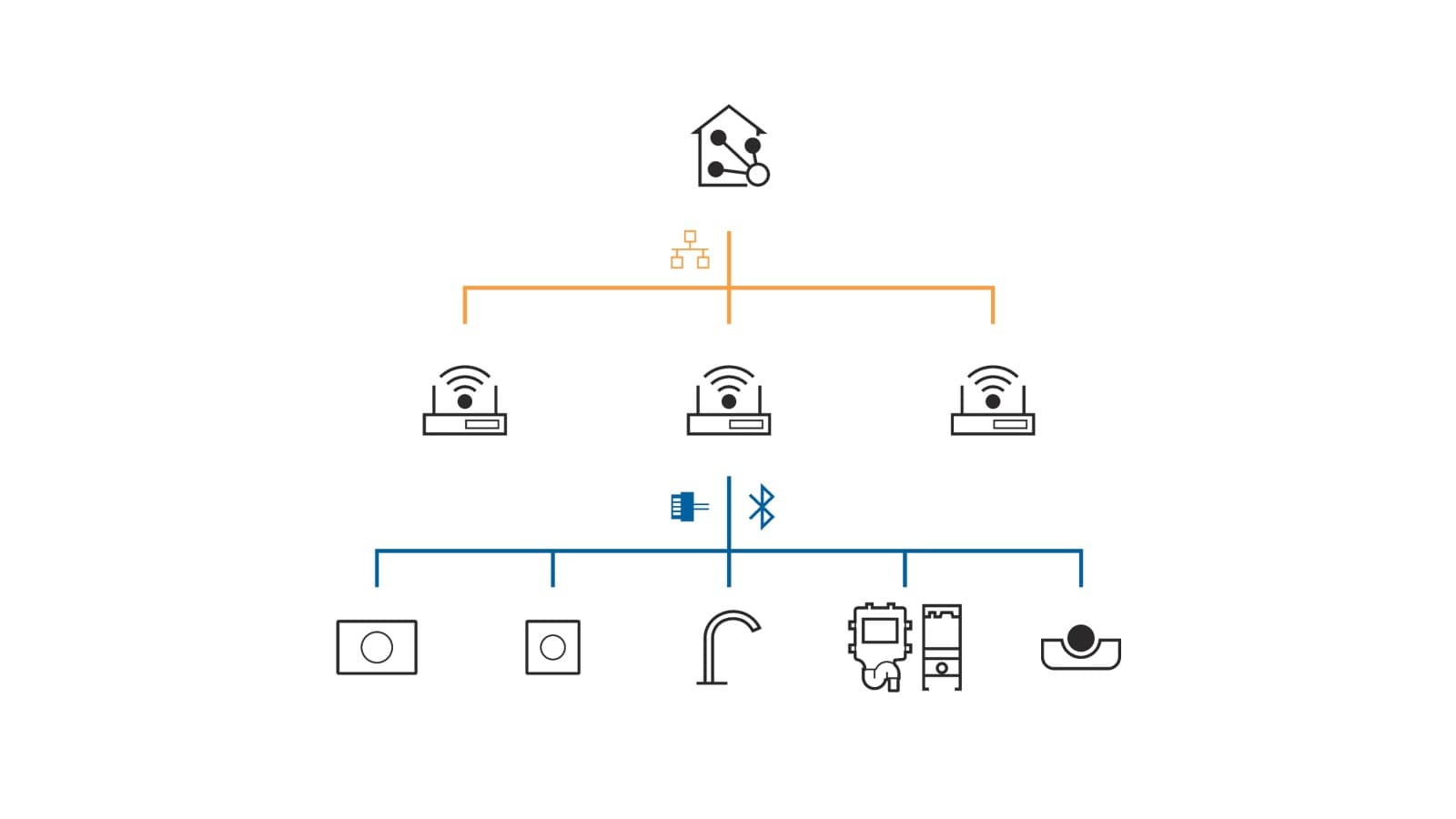

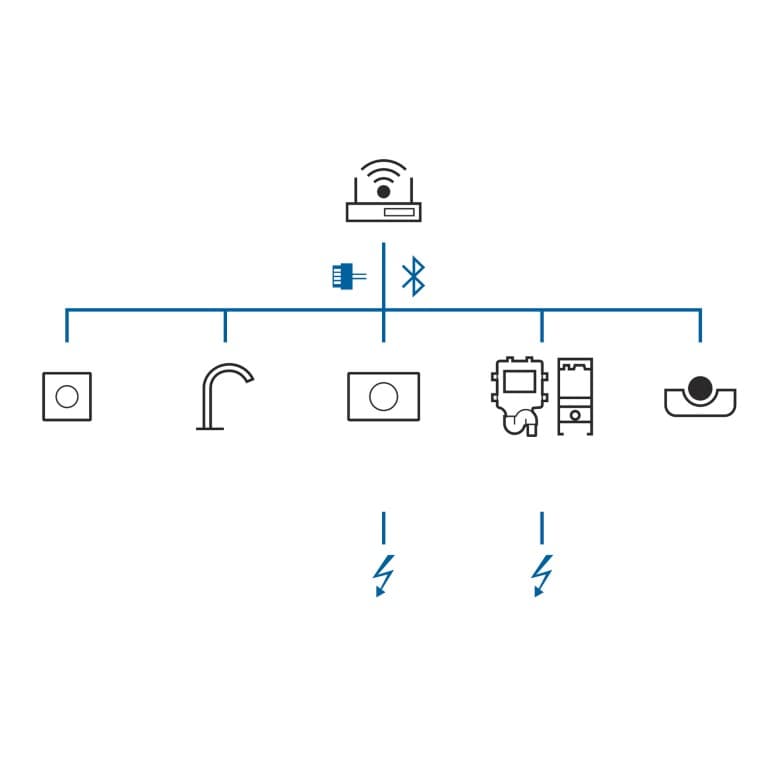

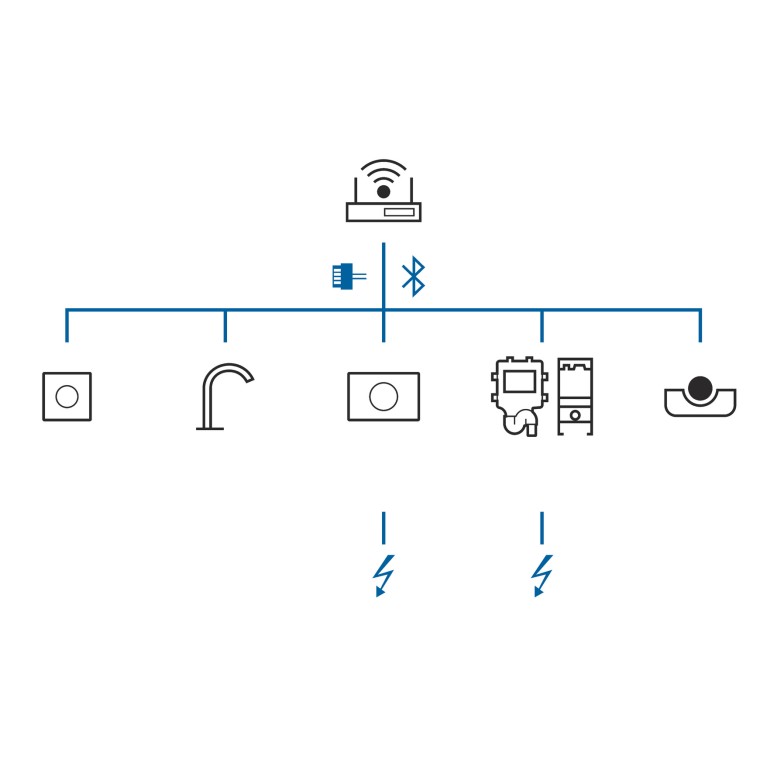

Connection to a building automation system
Transparent and secure
Geberit Connect is optimally tailored to the requirements of central, transparent and secure building management. Data points are available for the Geberit Gateway and all end devices for integration into a building automation system. Evaluating data and controlling functions are programmed directly via the system.
Connecting to a building automation system
Transparent and reliable
Geberit Connect is optimally matched to the requirements of a central, transparent and secure building management solution. Data points for integration into a building automation system are available for Geberit Gateway and all end devices. What’s more, when it comes to evaluating data and controlling functions, this can all be programmed directly via the system.
LAN connection

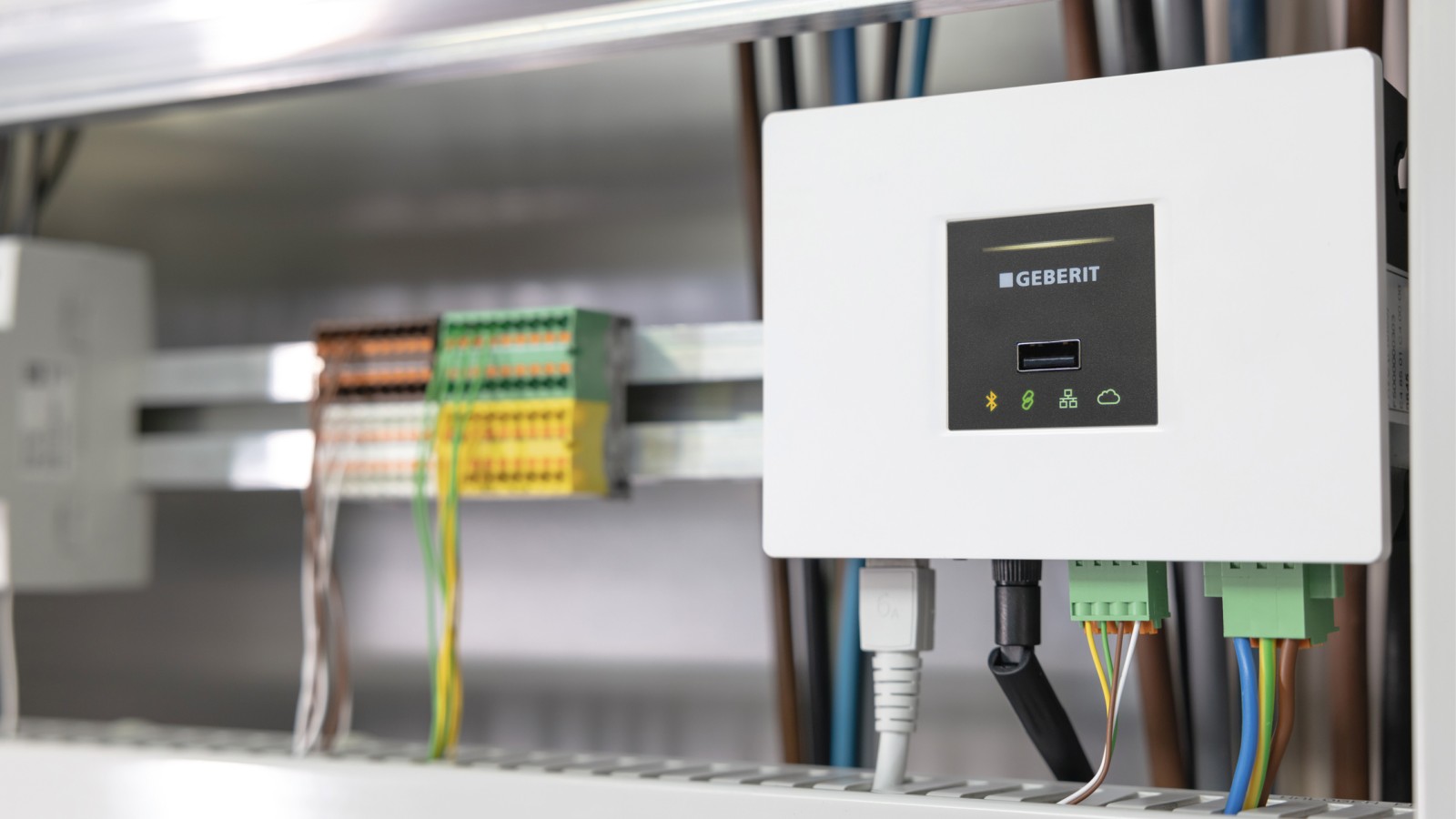

One or more gateways can be integrated into a building automation system via LAN.

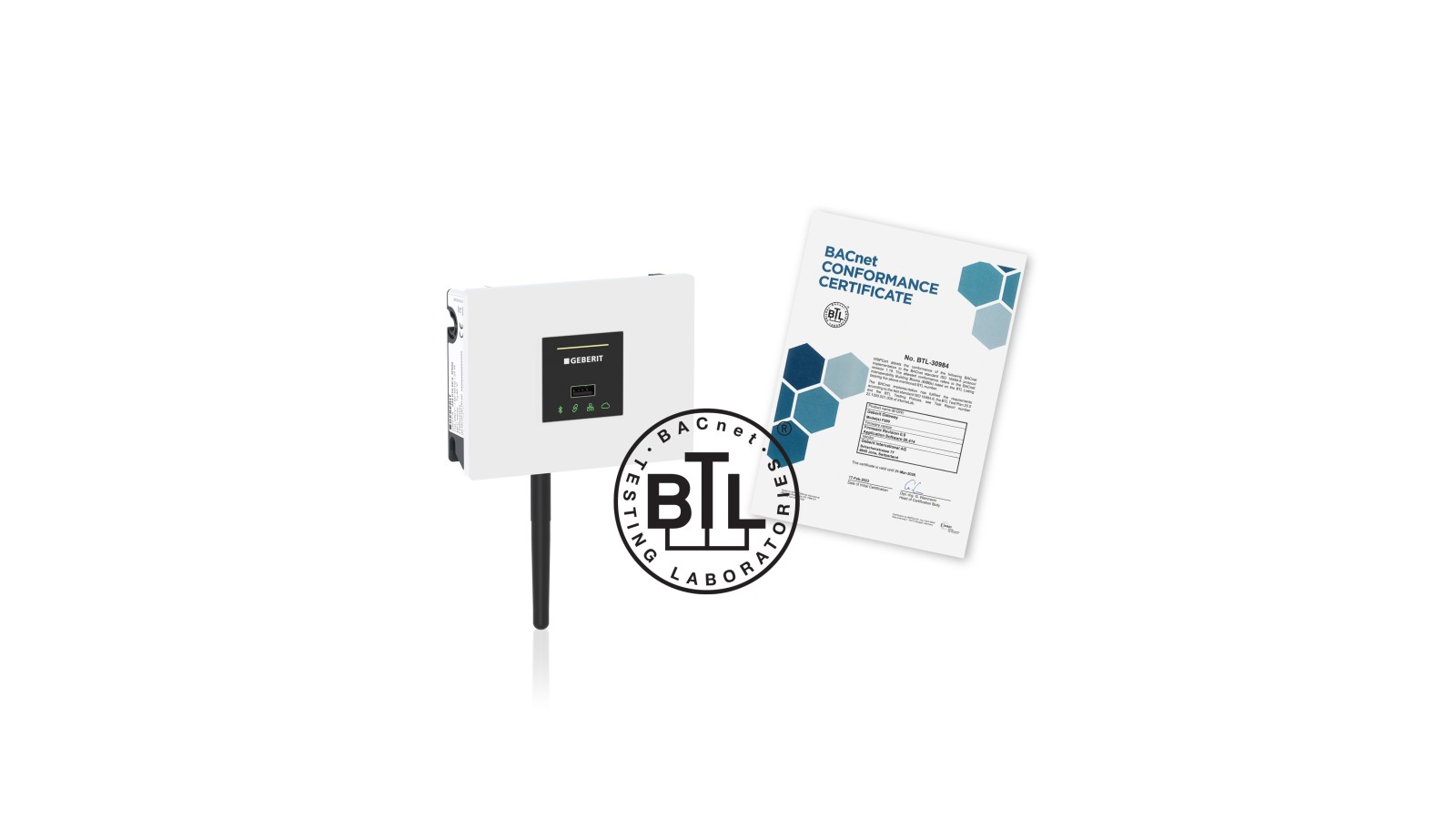

BACnet objects from Geberit are BTL-certified
To ensure seamless integration of the BACnet objects into the building automation system, it is essential for the BACnet objects to comply with the general standard. BACnetTesting Laboratories (BTL)tests this for conformity and interoperability in accordance with the industry standard test package.
The use of BTL-certified products helps to minimise the integration time and costs in a building automation system. They also provide a solid basis for future system improvements and enhancements.
The Geberit Gateway BACnet interface has been certified by BTL.
Link to Geberit Gateway in the BTL list of tested products
BACnet objects for integration into the building automation system
An EDE (Engineering Data Exchange) file is required for integration into a building automation system via BACnet/IP. The EDE file contains all BACnet objects of Geberit Gateway and the assigned end devices, which are grouped by zone. The EDE file is generated after commissioning and can be downloaded in CSV format via the Geberit Control app and Geberit Gateway.
The following tables show an overview of the available BACnet objects for each end device that are available in the EDE file. More detailed descriptions complete with object names, type and instance can be found in thesystem manual.
BACnet objects of connected end devicesOverview
BACnet objects for information
BACnet objects for the status of the end device
BACnet objects for controlling the end devices
Do you have any questions?Contact us.
System components for connectivity
Planning, installation and commissioningEverything you need to know about operating the connected system

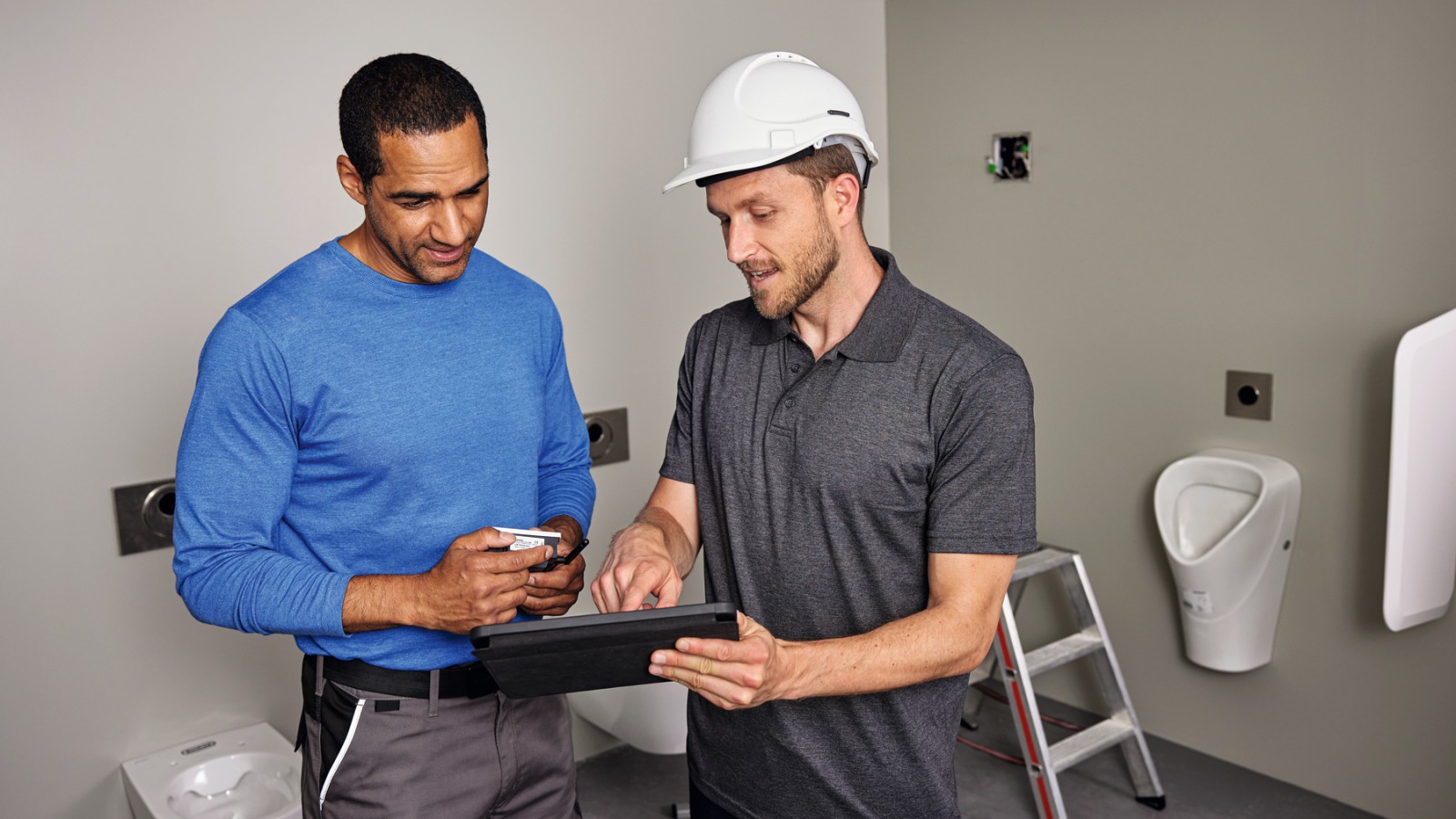

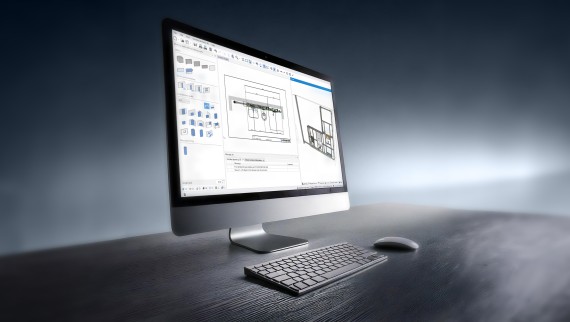

Straightforward planning

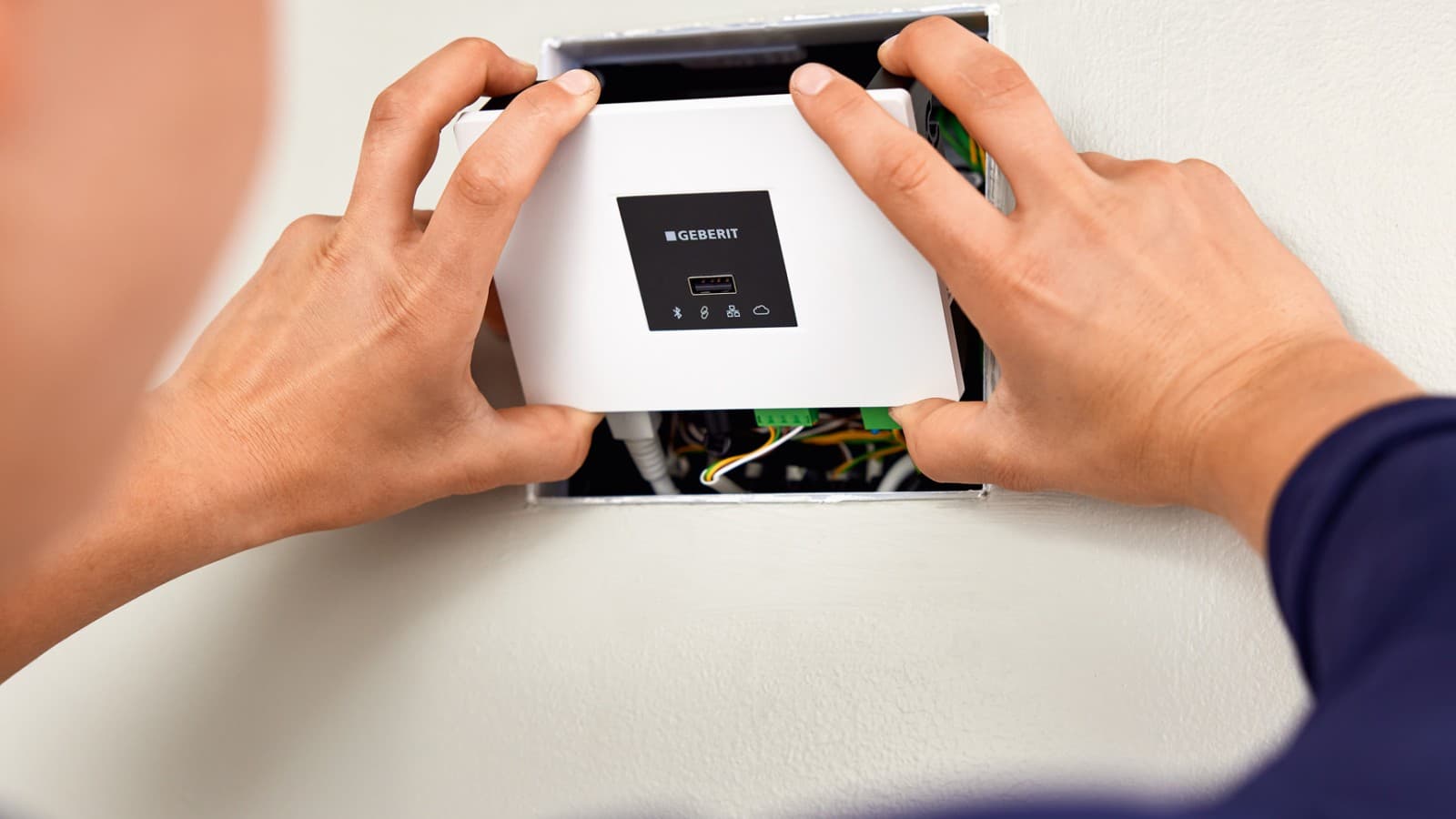

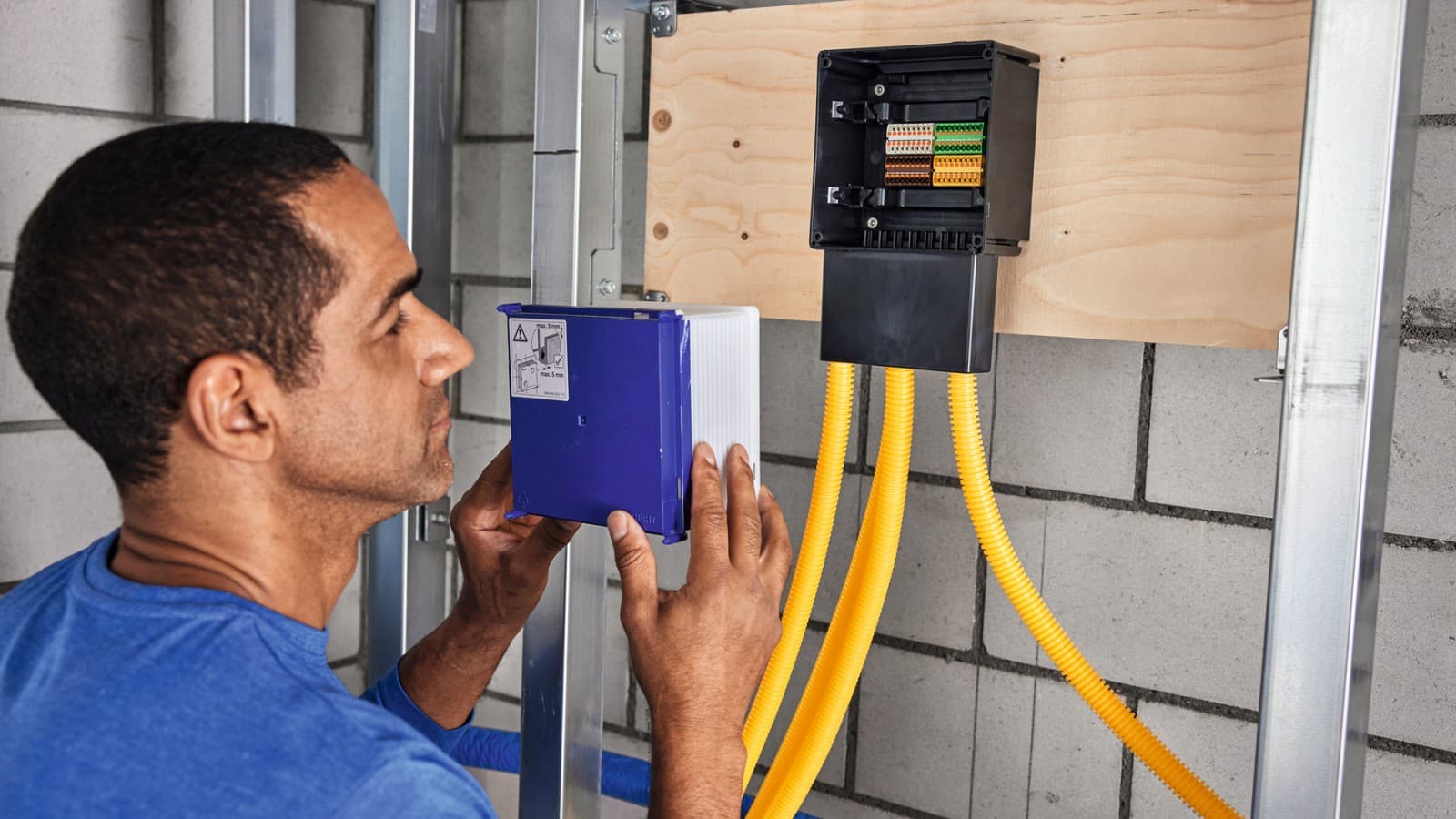

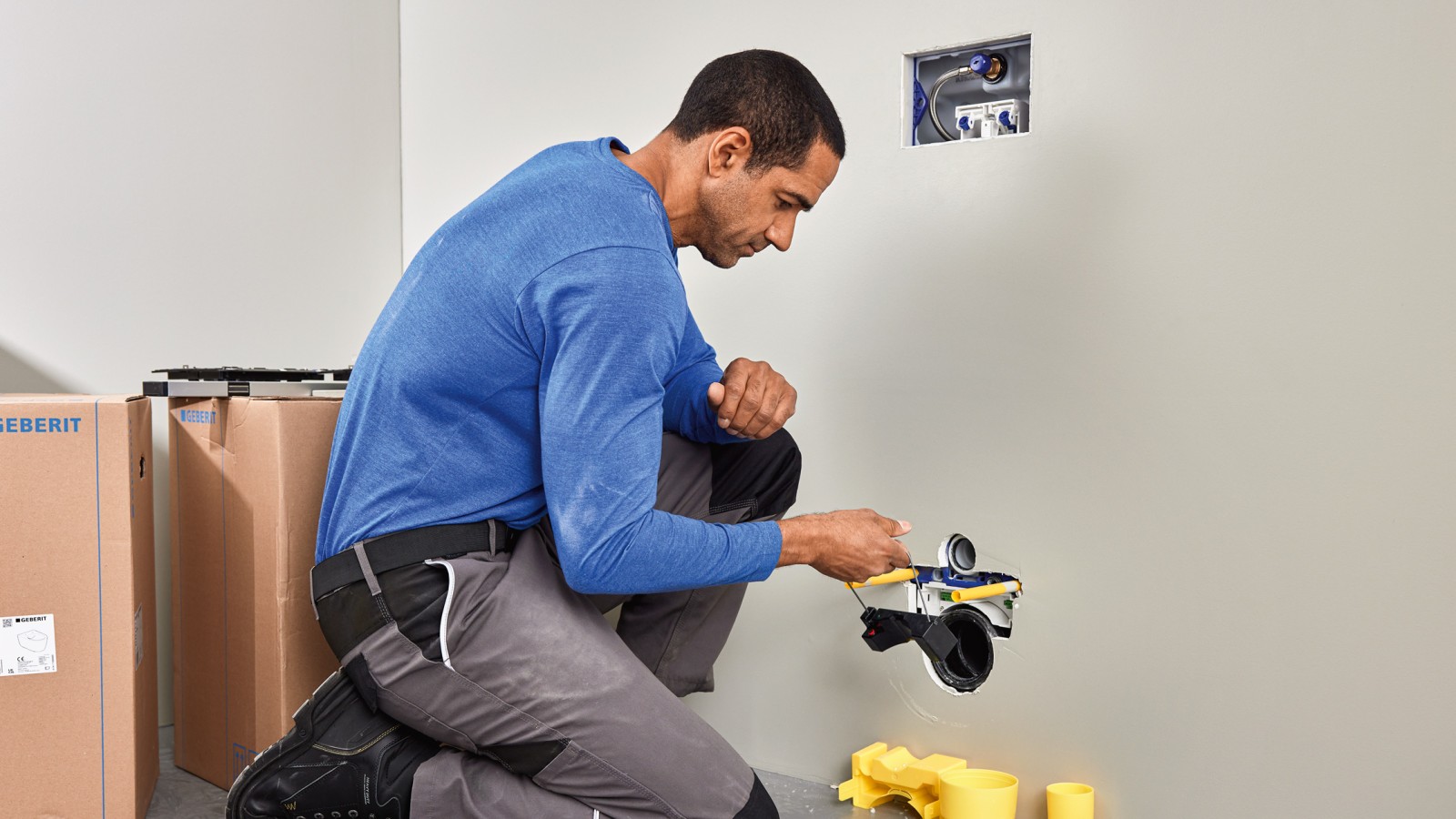

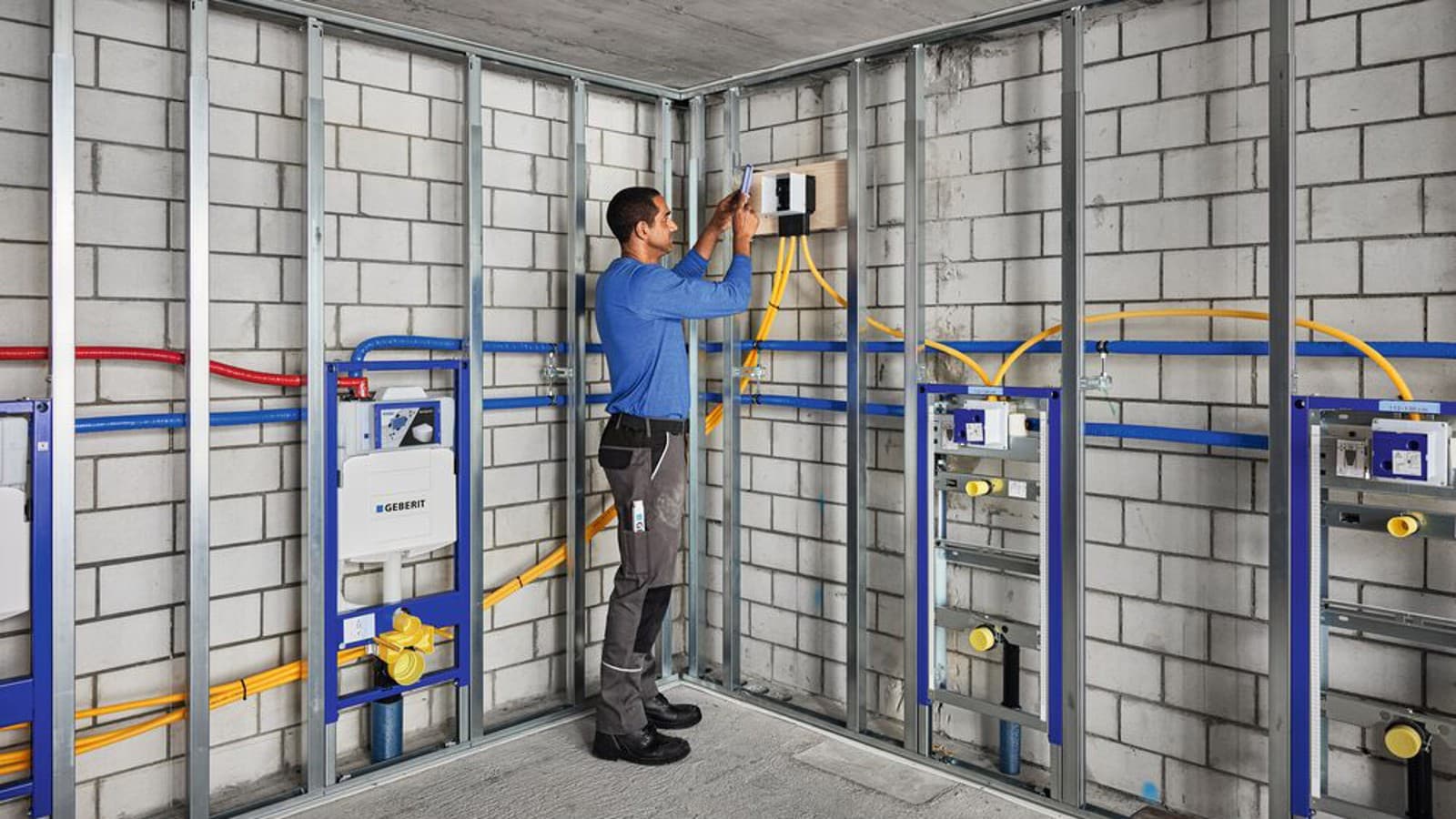

Familiar installation

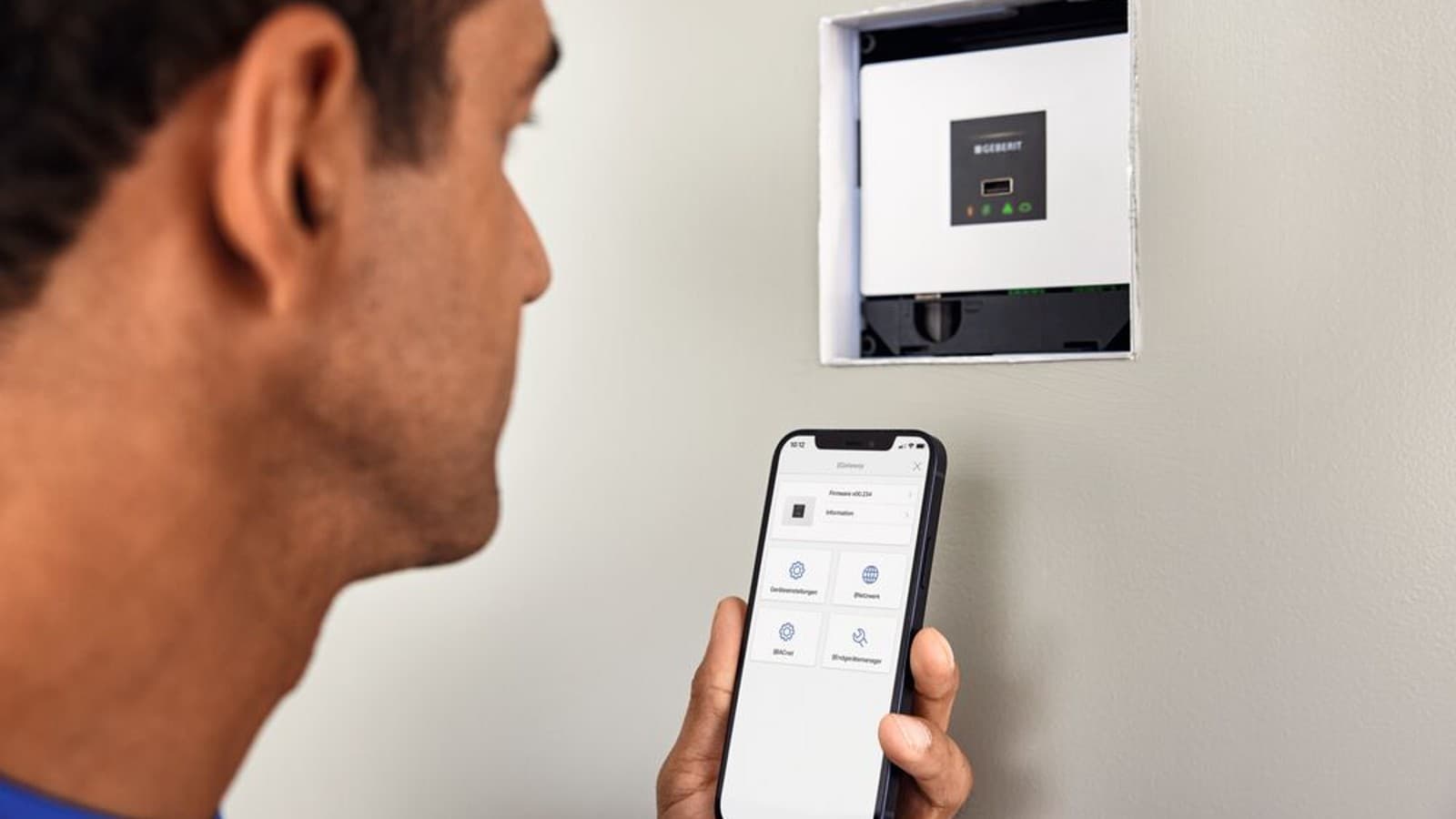

Commissioning

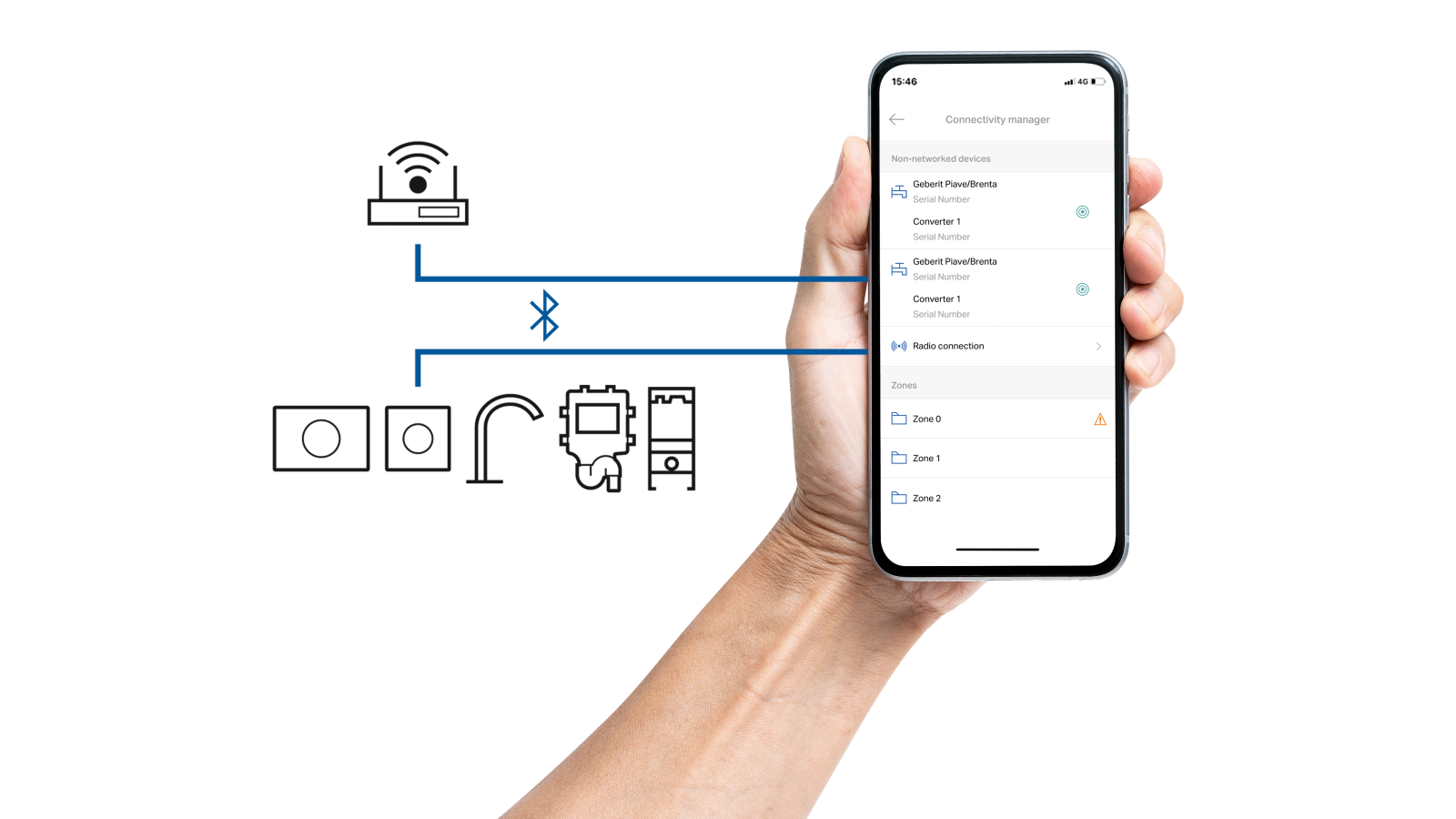

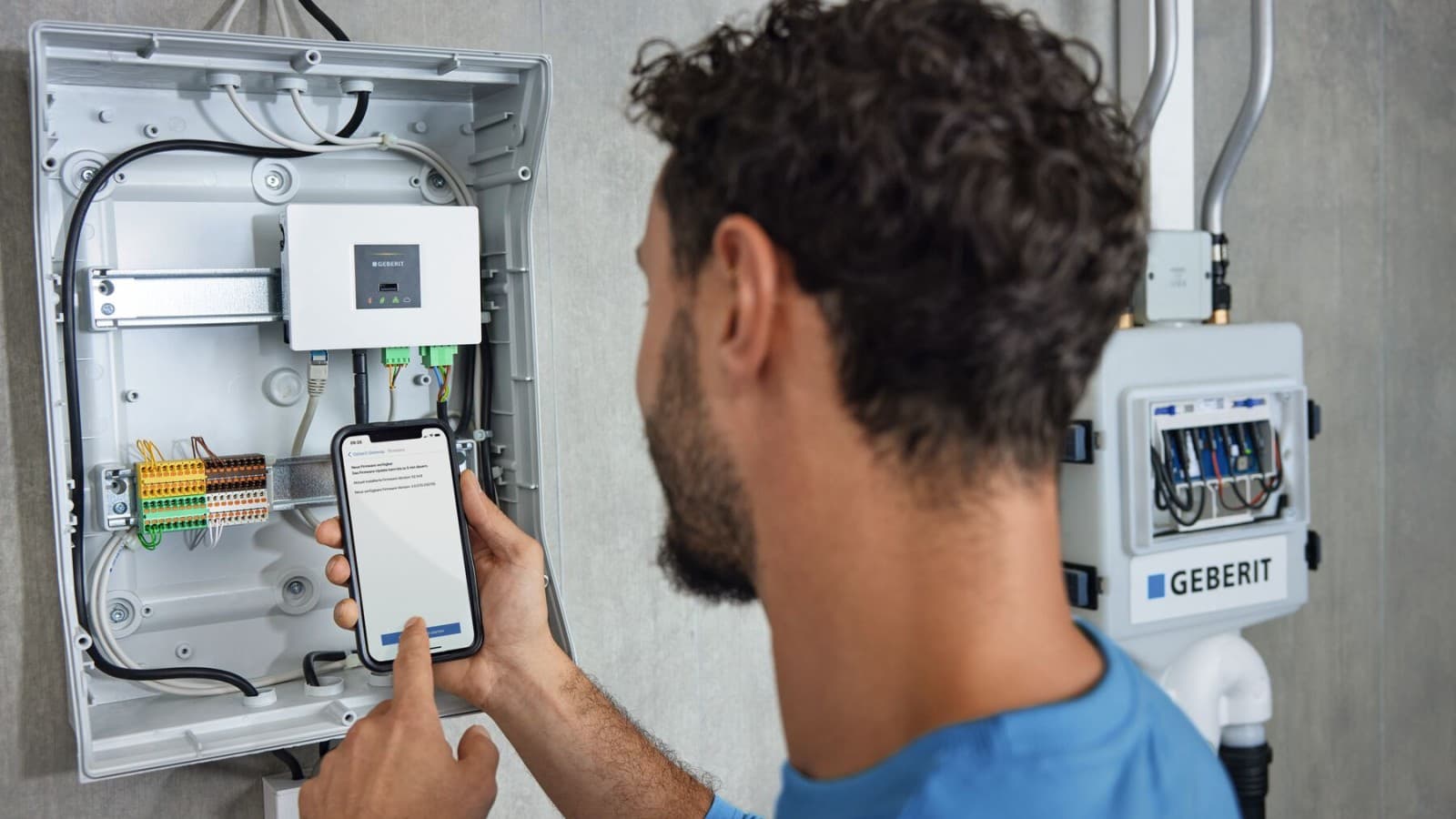

Operation

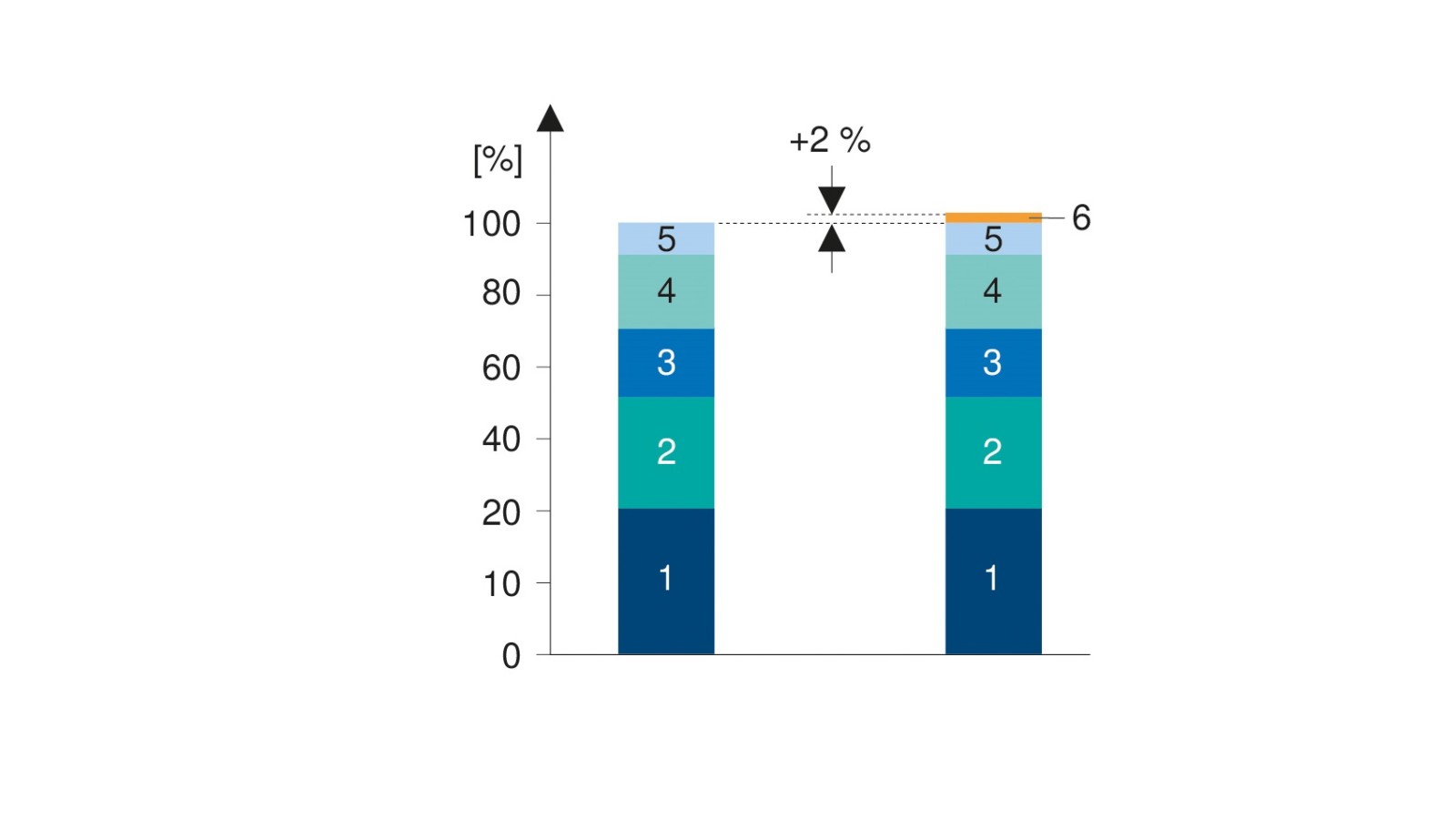

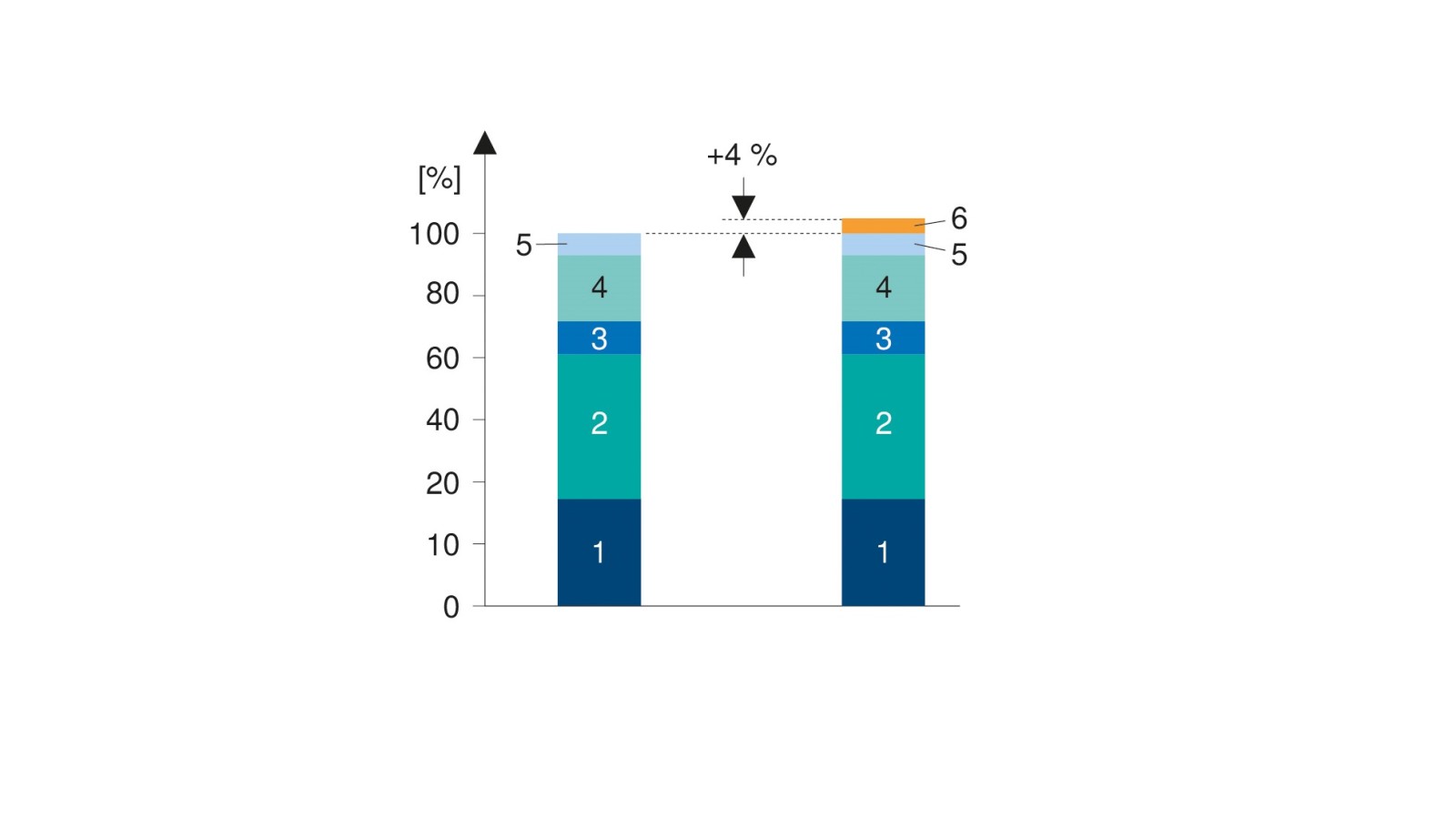

Additional investment for networking a sanitary roomMinimal extra effort for a better future

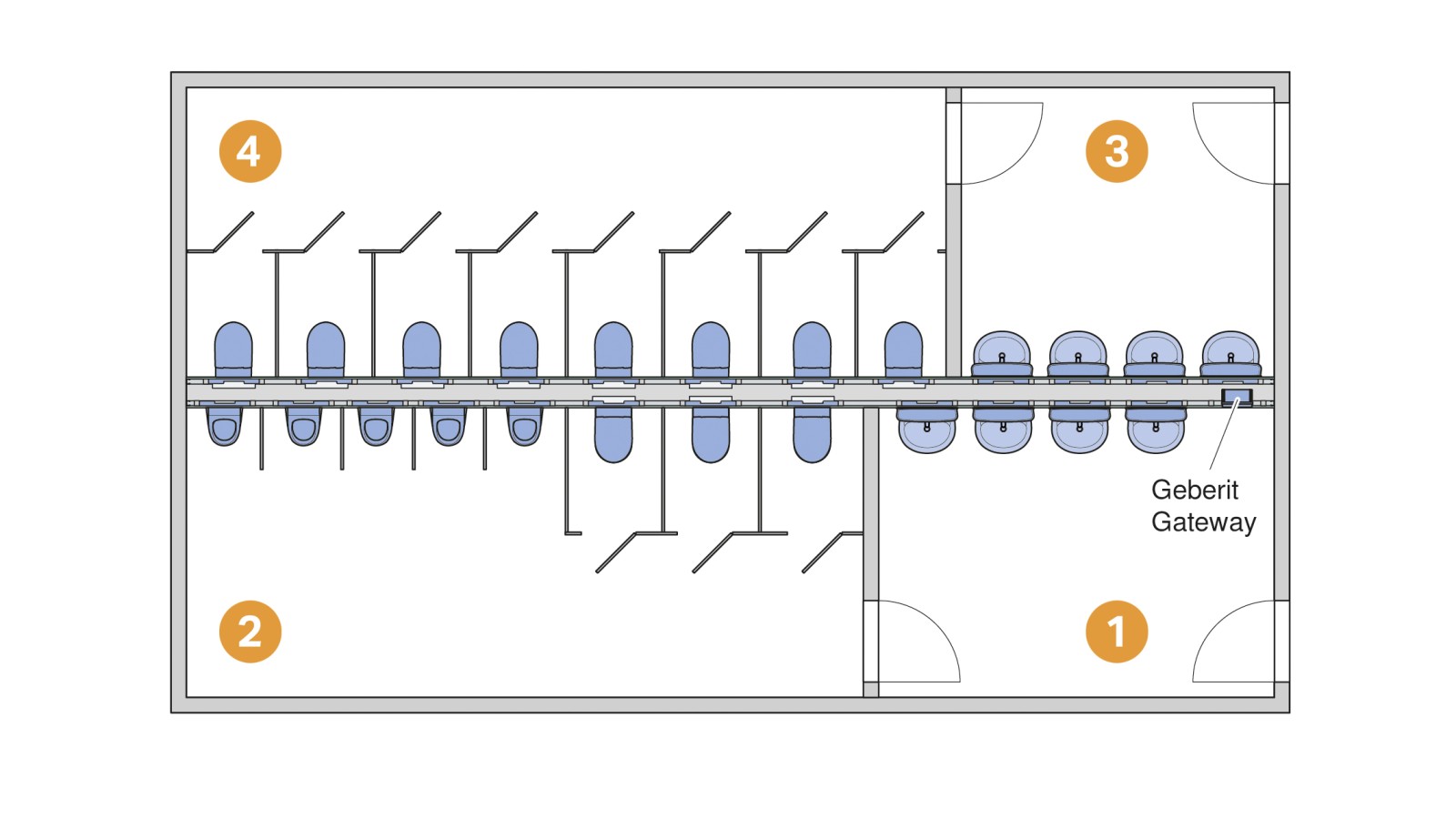

Practical example 1: Wired networking

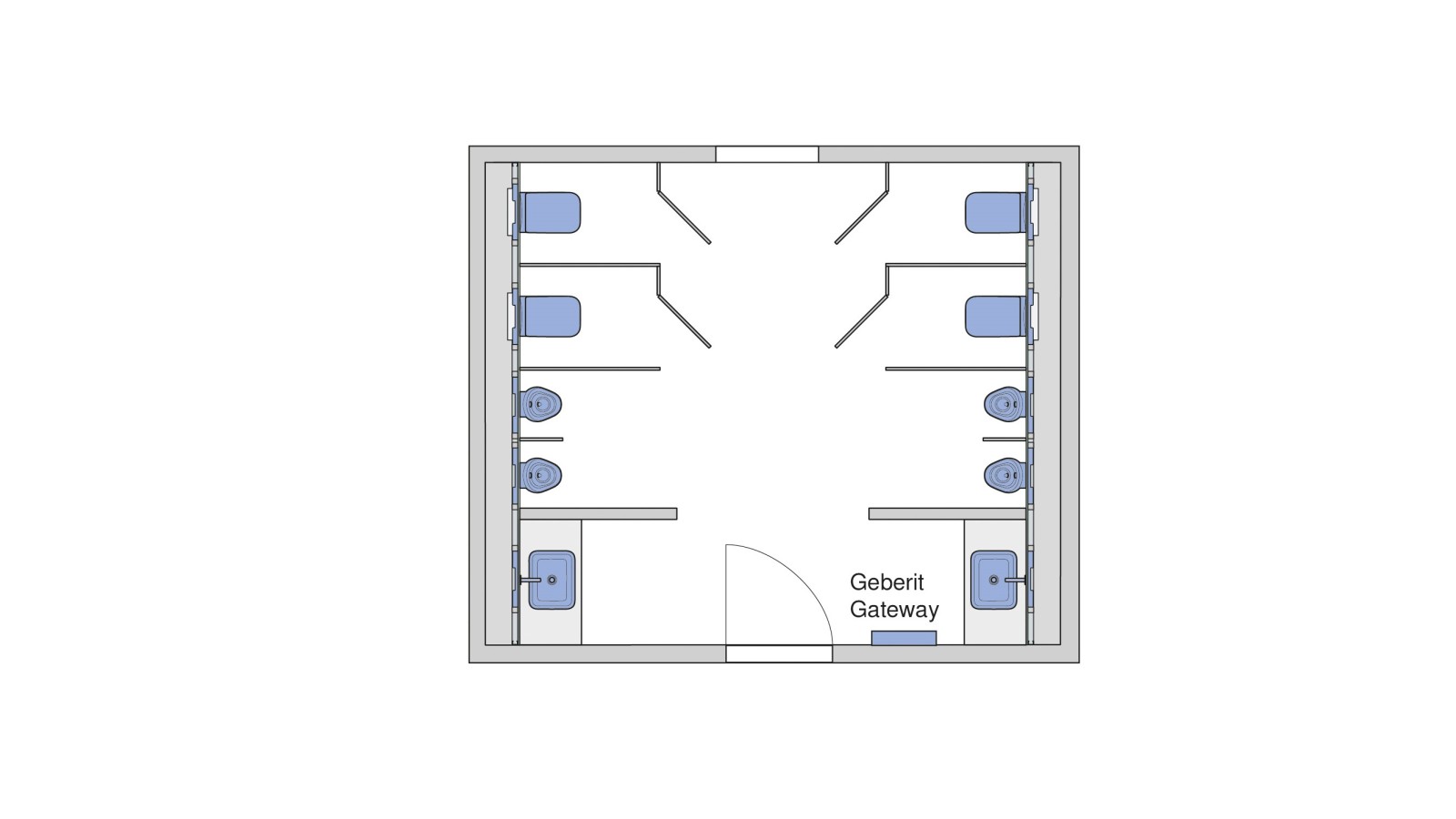

Practical example 2: Wireless networking
All technical information relating to the Geberit Connect productscan be found in our product catalogue

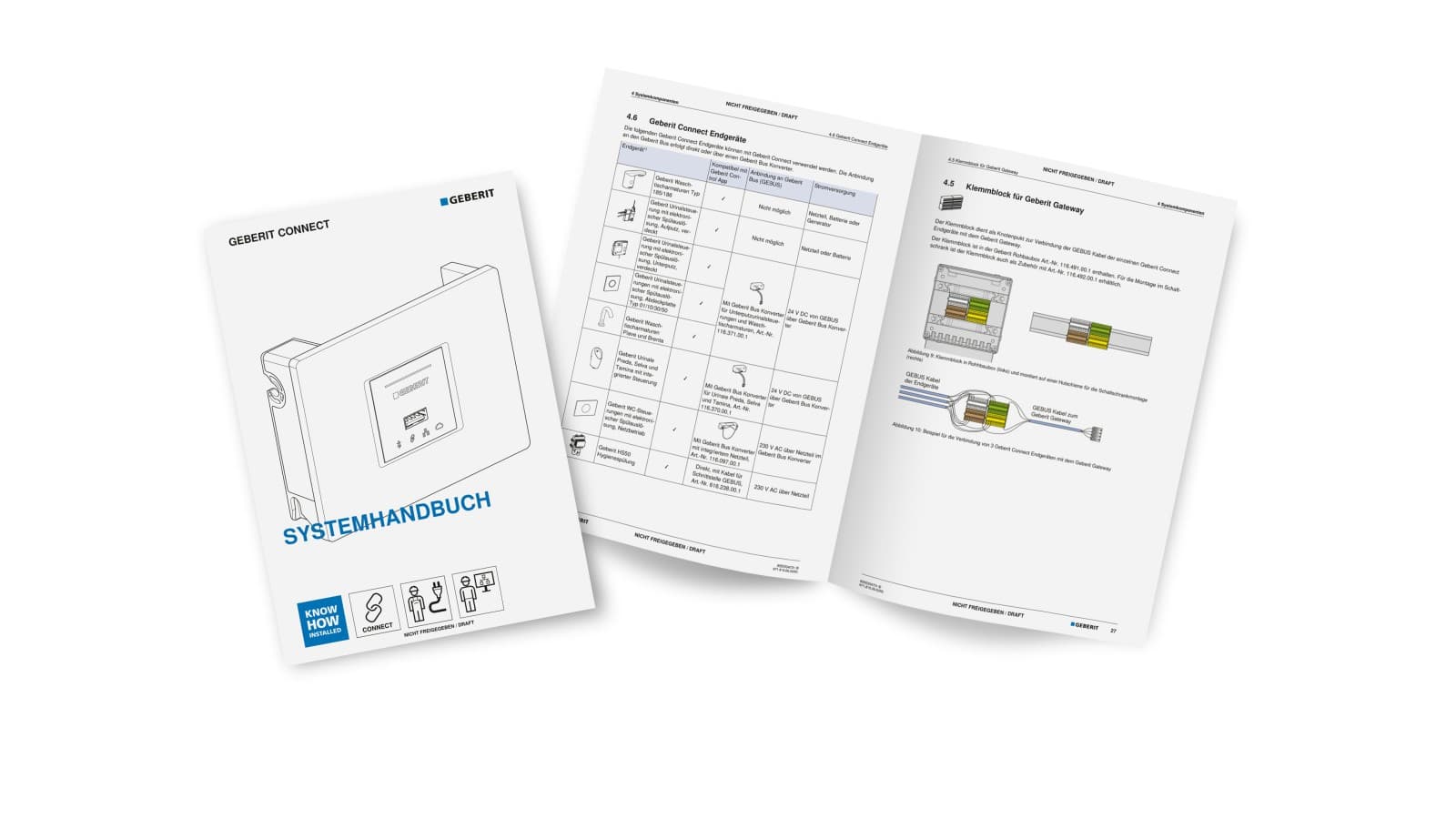

Geberit Connect system manualEverything you need to know about connectivity
The system manual describes how to connect all Geberit Connect-capable devices. The system manual includes the following chapters:
- System overview
- System components
- Planning: Planning rules, zone division, connection of end devices and practical examples
- Commissioning: Following the process, connecting devices, finalising commissioning
- Operation: Operating devices, performing firmware updates, maintaining devices
- Disposal
