Geberit Pluvia Syphonic roof drainage system
Fewer pipelines – greater performance
With Geberit Pluvia, Geberit offers a high-performance drainage system for large or complex roofs. The syphonic roof drainage system ensures efficient and reliable performance even during heavy rainfall.
Unlike conventional roof drainage systems, Geberit Pluvia requires significantly less material and space. This allows for more efficient use of available space during the planning phase.
Geberit Pluvia has proven itself worldwide over decades of use and is suitable for almost any roof shape.
Geberit also provides project-specific advice and planning support. For fast and reliable planning, users can count on the Geberit ProPlanner planning software and an interface with AutoDesk® Revit®.
Why choose Geberit Pluvia?
Geberit Pluvia can be used with various roof shapes.
High performance with smaller pipe diameters, fewer roof outlets and fewer connections.
As the pipes are installed horizontally, Geberit Pluvia does not result in any loss of usable space.
The high flow velocity in filled pipes creates a vacuum that contributes to the system’s self-cleaning function.
A quick guide to syphonic roof drainage
Geberit Pluvia is designed so that the pipes quickly and completely fill with water during heavy rainfall. This creates a closed, fast-flowing column of water that actively draws rainwater off the roof.
The discharge capacity of a syphonic roof drainage system is very high. With Geberit Pluvia, fewer roof outlets, smaller pipe diameters and fewer stacks are needed compared to conventional roof drainage systems. Geberit Pluvia can handle twice the amount of rainwater discharge with only half the pipe diameter. This gives sanitary engineers and architects greater design freedom. Pipes with a slope are no longer necessary.
Geberit Pluvia also reduces construction work and requires fewer connections to the sewage system. As an added benefit, the high flow velocity helps keep the pipes clean, resulting in significantly lower maintenance and servicing requirements.
Geberit Pluvia components
From the roof to the underground pipe connection – perfectly matched components ensure a fully functional overall system. Clever design details and consistently high material quality provide durability, safety and smooth operation.

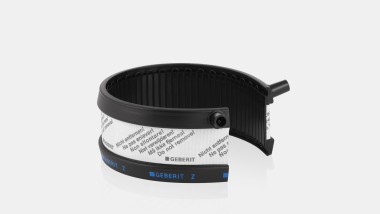

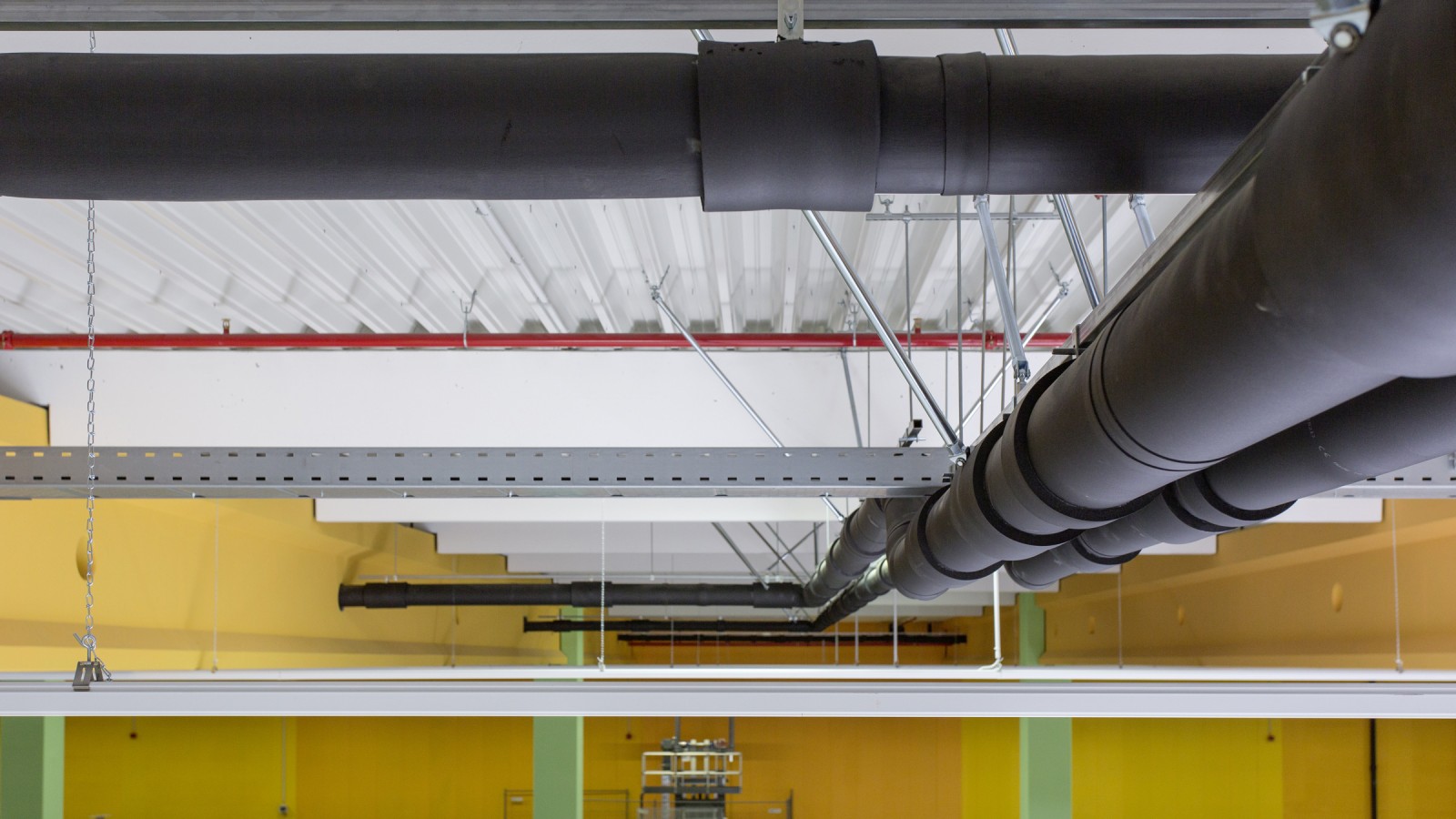

Geberit PE pipe system

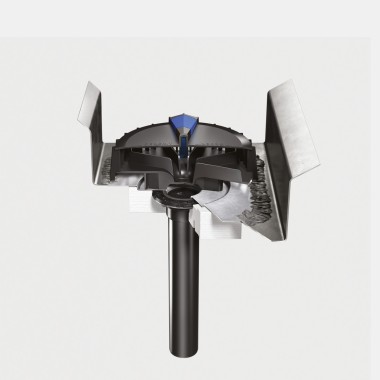

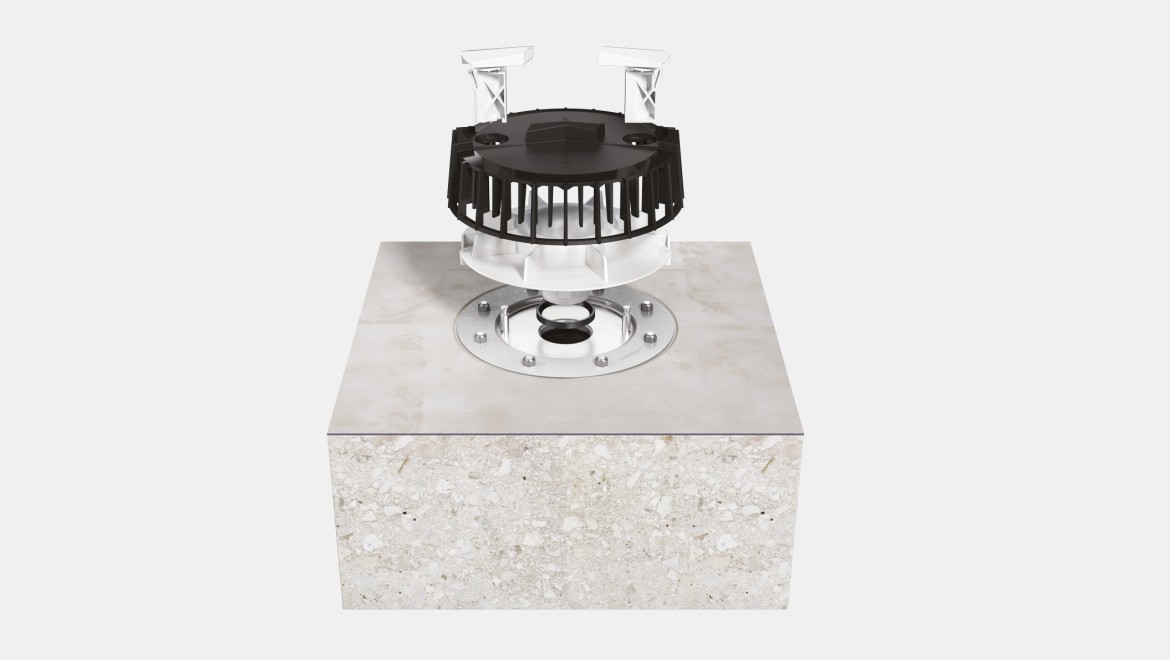

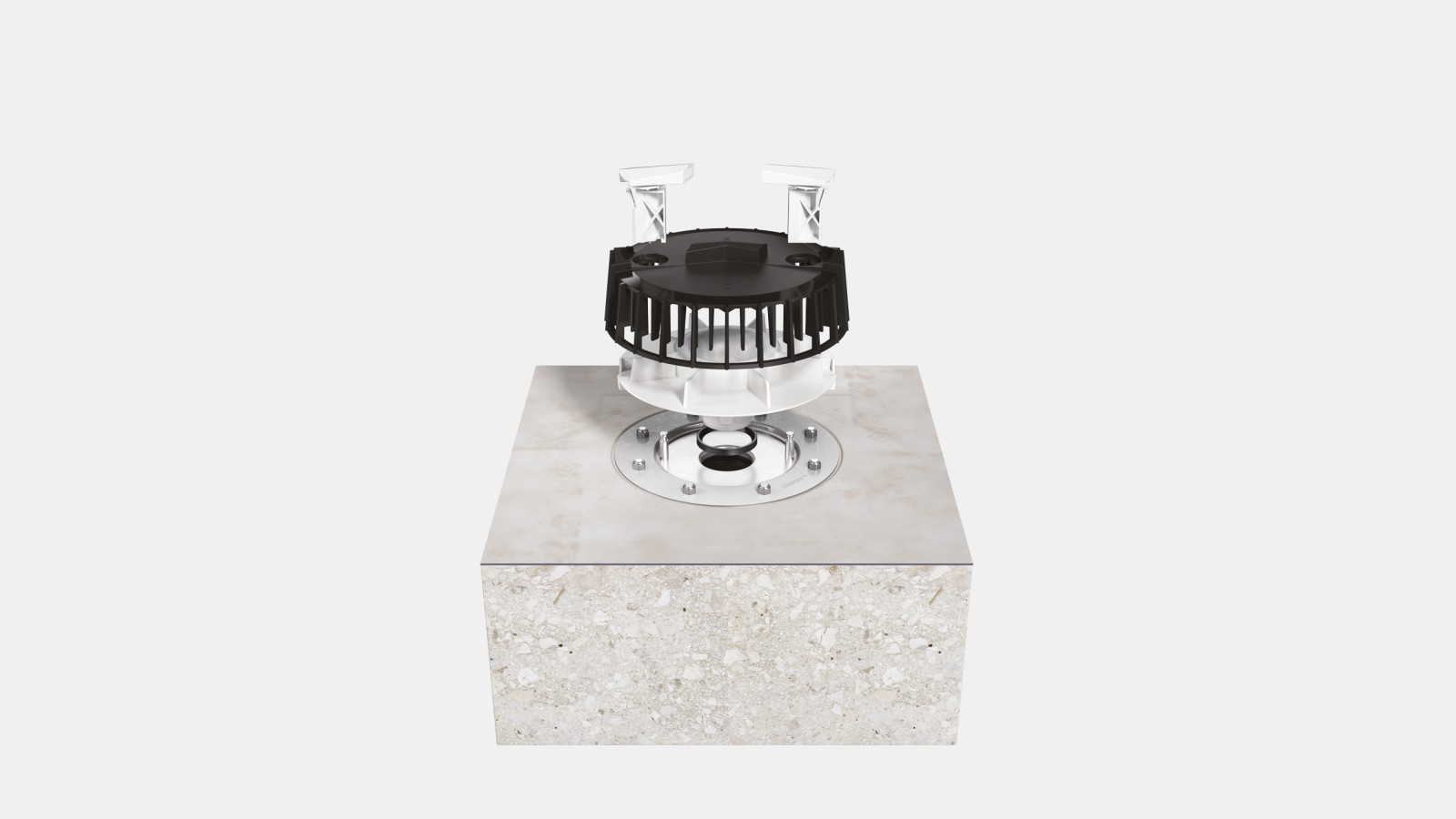

Geberit Pluvia roof outlets

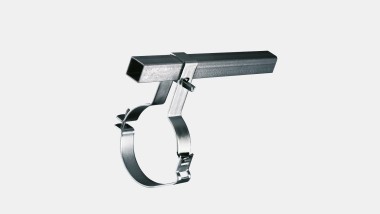

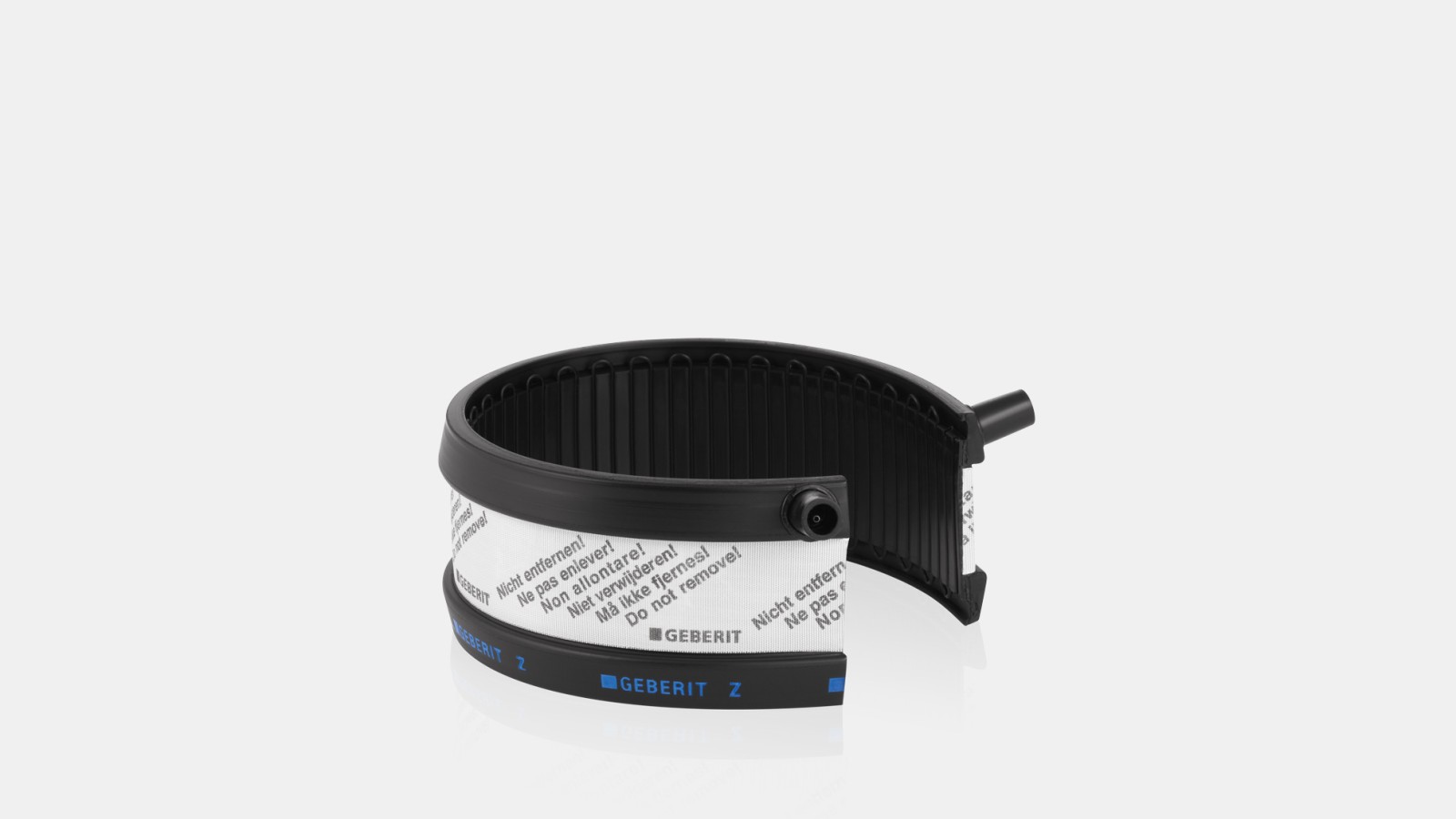

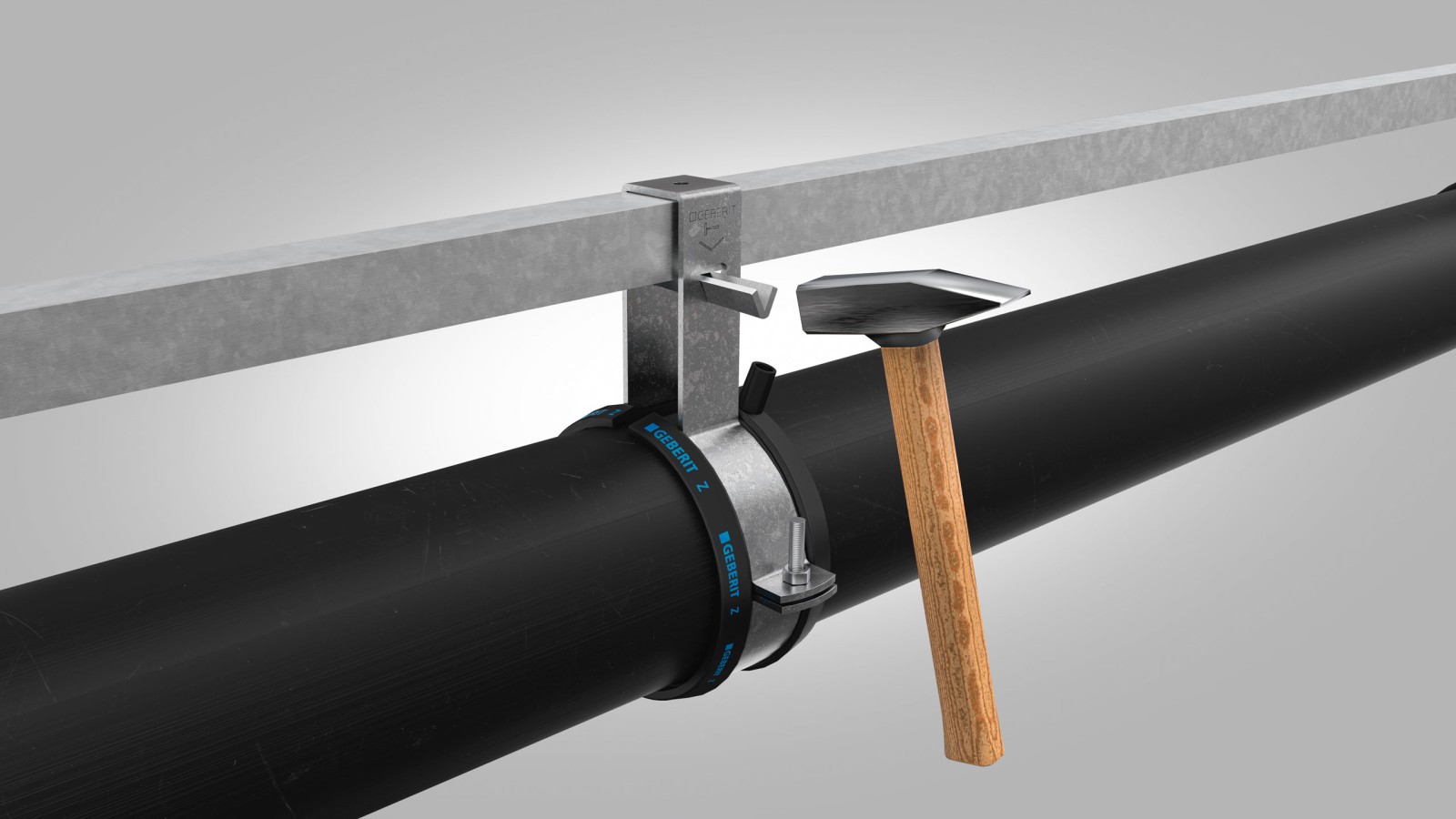

Geberit Pluvia fastening system
Planning & installation of Geberit Pluvia
Planning
Planning a roof drainage system is a complex process, which is why Geberit includes planning support as part of every project.
From the planning and tendering phases through to implementation, customers can rely on Geberit’s comprehensive expertise. Various digital tools help ensure reliable planning.
The hydraulic calculations for a Geberit Pluvia system can be carried out directly in Geberit ProPlanner or using the Geberit Pluvia module in the Geberit BIM Plug-in for Autodesk Revit®.

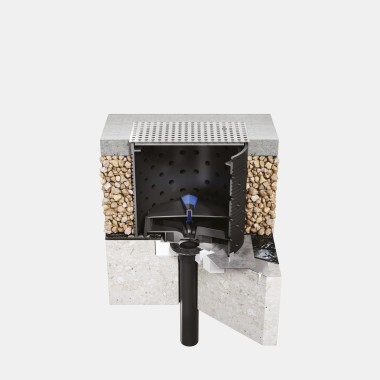

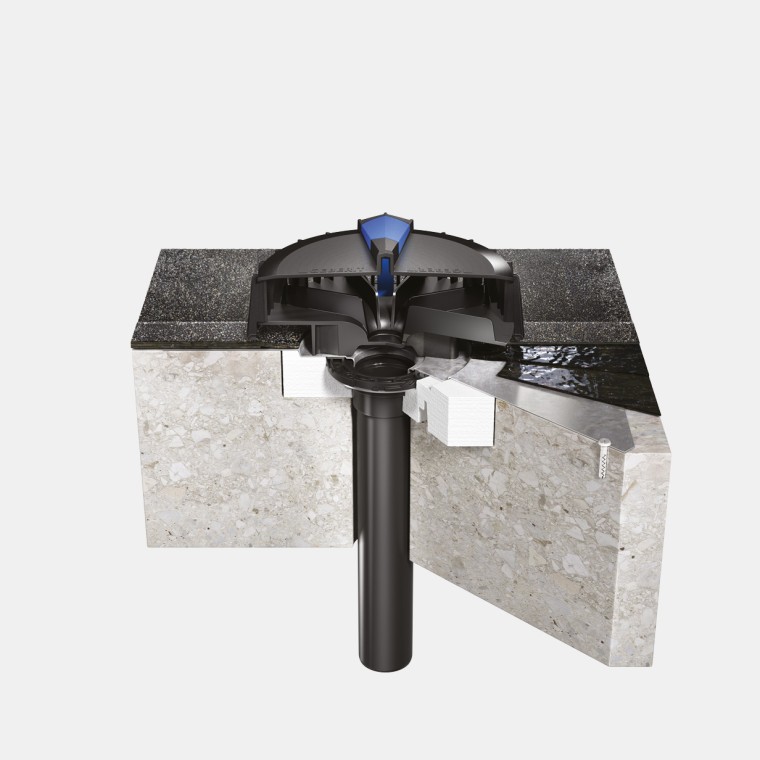

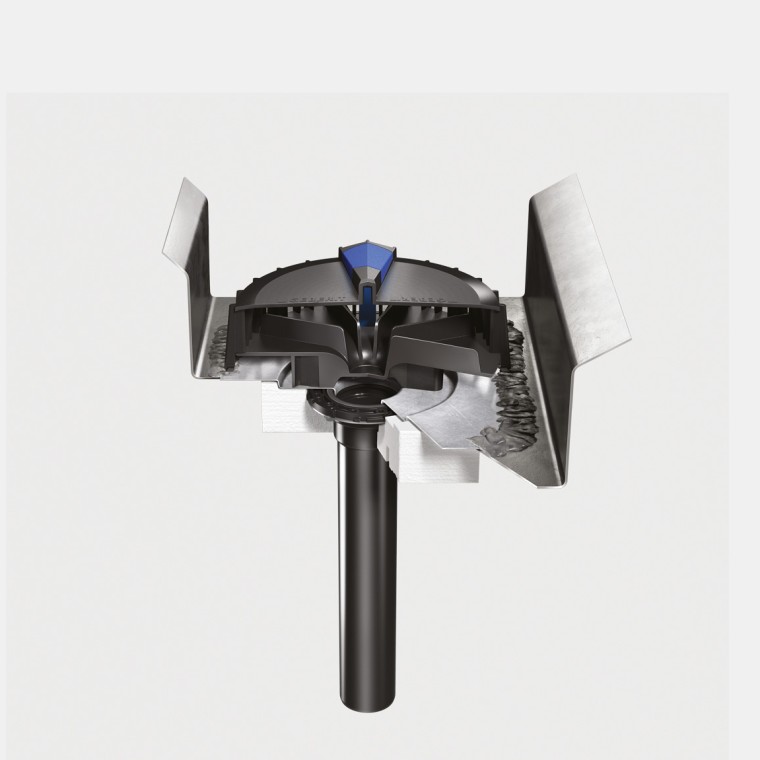

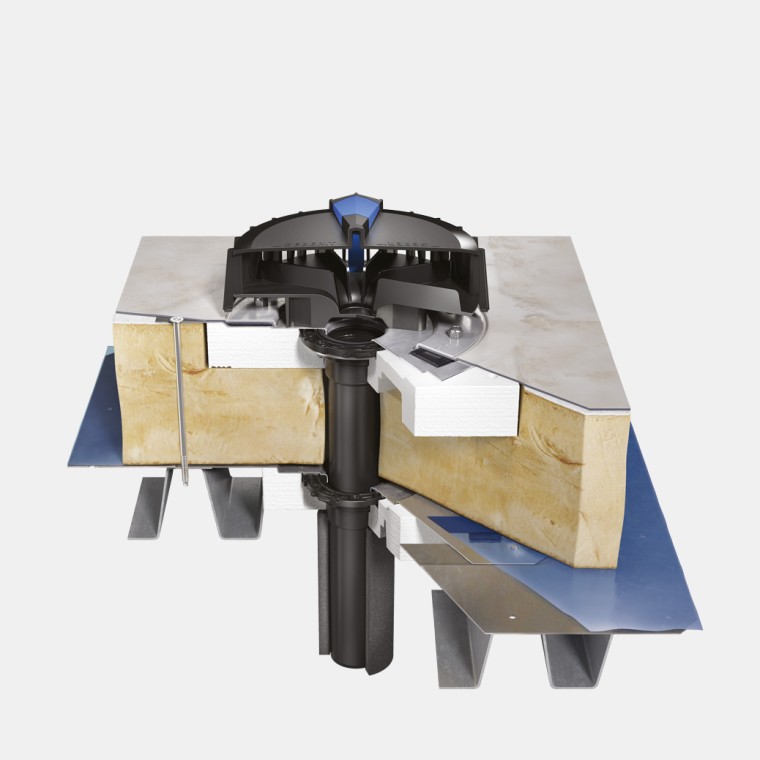

A quick guide to installation Examples of selected construction scenarios
The installation of Geberit Pluvia varies depending on the constructional situation and project requirements.
Geberit Pluvia product range Articles, technical information and more
Do you have any questions? We are happy to help you.
Our specialists advise planners, plumbers and other professionals on their projects. They will be happy to advise you on how to best master your current challenges with our products.
