Geberit Sigma and Omegaframe and concealed cistern pull disc

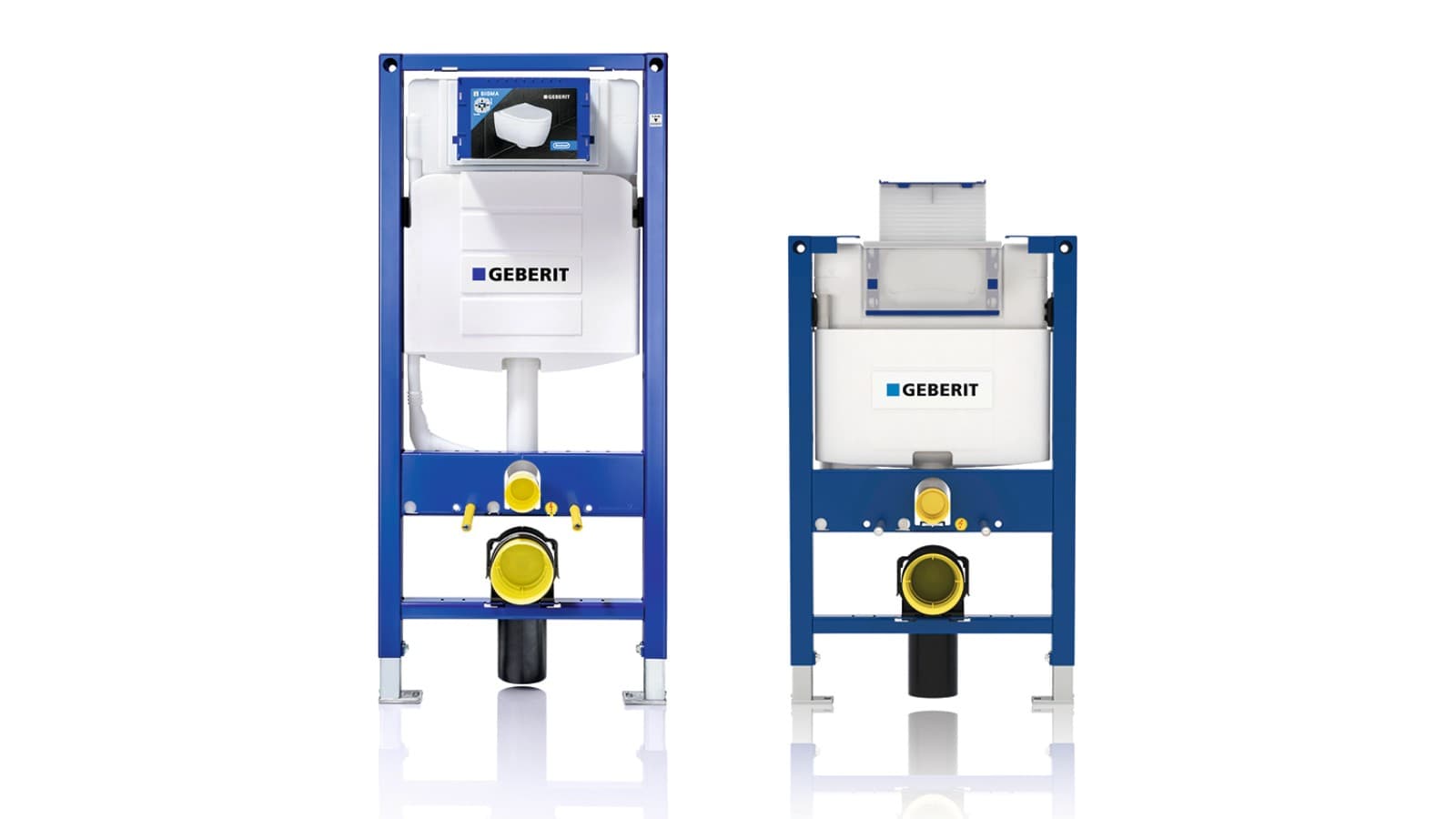

Sigma and Omega concealed cistern
Geberit concealed cisterns are reliable as every cistern is leak-tested before it is delivered. With 50-year guaranteed spare parts availability provides long-term security.
For floor standing and back-to-wall ceramics, Geberit Omega concealed cistern has a construction height of 82cm with top or front actuation, whilst Sigma has heights of 98 and 112cm with front access only. Also suitable for Geberit remote flush actuation.
Pull disc
We have created a product improvement to help achieve consistent low flush volumes with the below ceramic combinations with the Geberit Sigma and Omega frame and concealed cistern called a pull disc. By installing the pull disc we are able to achieve maximum BREEAM points with flushing volumes of 4/2.6I. The pull disc is easy to install by fixating onto the base of the Type 212 valves for Omega and as standard will be provided as an accessory with the Omega frame or cistern, or alternatively can also be bought as a spare part. Please note that if the ceramic isn't listed below then you do not need the pull disc.
| Sigma 109.309.00.5 - Valve settings (for back to wall ceramics) |
|---|
| Product code | Full flush | Part flush |
|---|---|---|
| 500.208.01.1 | 1 | 16 |
| 500.379.01.1 | 1 | 17 |
| 502.293.00.7 | 1 | 16 |
Sigma 111.383.00.3 - Valve settings (for wall-hung ceramics)
| Product code | Full flush | Part flush |
|---|---|---|
| 500.208.01.1 | 1 | 16 |
| 501.546.01.7 | 1 | 16 |
| 502.293.00.7 | 1 | 17 |
| 502.280.01.7 | 1 | 16 |
| 500.377.01.7 | 2 | 22 |
| 501.458.00.7 | 1 | 16 |
| AR1738WH | 1 | 16 |
Omega 109.041.00.1 - Valve Settings (for floor standing/ back-to-wall ceramics)
| Product code | Full flush | Part flush |
|---|---|---|
| 500.840.01.1 | 1 | 17 |
| 214020000 | 1 | 17 |
| 211910000 | 1 | 18 |
| 500.512.01.1 | 1 | 18 |
| 500.602.01.2 | 1 | 18 |
| 500.393.01.7 | 1 | 18 |
| 500.394.01.7 | 1 | 20 |
| 501.043.00.6 | 1 | 16 |
| 501.564.01.7 | 1 | 16 |
Omega 111.004.00.3 - Valve settings (for wall-hung ceramics)
| Product code | Full flush | Part flush |
|---|---|---|
| 501.661.00.1 | 1 | 17 |
| 500.349.01.7 | 1 | 17 |
| 500.694.01.7 | 1 | 18 |
| 501.545.01.7 | 1 | 17 |
| 500.208.01.1 | 1 | 16 |
| 204060000 | 1 | 16 |
| 204070000 | 1 | 16 |
| 201950000 | 1 | 16 |
| 500.600.01.2 | 1 | 17 |
| 600.260.01.7 | 1 | 18 |
| 501.457.00.6 | 1 | 17 |
| 501.045.00.7 | 1 | 18 |
| 500.211.01.1 | 1 | 17 |
| 500.210.01.1 | 1 | 15 |
| 500.379.01.1 | 1 | 14 |
| 204000000 | 1 | 14 |
| 502.380.00.1 | 1 | 17 |
| 201460600 | 1 | 15 |
| 500.500.01.1 | 1 | 15 |
| 500.510.01.1 | 1 | 15 |
| 501.546.01.7 | 1 | 15 |
| 502.726.00.1 | 1 | 16 |
| 502.293.00.7 | 1 | 16 |
| 502.280.01.7 | 1 | 16 |
| 500.377.01.7 | 1 | 17 |
