Geberit SoventEconomical drainage for high-rise buildings
Optimised flow
The flow-optimised Geberit HDPE Sovent fittings facilitate an inexpensive layout of stacks in tall buildings. They enhance the pipe capacity several times over and dispense with the need to install a parallel ventilation pipe.

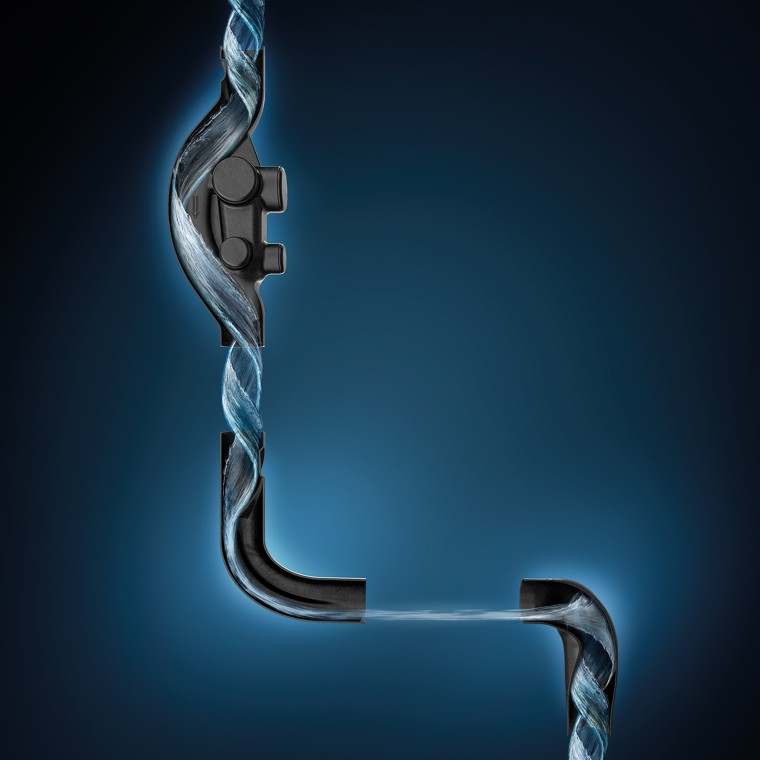

Geberit Sovent can be used as part of the Geberit Supertube System
Economical alternative
![Geberit PE Sovent equalises the pressure and increases the discharge capacity Geberit PE Sovent equalises the pressure and increases the discharge capacity](/_assetsmaster/global-media/pictures/entwaesserungssysteme/geberit-sovent/img-sovent-high-power-water-570-322.jpg)
- Has an outstanding discharge rate of 12 l/s in the dimension DN 100 and 17 l/s in the dimension DN 150
- Patented flow guidance
- Allows a relatively small pipe dimension of DN 100 to be used even in many high-rise buildings
- Saves money and space in the pipe duct thanks to fewer and smaller dimensioned pipes
- Can be combined with the Geberit HDPE and Geberit Silent-db20 drainage systems
Increased discharge capacity in a compact design
![Drainage flow with conventional connection of the floor pipes to the discharge stack Drainage flow with conventional connection of the floor pipes to the discharge stack](/_assetsmaster/global-media/pictures/entwaesserungssysteme/geberit-sovent/img-sovent-vergleich-konv-coated300-conventional-570-322.jpg)
Conventional connection
- Water in the discharge stack meets water from the floor pipe
- Rapidly changing pressure situations without additional ventilation would lead to empty suctioning or blowing of the discharge stack
- Additional ventilating pipe required
![Drainage flow with Geberit HDPE Sovent fitting in the floor pipe on the discharge stack. Drainage flow with Geberit HDPE Sovent fitting in the floor pipe on the discharge stack.](/_assetsmaster/global-media/pictures/entwaesserungssysteme/geberit-sovent/img-sovent-vergleich-konv-coated300-sovent-570-322.jpg)
Geberit HDPE Sovent fitting
- The form separates the water of the stack and floor pipe
- Pressure compensation takes place within the stack
- Small stack, no additional ventilating pipe required
- Saves costs and space
System-compatible and solid
The Geberit HDPE Sovent fitting is available for discharge stacks with a diameter of 110 or 160 mm. The fitting is manufactured from the resistant plastic HDPE and can be combined with Geberit HDPE or Geberit Silent-db20 discharge pipes.
