Geberit SuperTube technology For space-saving drainage

Continuous column of air in the drainage system with Geberit SuperTube

Anywhere space is limited and therefore expensive, the construction of multi-storey and high-rise buildings is booming. Planning hydraulically perfect waste water installations in multi-storey buildings is both complex and demanding in terms of space requirements as a result of the need for bypasses and slopes in the offset area.

Geberit developed SuperTube technology to help use building space more efficiently and make planning easier. This space-saving solution for building drainage is a pioneering alternative to conventional drainage systems. The technology makes it much easier to plan and install discharge pipes.

Geberit offers a range of different drainage systems with space-saving SuperTube technology.

Good reasons to choose SuperTube technology

More space picto
More space

A drainage system that takes up very little room provides more freedom when planning and helps create additional living space.

Simplified stack picto
Simplified stack

Eliminating the need for a bypass or ventilation pipe makes the discharge stack thinner.

Horizontal pipe with no slope picto
Horizontal pipe with no slope

Horizontal pipelines can be laid without a slope for up to 6 metres.

High waste water performance
High waste water performance

Higher drainage capacity or same performance with smaller pipe diameter compared to convential systems.

Drainage systems with SuperTube technology

SuperTube technology is available with different proven Geberit drainage systems. This allows you to create space-saving solutions that if required can also meet sound insulation requirements.

Benefits of SuperTube technology in detail

More room thanks to space-saving waste water hydraulics

SuperTube fittings are hydraulically optimised, causing water to flow around a central column of air in the discharge pipe.

This provides the following space-saving benefits:

  • Additional ventilation pipes are not required.
  • Additional bypasses do not need to be installed for direction changes.
  • Horizontal pipes can be installed without a slope for up to 6 metres.

Unlike conventional drainage systems, SuperTube technology saves space and provides more design freedom when planning buildings:

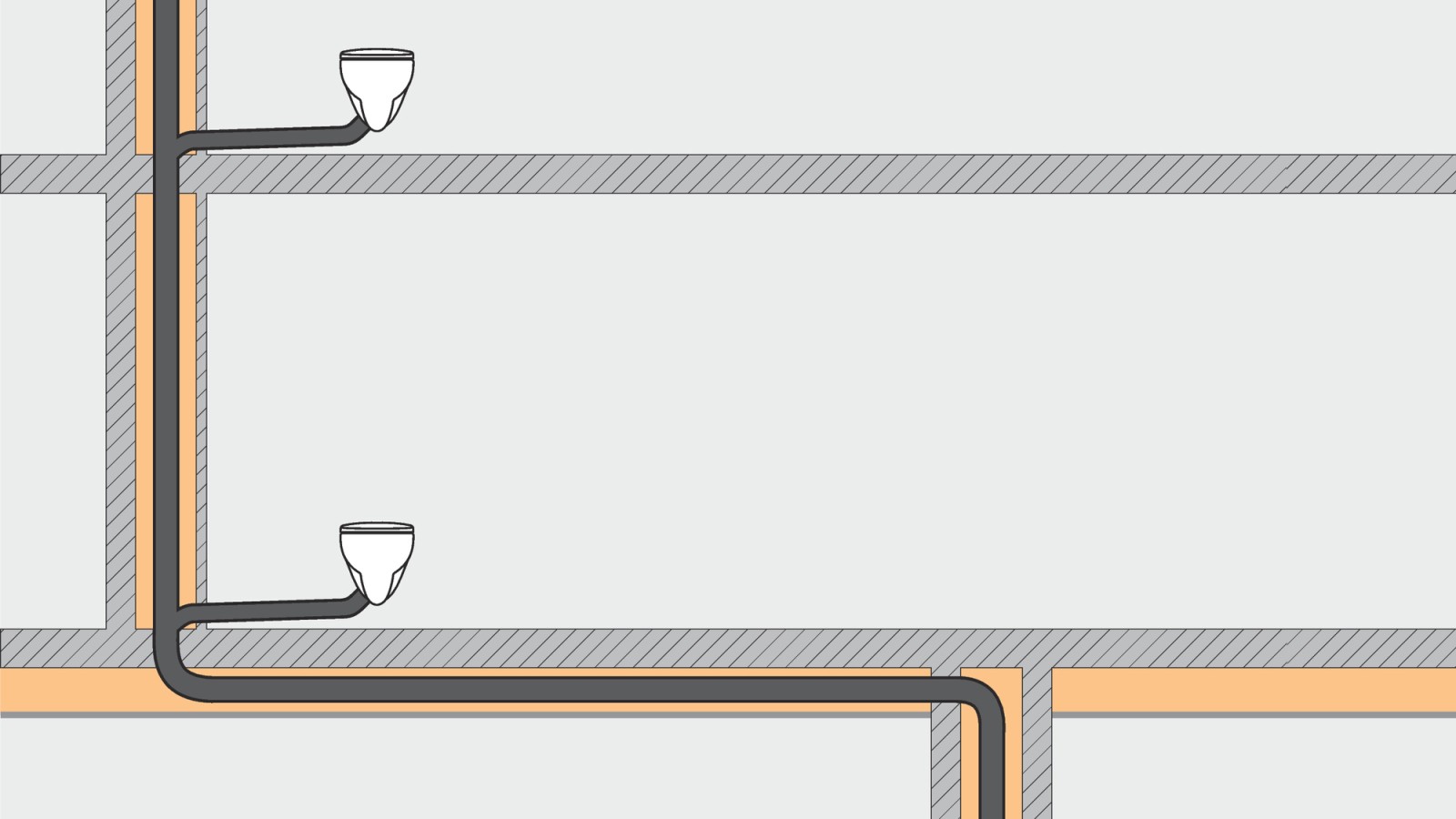

Drainage systems using Geberit SuperTube require less space and provide more freedom when planning.

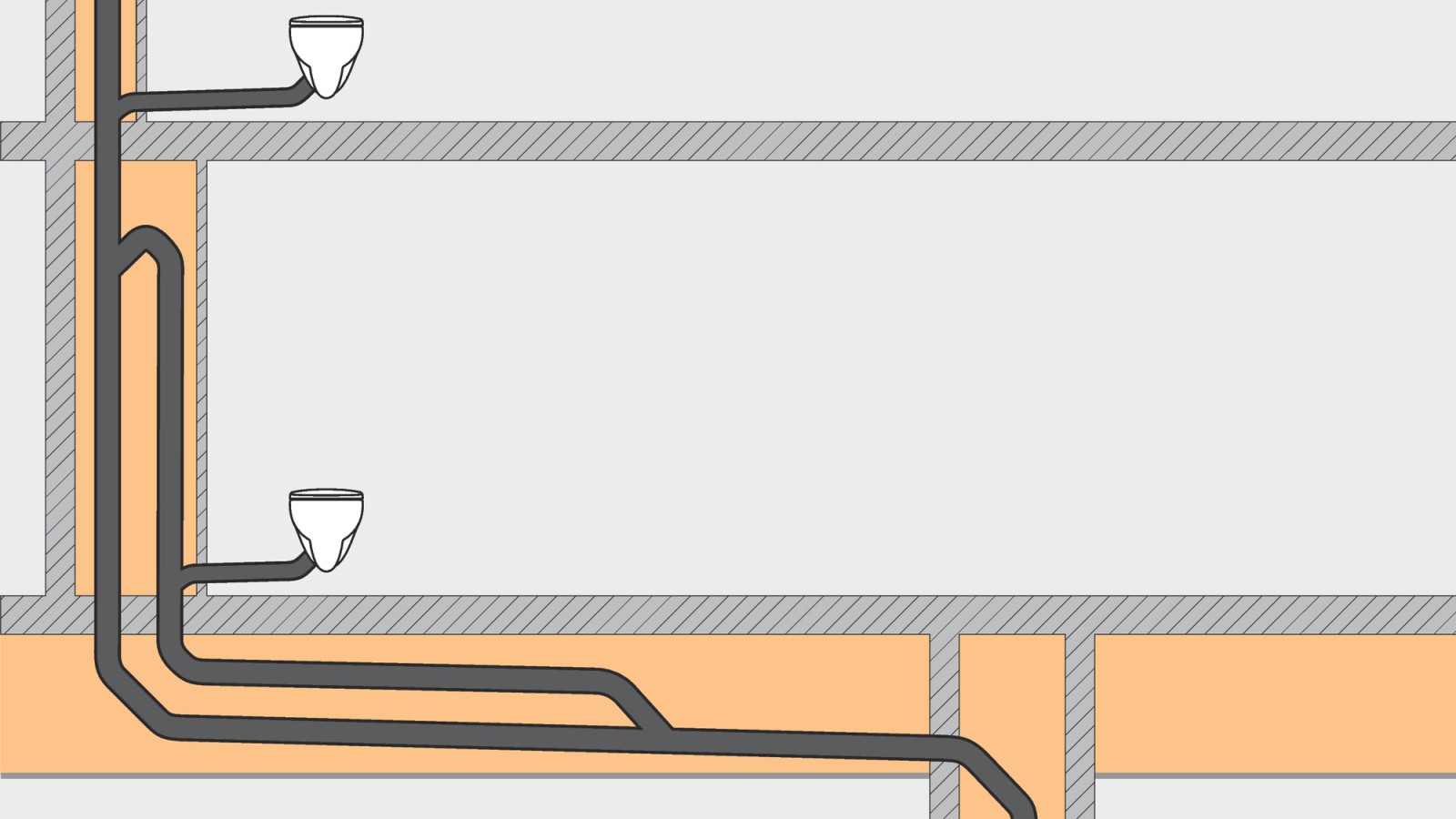

A conventional drainage system requires more space as a ventilation pipe is needed.
