Geberit Silent-Pro The highly sound-insulated drainage plug-in system

Geberit Silent-Pro for building drainage

The highly sound-insulated Geberit Silent-Pro drainage system audibly reduces unwanted noise annoyance from neighbouring bathrooms.

Even plumbers and sanitary engineers won’t hear a thing once it’s installed: they can plan, install and enjoy total peace of mind, because Geberit Silent-Pro fulfils all relevant sound insulation and fire protection requirements. Geberit Silent-Pro – for a quiet home, by design.

Geberit Silent-Pro is lighter and easier to carry than cast-iron pipes. And thanks to its push-fit connections, the piping system is also easier to install.

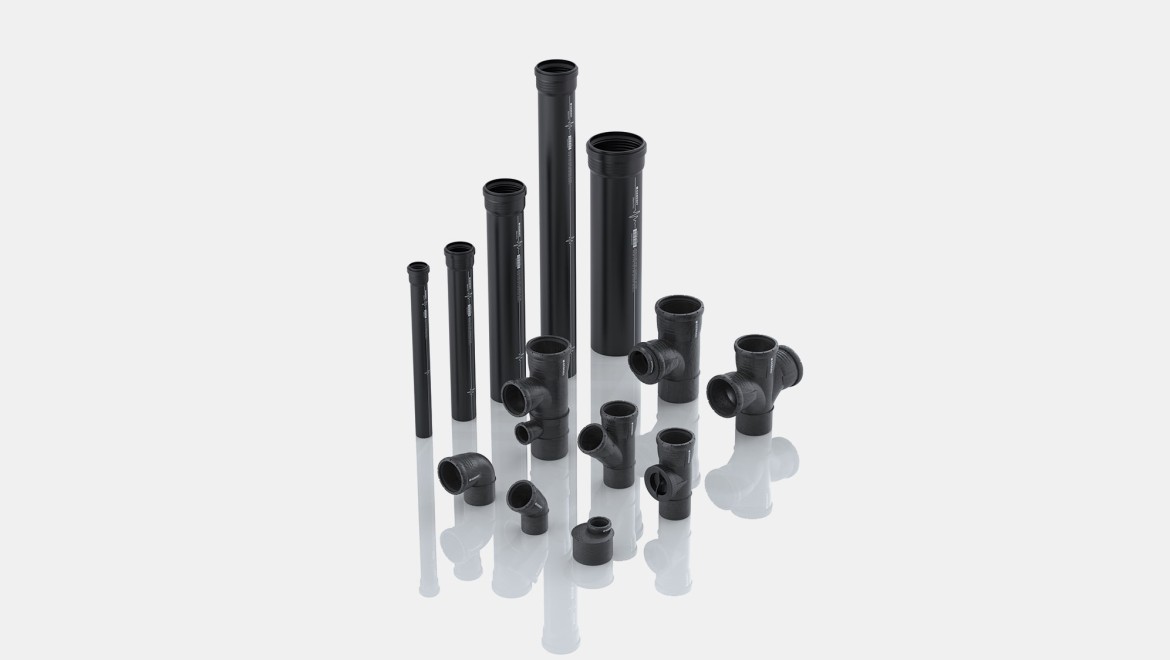

Overview of Geberit Silent-Pro

Dimensions

Available pipe dimensions

Nominal width (DN)Dimension d x s (mm)
5050 x 3.0
7075 x 3.8
9090 x 4.3
100110 x 4.5
125125 x 5.0
150160 x 6.0

Do you have any questions? We are happy to help you.

Our specialists advise planners, plumbers and other professionals on their projects. They will be happy to advise you on how to best master your current challenges with our products.

Discover similar content

Why choose Geberit Silent-Pro?

Peace and quiet at home icon
Peace and quiet at home

Highly sound-insulating thanks to a high inherent weight and special design.

Easy to install icon
Easy to install

Fittings and pipes simply click together with no need for additional tools.

Space-saving drainage solutions icon
Space-saving drainage solutions

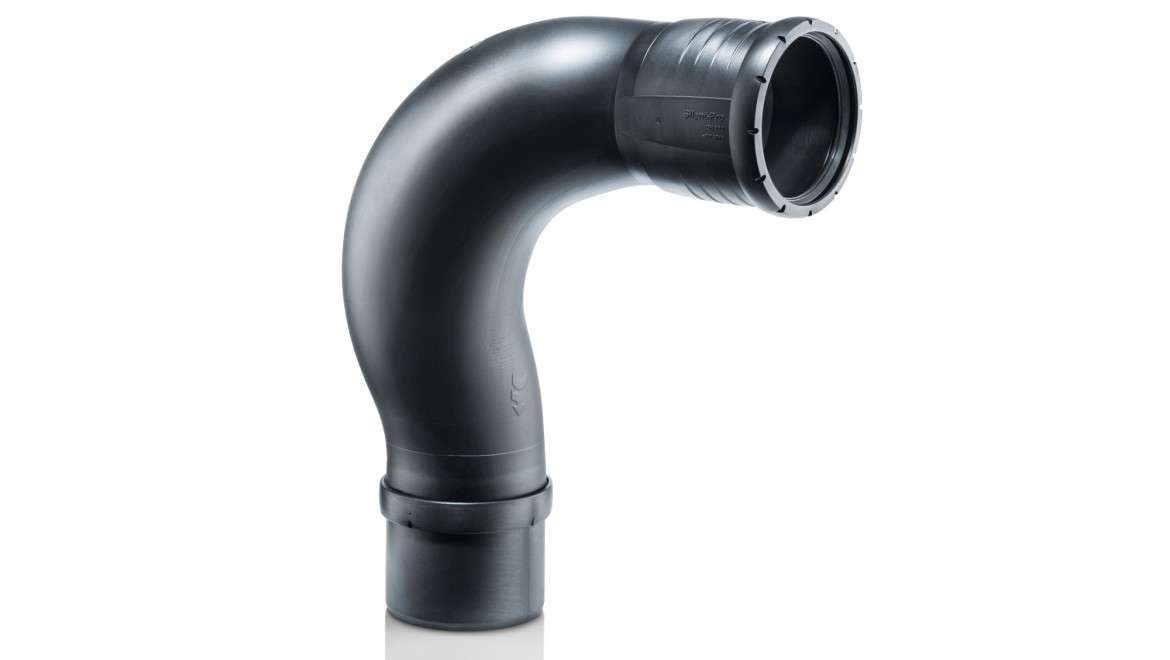

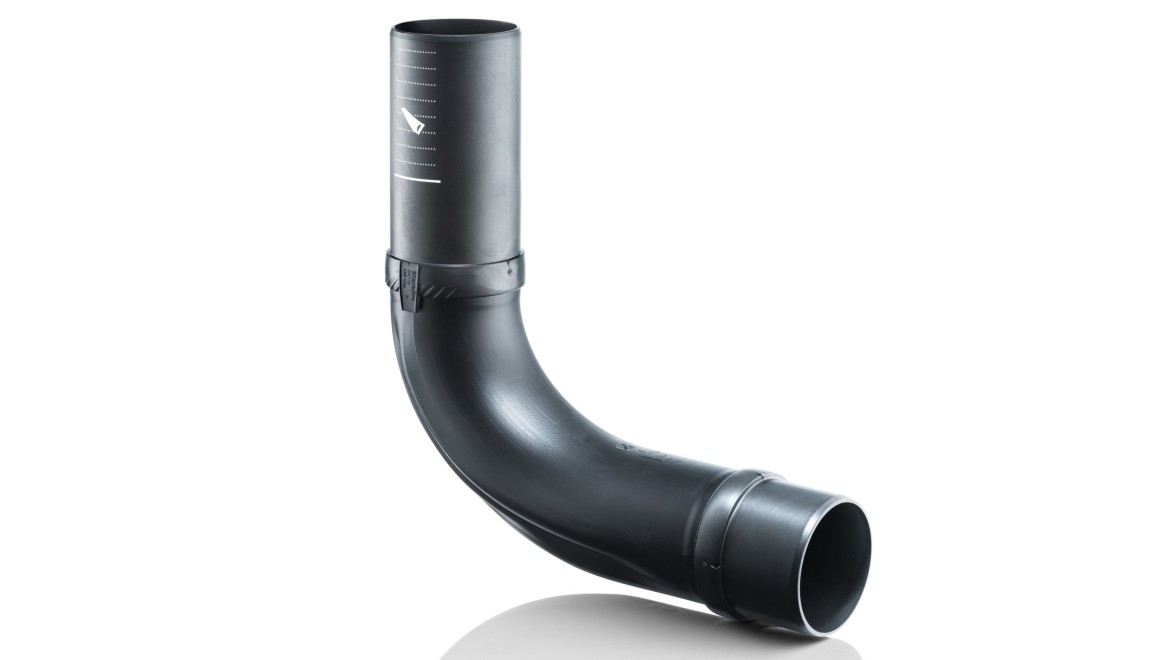

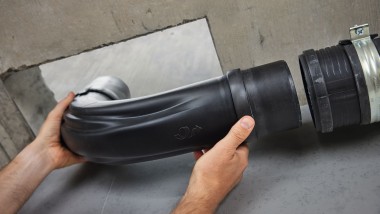

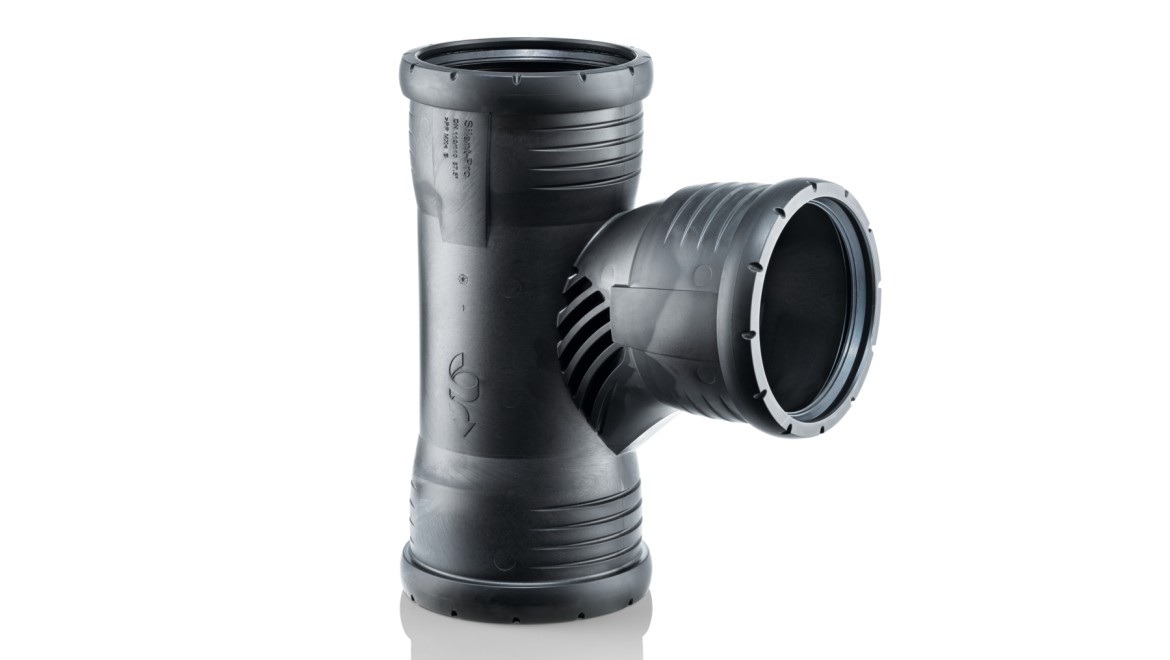

Geberit Silent-Pro SuperTube offers a space-saving drainage solution for apartment buildings.

Reliably leakproof icon
Reliably leakproof

The generous insertion depth offers added security, and the EPDM seal ring provides a leakproof seal.

Main applications and areas of use

Benefits of Geberit Silent-Pro

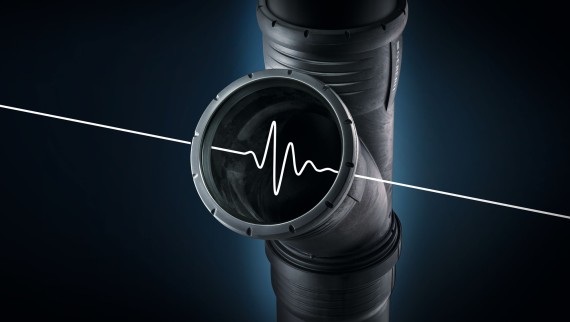

Geberit Silent-Pro – the highly sound-insulating drainage system with a high inherent weight

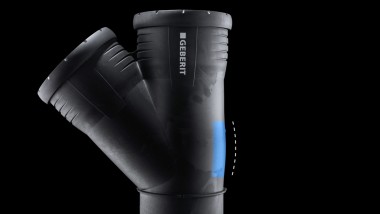

Geberit Silent-Pro is highly sound-insulating thanks to its high inherent weight and specially designed impact zones on the fittings.

Hydraulically optimised fittings ensure a higher discharge capacity and less noise development in the discharge pipe.

This makes Geberit Silent-Pro a strong choice for stacks and connection pipes in building drainage systems with high sound insulation requirements.

Sound insulation reports for various construction scenarios have been prepared in cooperation with the Fraunhofer Institute for Building Physics (IBP).

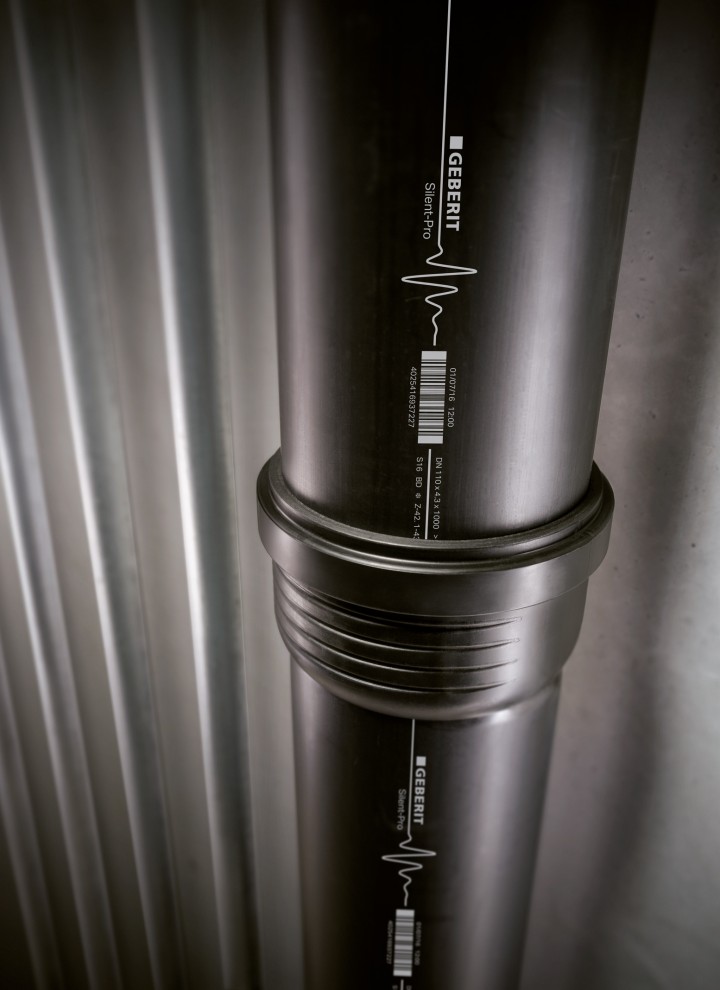

Push-fit connection system for easy installation

The Geberit Silent-Pro sound-insulated drainage plug-in system is designed for safe and straightforward installation

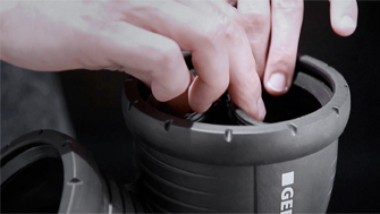

The push-fit drainage system can be assembled quickly and easily without the need for additional tools. The EPDM seal can be removed beforehand for trial assembly and then reinserted without difficulty. The seals are already slightly lubricated for easier processing.

Measuring and marking the insertion depth is no longer necessary, as the fittings feature a stop ring. This allows plumbers to see at a glance whether fittings and pipes are properly connected.

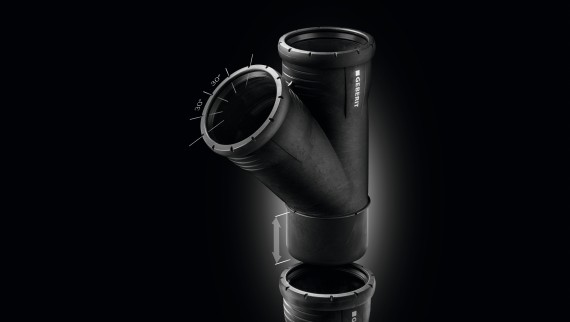

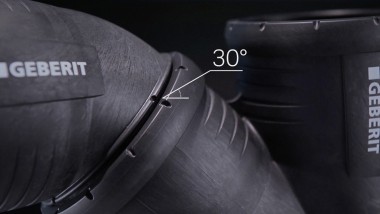

The fittings are easy to handle, making the system particularly manageable in larger dimensions. Ribs on the socket ends provide a secure grip, while the 30-degree markings allow precise alignment of the fittings.

Secure push-fit connection with visual control

Geberit Silent-Pro is packed with clever details that make all the difference. Its design incorporates features that ensure a secure connection, even in tough on-site conditions.

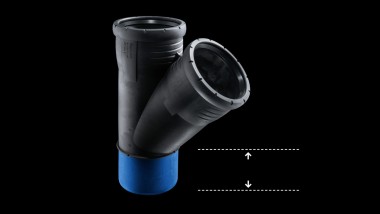

The system’s generous insertion depth offers tolerance if pipe ends are cut at an angle or not pushed fully into place.

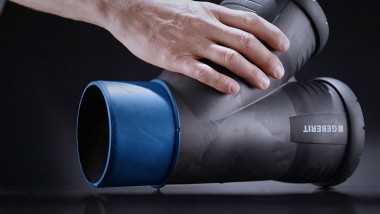

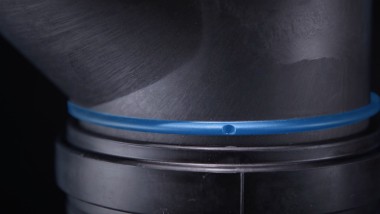

The stop ring on the fitting lets plumbers check easily whether the components are properly connected. With its raised design, the stop ring also protects the sealing surface from scratches and prevents damage to the seal during fitting.

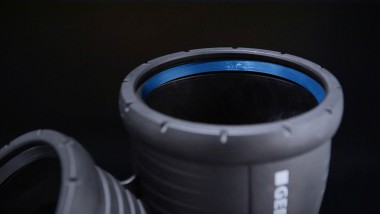

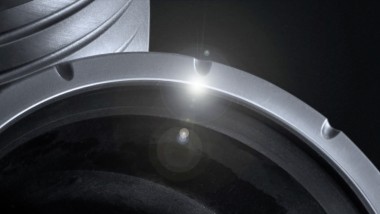

The seal itself is made from durable, high-quality EPDM. EPDM sealing rings remain leakproof for decades, even under harsh operating conditions such as elevated water temperatures or when exposed to household chemicals.
