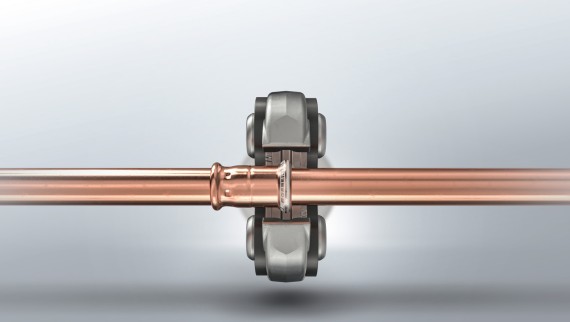

Geberit Mapress CopperRobust classic without soldering

The classic

Safe processing without an open flame

Many plumbers can still rely on copper. As Geberit Mapress Copper is very easy to press, the supply system can be processed quickly and reliably without soldering.

Geberit Mapress Copper applications

  • Potable water
  • Heating
  • Industry

Many good reasons for Geberit Mapress Copper

Cross-section of Geberit Mapress Copper
Please select an info point in the picture



The only item Geberit offers in copper is fittings. These are suitable for the following standard copper pipes. Geberit recommends using copper pipe in accordance with DIN EN 1057.

Nominal width (DN)Dimension d x s (mm) Admissible pipe strength in accordance with EN 1173
  R220 (annealed)R250 (half hard)R290 (hard)

12.0 x 0.8 * X X X
12.0 x 1.0 X X X
12 15.0 x 1.0 X X X
15 18.0 x 1.0 X X X
20 22.0 x 1.0 X X X

28.0 x 1.0 * X X
28.0 x 1.5   X X

35.0 x 1.2 * X
35.0 x 1.5    X

42.0 x 1.2 * X
42.0 x 1.5    X

54.0 x 1.5 * X
54.0 x 2.0    X
65 76.1 x 2.0 X
80 88.9 x 2.0 X
100 108.0 x 2.0 X

* Approval tests are currently being implemented

Geberit does not deliver copper pipes. The following forms of delivery are customary:

  • R220: coils
  • R250: rods
  • R290: rods


Geberit Mapress and the Six Stages of Pressing

An introduction to Geberit Mapress, including a demonstration of the six stages of pressing.

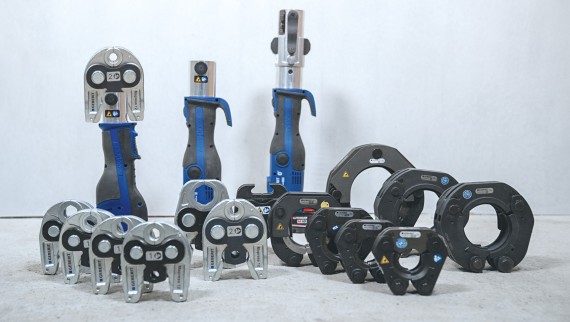

Tools and Accessories

Find out about Geberit pressing tools, pressing jaws & collars, and accessories.


Everything Supply brochure

Everything Supply brochure

Download here  (2.1 MB)

All technical information about Geberit Mapress Coppercan be found in the product catalogue
