Geberit FlowFit Flow-optimised piping system for drinking water
Fluid installation
The Geberit FlowFit supply system featuring lateral pressing technology simplifies installation at various points and speeds up workflows. All it takes is two pressing jaws to press all dimensions from d16 to d75, eliminating the need for frequent tool changes.
Inspection windows allow plumbers to check whether the pipe has been inserted to the correct depth, while blue or orange pressing indicators on the fittings confirm when the piping system has been correctly installed and securely pressed.
Geberit FlowFit press fittings are also optimised for flow, allowing smaller diameters to be used in drinking water installations.
Geberit FlowFit pipes are available as both rods and coils, with or without insulation. The extensive assortment of Geberit FlowFit fittings is suitable for a wide variety of applications.
Why choose Geberit FlowFit?
Easy installation
Straightforward installation with fewer work steps and no uncertainties.
Two pressing jaws for all dimensions
Smooth and fast installation with fewer tool changes.
Reliably pressed
Clear tool guidance and reliable control of the pressed installation.
Flow-optimised
Reduced pressure losses enable the use of smaller pipe diameters in planning.
Main applications and areas of use
Drinking water pipes
Geberit FlowFit can be used for drinking water pipes in the riser as well as for connection pipes for hot and cold water.
Heating in apartment buildings
Geberit FlowFit is suitable for cooling and heating water systems with or without antifreeze agent, for pressures of up to 10 bar.
Compressed air
Geberit FlowFit can be used for compressed air applications up to 10 bar.
Benefits of Geberit FlowFit Secure installation made simple
Easy to install in just a few steps
Geberit FlowFit enables safe and effortless installation by eliminating unnecessary work steps and reducing the number of tools required. Clear inspection features provide additional confidence in achieving a complete and secure installation.

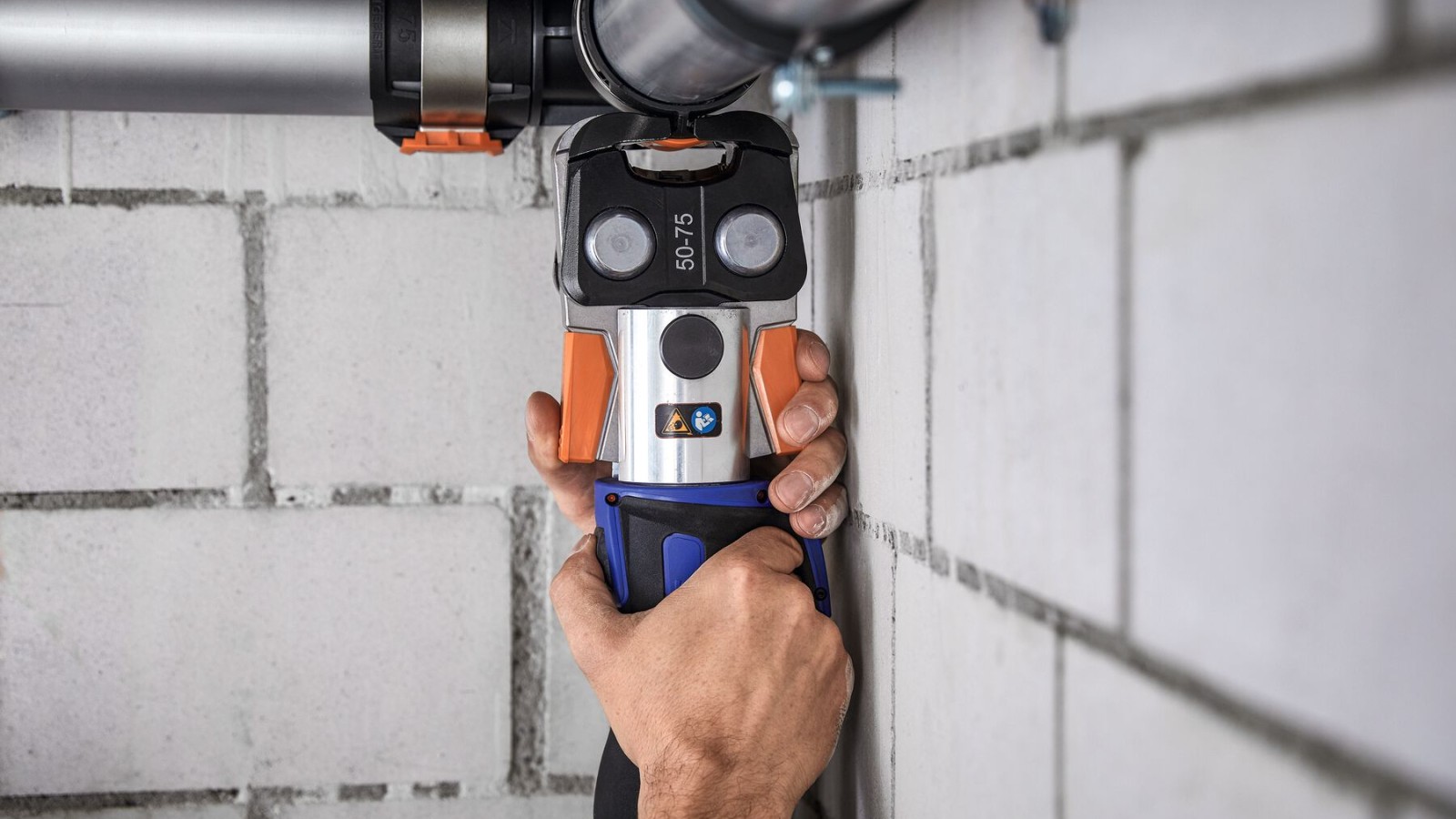

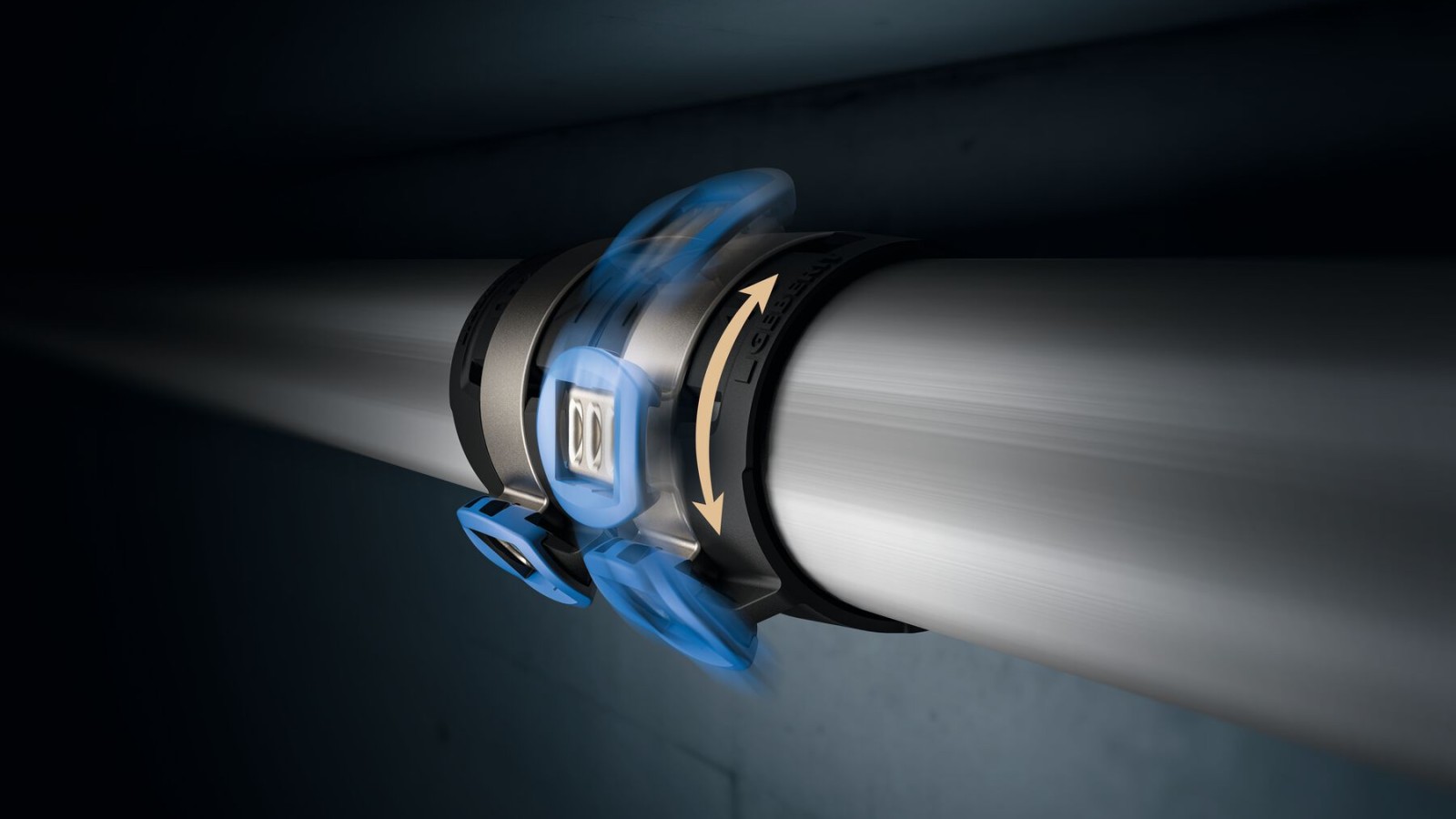

The pressing point is rotatable, allowing the pressing jaw to be positioned easily in any installation situation. This ensures that press connections can be securely made even in tight and hard-to-reach spaces.

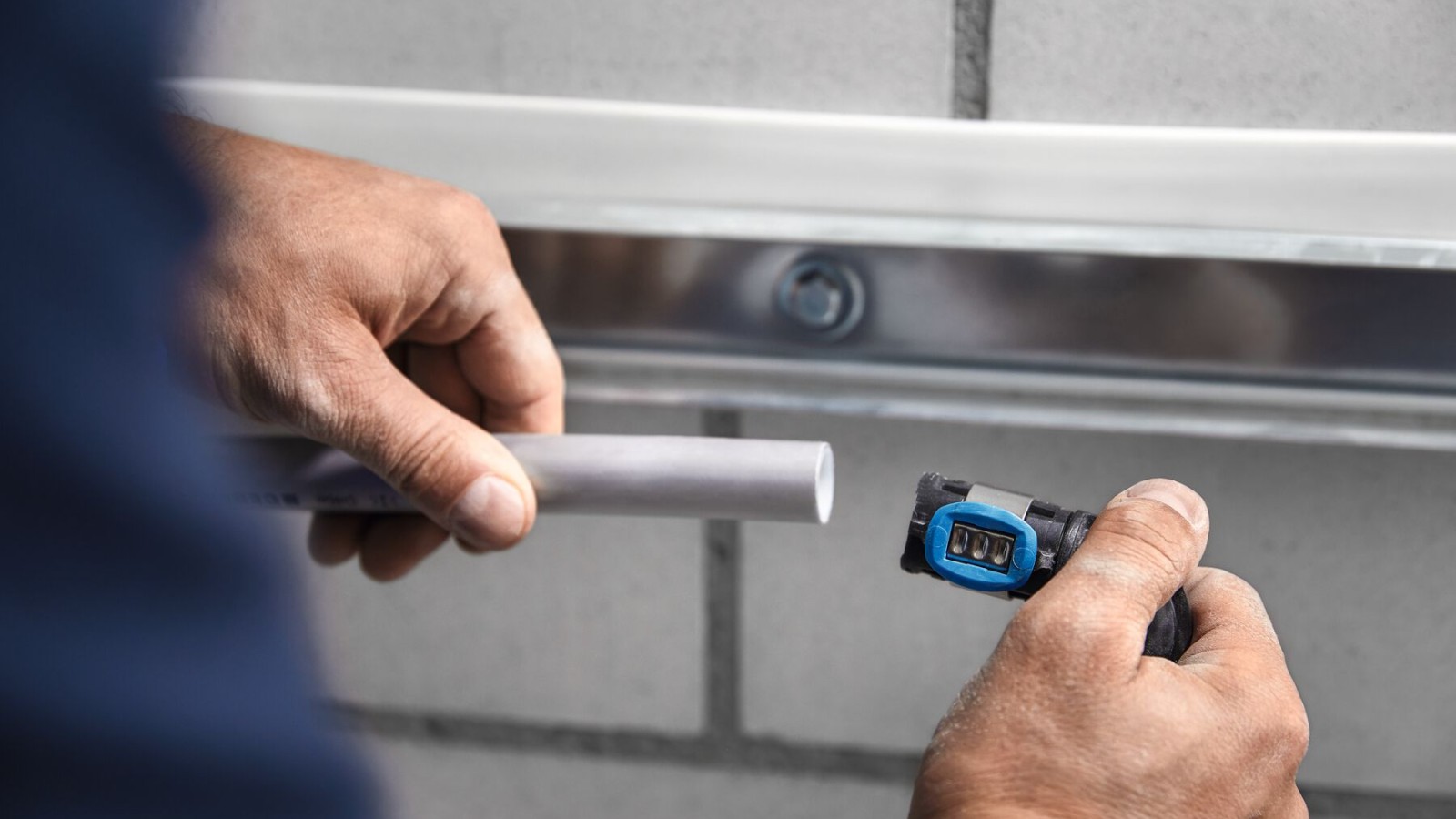

Thanks to the special fitting design, there is no need for pipe calibration or deburring after cutting to length.
Secure pipe joints with reliable checking features

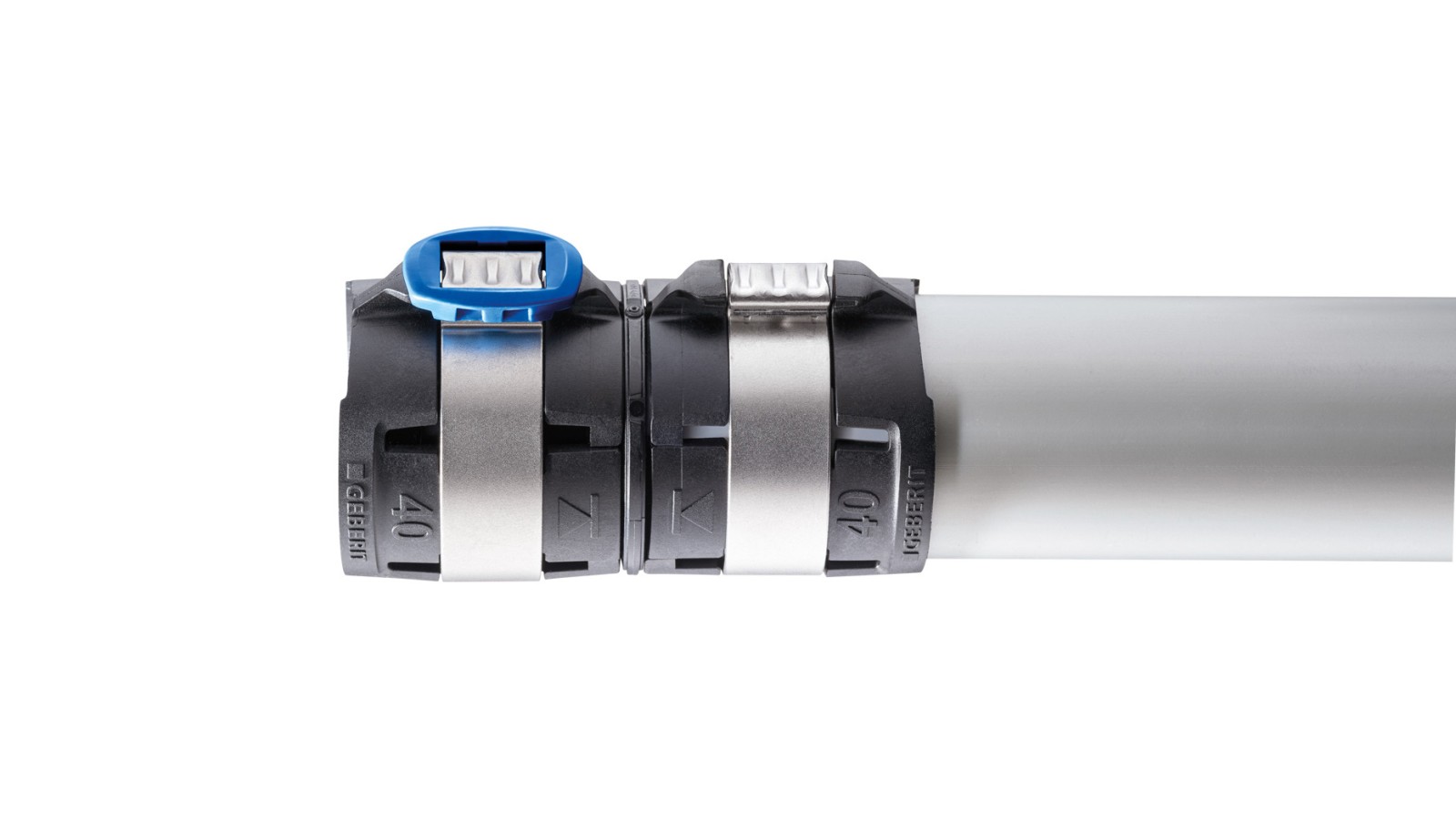

Geberit FlowFit ensures safe and secure processing at multiple points in the process. An inspection window in the fitting allows for precise checking of the pipe insertion depth.

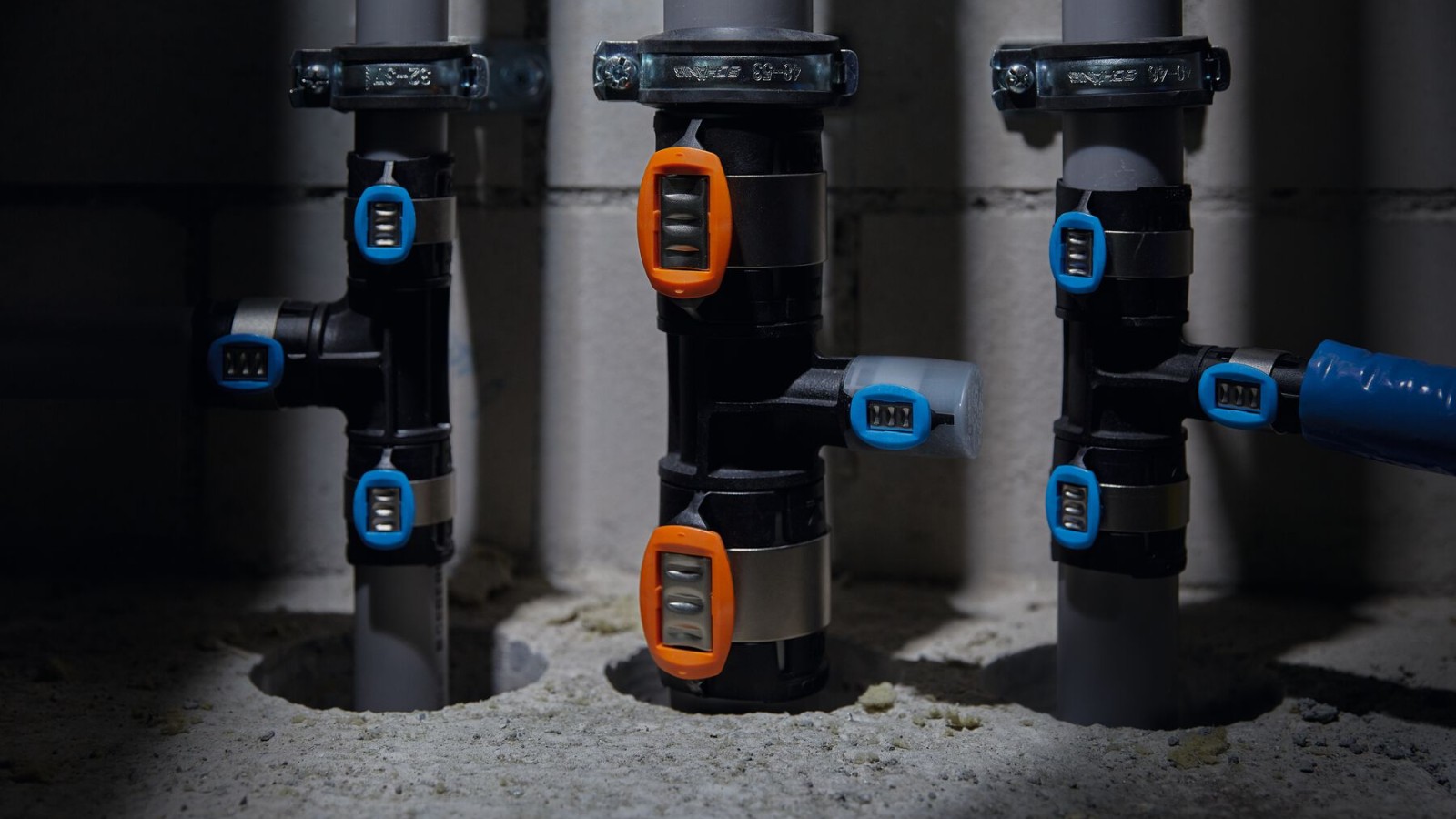

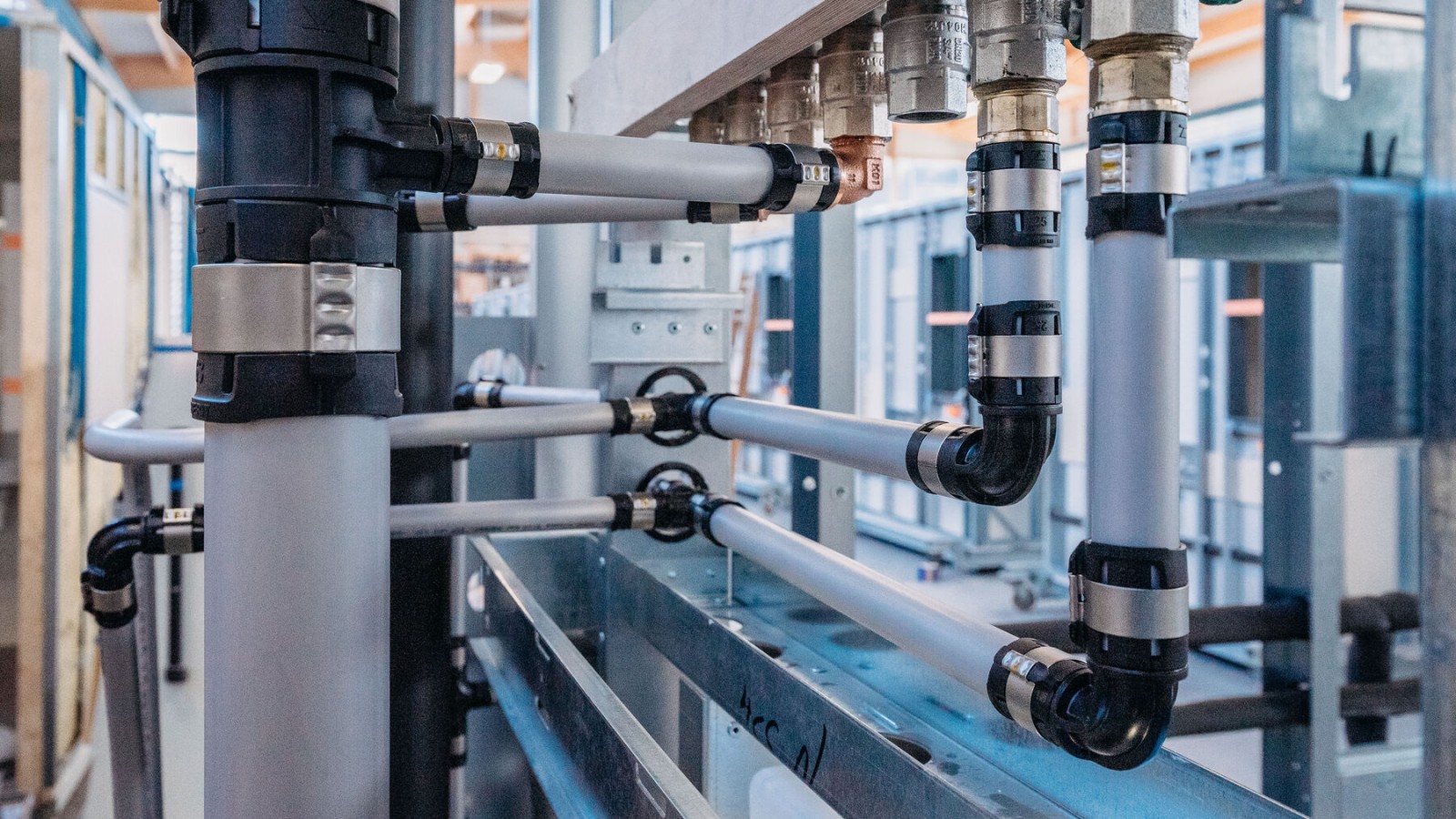

The coloured pressing indicator only detaches once successfully pressed, making unpressed connections immediately visible during a visual check.

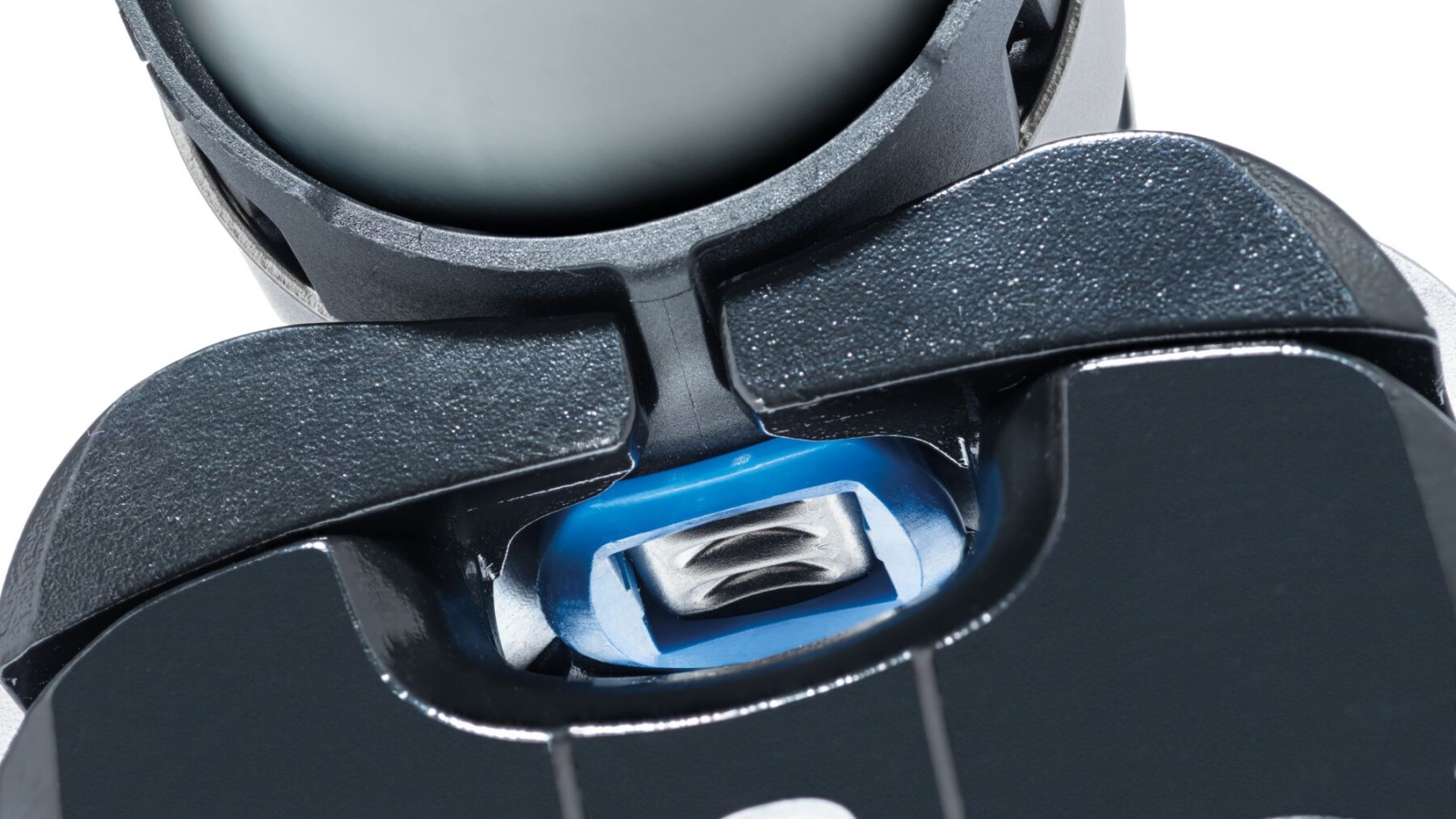

The tool and pressing indicator fit together like a lock and key, virtually eliminating the risk of failed pressing sequences due to incorrect tool positioning.

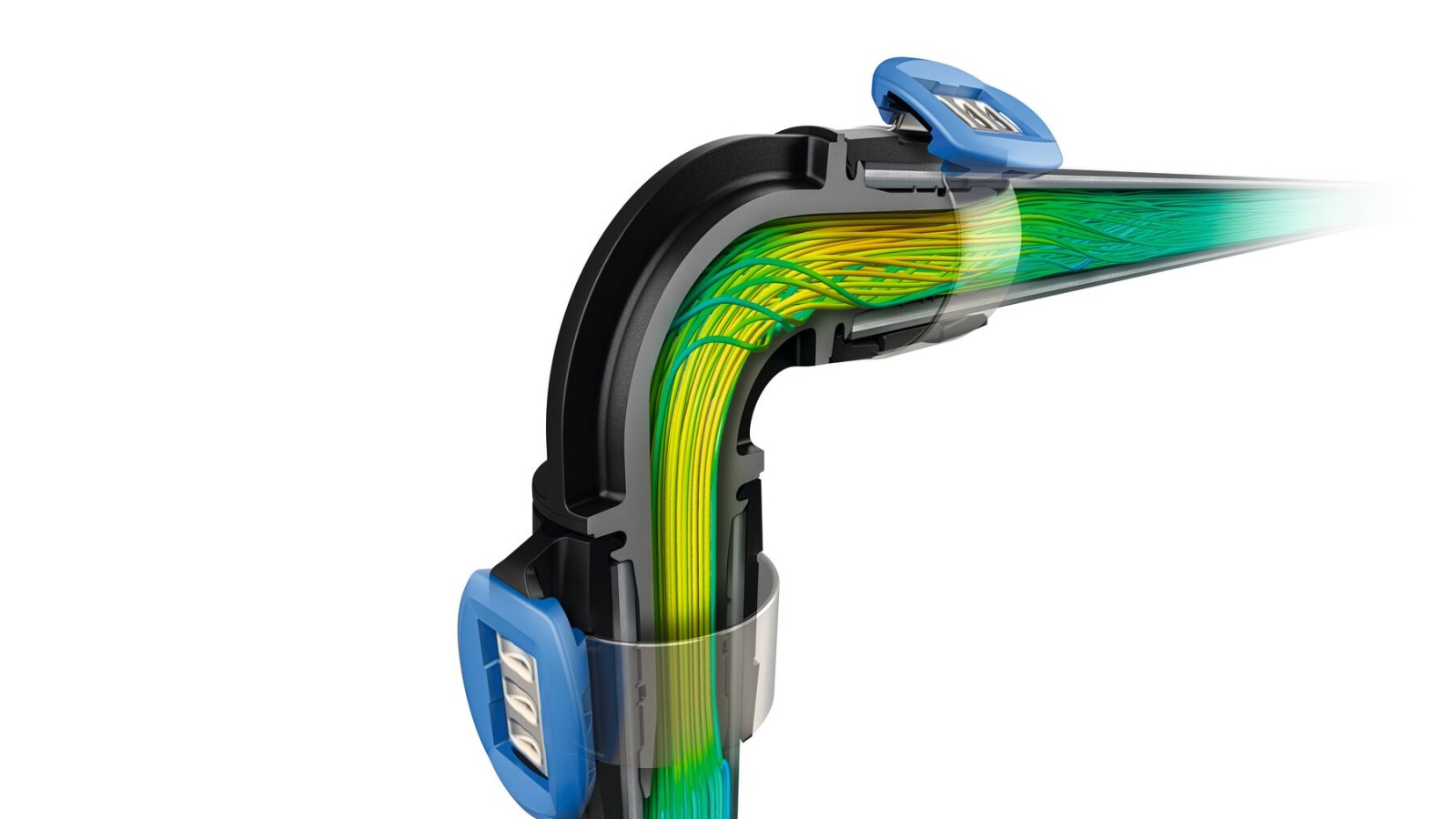

Clean installation without pressure loss
The flow-optimised design of the Geberit FlowFit press fittings results in minimal pressure losses. Drinking water installations can be planned and installed with much smaller diameters.
This results in shorter draw-off times, reduced water volume and less stagnation in the pipe.

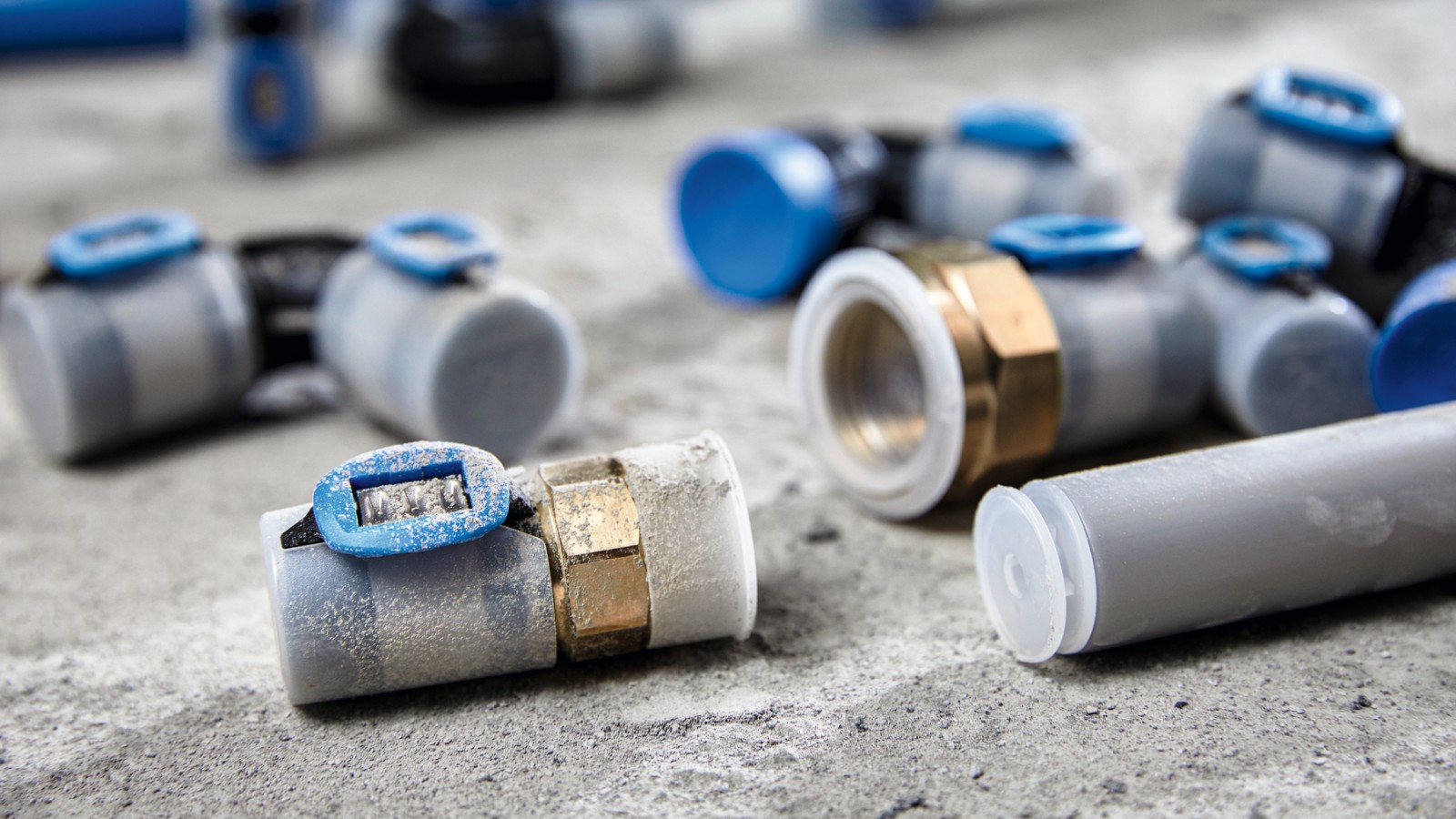

All Geberit FlowFit fittings and pipes, including threaded connections, are fitted with protective caps. This ensures they remain securely protected from particles and dirt during transport and storage.
No more worries – good solutions for a sustainable supply system
Geberit FlowFit at a glance
Facts & figures
Assortment overview
- 8 nominal widths from d16 to d75
- Around 500 fittings and components
- Multilayer (ML) system pipes, also available in a protective tube or pre-insulated
- Polybutene (PB) system pipes, also available in a protective tube
- MasterFix adapter for tool-free, secure screw connections to Geberit sanitary appliances
- Extensive assortment of adapters and transitions to other systems
Dimensions
Available pipe dimensions
| Nominal width DN | Dimension d x s (mm) |
|---|---|
| 12 | 16 x 2.0 |
| 15 | 20 x 2.0 |
| 20 | 25 x 2.5 |
| 25 | 32 x 2.8 |
| 32 | 40 x 3.0 |
| 40 | 50 x 3.8 |
| 50 | 63 x 4.0 |
| 65 | 75 x 4.6 |
Fittings
Features

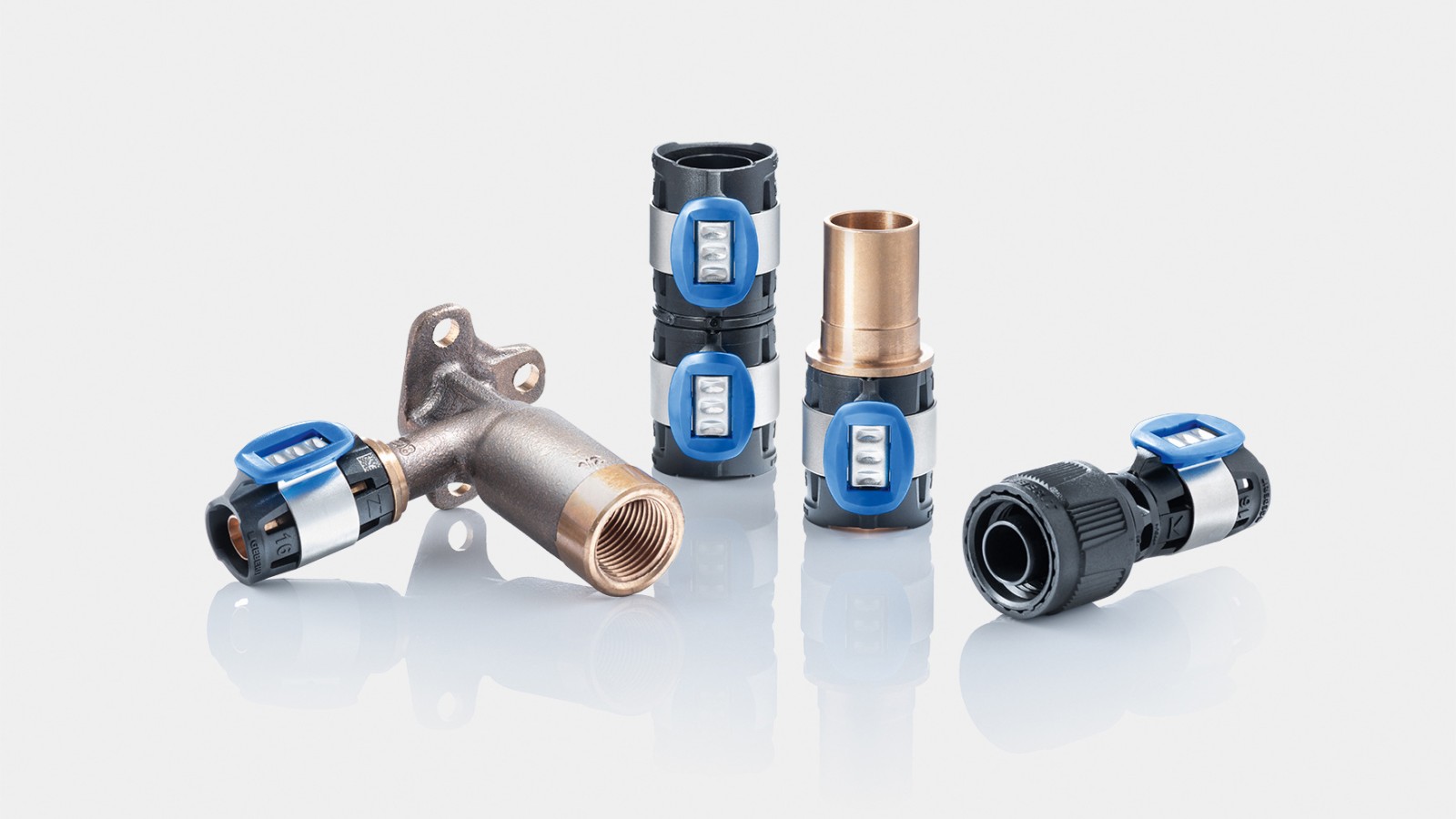

Comprehensive assortment
Geberit FlowFit offers a comprehensive assortment of fittings made of PPSU, lead-free gunmetal and lead-free silicon bronze. The assortment includes both standard and special fittings.

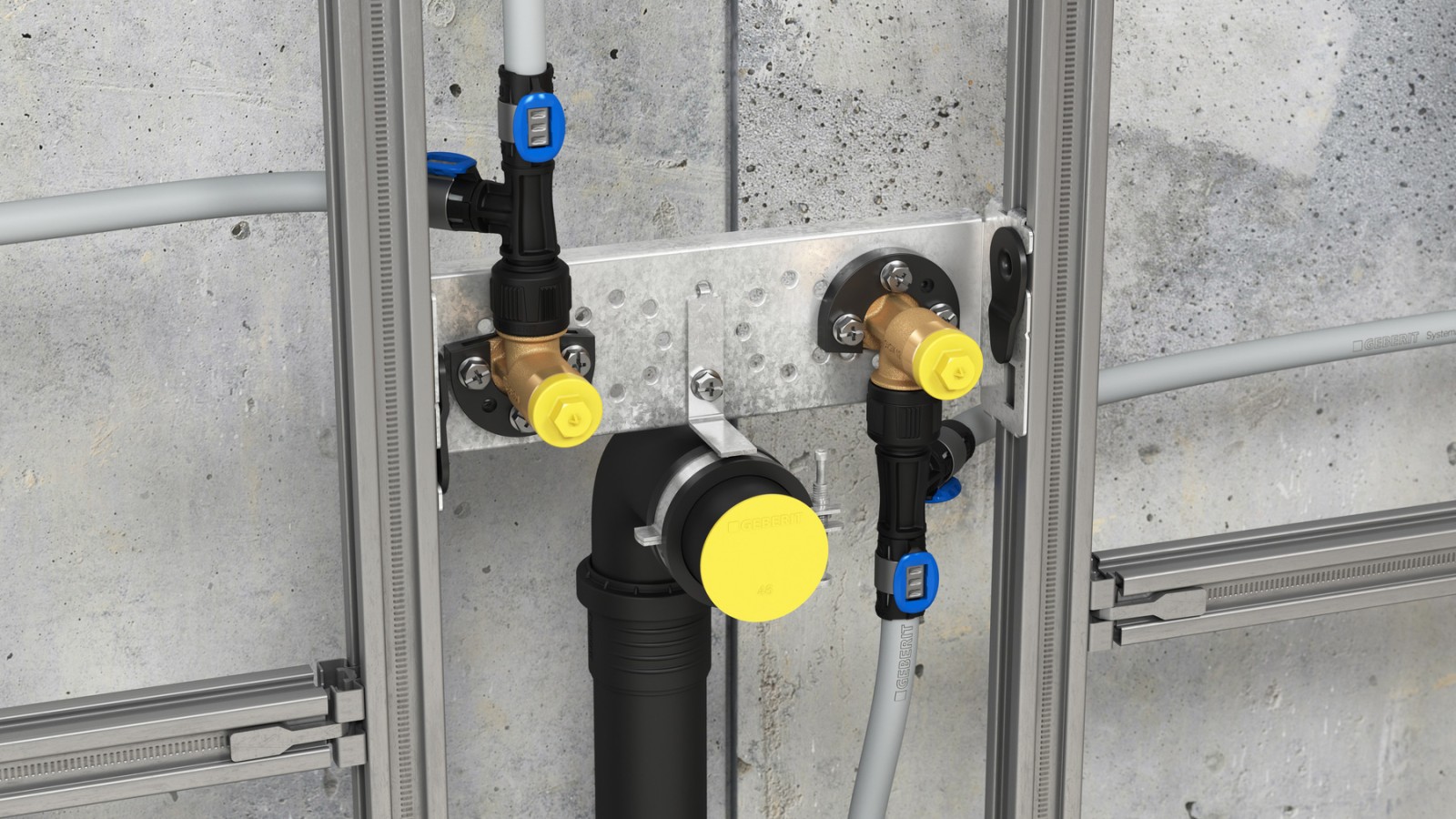

Tool-free connection
Geberit FlowFit can be connected tool-free to any Geberit taps and fittings with the MasterFix adapter. The connection can be removed again even after a long period of operation.
Can be combined with other supply systems

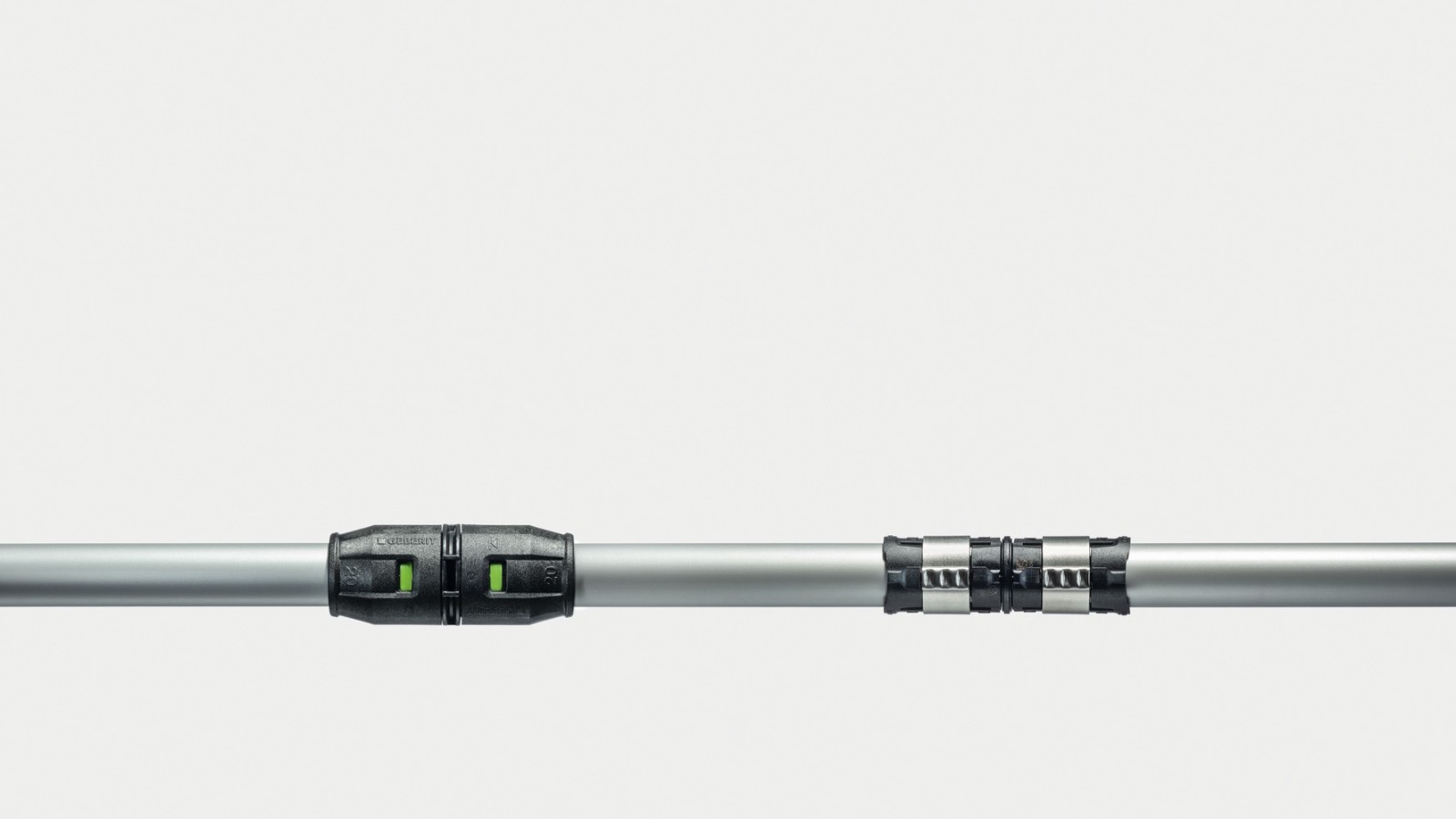

Geberit FlowFit system pipes can also be used as push-fit connections with Geberit PushFit fittings. System adapters are available for connection to other Geberit supply systems.
Geberit FlowFit universal fitting
Connecting Geberit FlowFit to existing pipes in older buildings used to be a complex and time-consuming task.
This is where the Geberit FlowFit universal fitting now offers a much simpler solution. Start by measuring the dimension of the existing pipe, prepare it using the Geberit deburring and calibration tool, attach the adapter, and press. The other end can be installed as usual with Geberit FlowFit.
The universal fitting is available for Geberit FlowFit in dimensions d16 to d26 with various pipe thicknesses.
System pipes

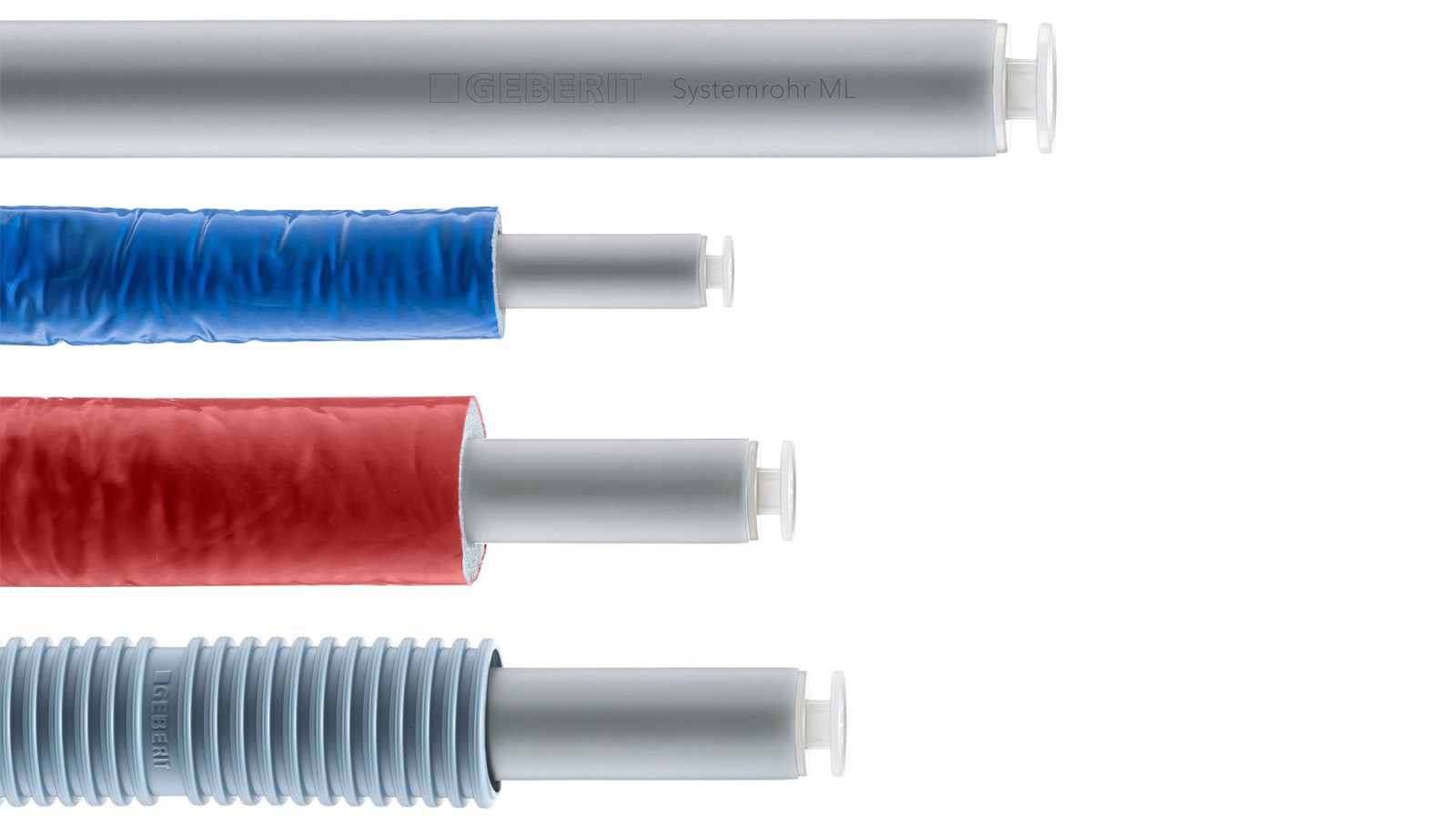

Geberit system pipe ML
- Multilayer system pipe for all applications
- Lightweight and inherently stable
- Available as a rough pipe for dimensions d16 to d75
- With protective shell or with insulation made of polyethylene foam for dimensions d16 and d20
- Various insulation thicknesses are available with durable foil coating in red and blue
- Protection plugs on the pipe ends prevent the accumulation of dirt and particles
- Available in coils for dimensions d16 to d32

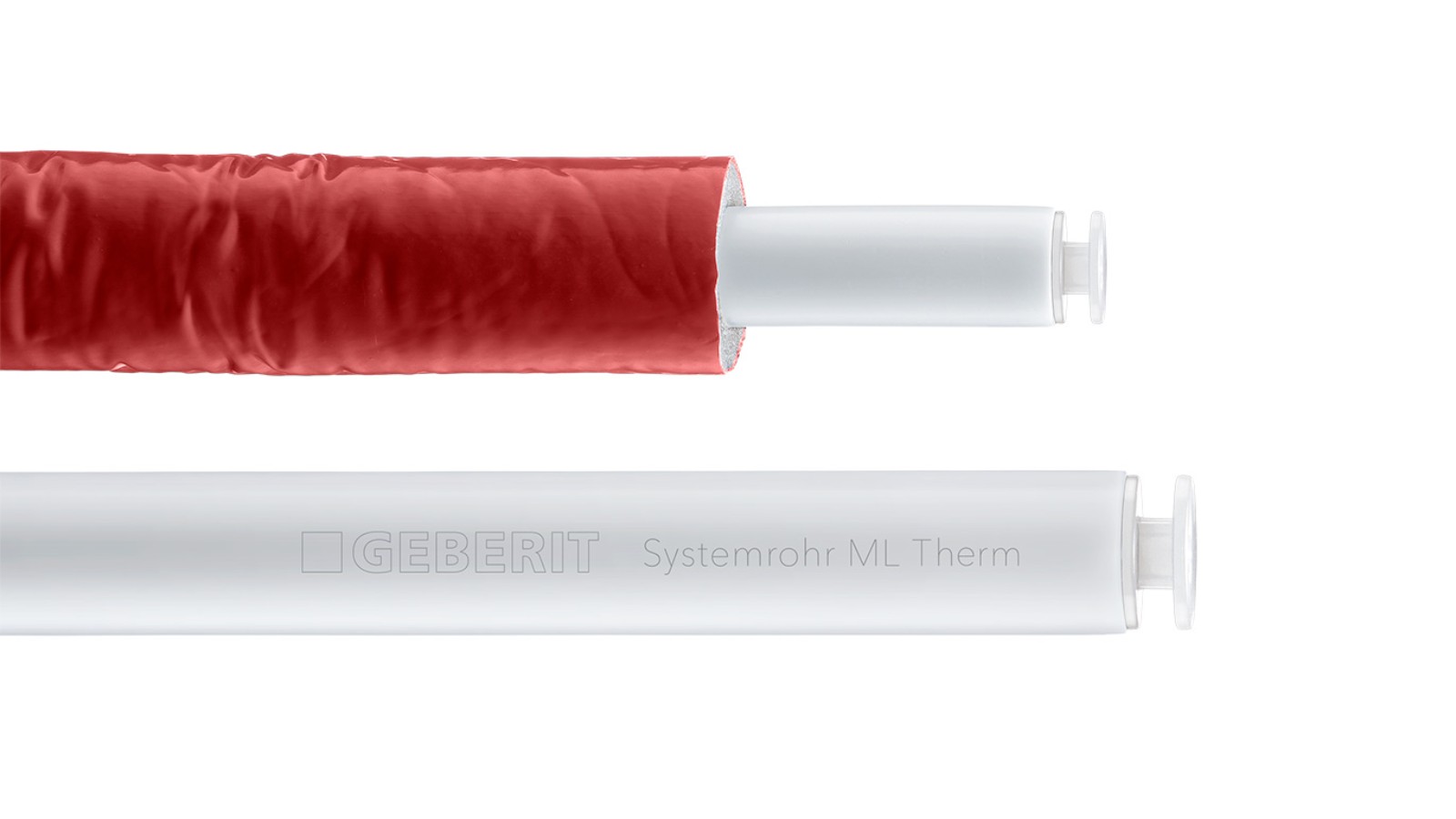

Geberit system pipe ML Therm
- For heating installations
- Available in coils for dimensions d16 to d25
- With insulation made of polyethylene foam for dimensions d16 and d35 with durable red foil coating
- Available in coils

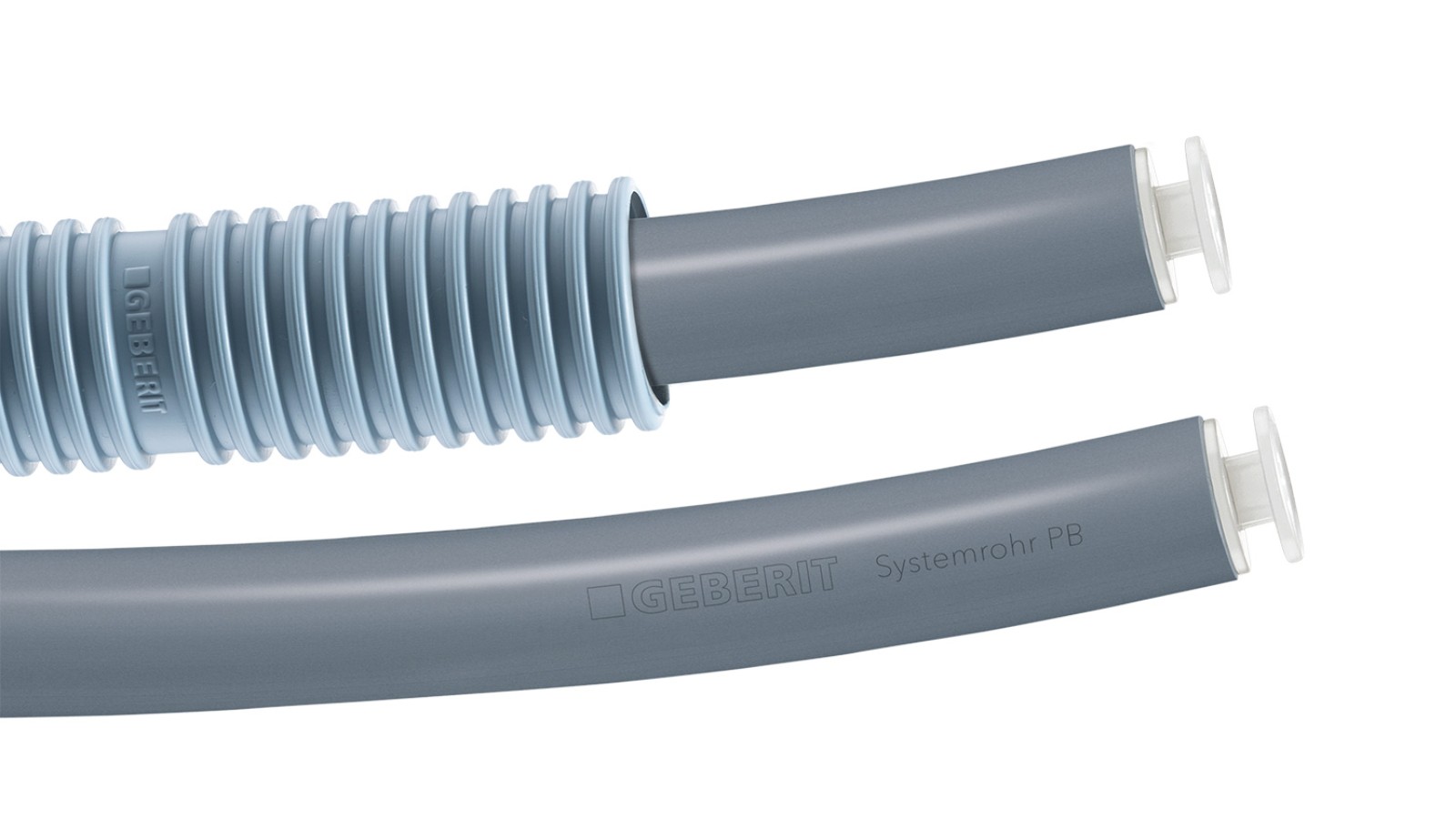

Geberit system pipe PB
- Flexible all-plastic pipe
- Available dimensions: 16, 20 and 25 mm
- Also available in the protective tube
- Available in coils
Environmental product declaration
EPD product declaration
Environmental product declarations (EPDs) create transparency and allow products to be compared in terms of their environmental impact.
Environmental product declarations are available for Geberit FlowFit pipes and for the most common Geberit FlowFit fittings:
- Geberit FlowFit system pipes ML
- Geberit FlowFit system pipes PB
- Geberit FlowFit plastic fittings (only available in English)
- Geberit FlowFit metal fittings
Installation
A quick guide to installation
Product assortment Geberit FlowFit Articles, technical information and more
![Image of Pressing tools compatibility [2] - GEBERIT](https://images.data.geberit.com/image/upload/f_auto,t_ProductThumbnail/71/54/DAS_1947154_20201020_093956.jpg "Image of Pressing tools compatibility [2] - GEBERIT")
![Image of Pressing tools compatibility [2] - GEBERIT](https://images.data.geberit.com/image/upload/f_auto,t_ProductThumbnail/62/74/DAS_1826274_20210310_104026.jpg "Image of Pressing tools compatibility [2] - GEBERIT")
![Image of Pressing tools compatibility [2] - GEBERIT](https://images.data.geberit.com/image/upload/f_auto,t_ProductThumbnail/37/19/DAS_2143719_20210323_155041.jpg "Image of Pressing tools compatibility [2] - GEBERIT")
![Image of Pressing tools compatibility [2] - GEBERIT](https://images.data.geberit.com/image/upload/f_auto,t_ProductThumbnail/62/84/DAS_1826284_20200702_132657.jpg "Image of Pressing tools compatibility [2] - GEBERIT")
Do you have any questions? We are happy to help you.
Our specialists advise planners, plumbers and other professionals on their projects. They will be happy to advise you on how to best master your current challenges with our products.
Useful planning tools for Geberit FlowFit
Geberit BIM Plug-in
The Geberit BIM Plug-in for Autodesk® Revit® combines all Geberit planning and calculation tools as well as access to BIM content in one application.
Take-back scheme for a sustainable supply system
At Geberit, sustainable product and manufacturing solutions in the sanitary sector are standard practice. Minimising waste and packaging materials on the building site is part of this commitment. This is why Geberit FlowFit is part of an innovative take-back scheme, allowing valuable materials to be reintegrated into the resource cycle.

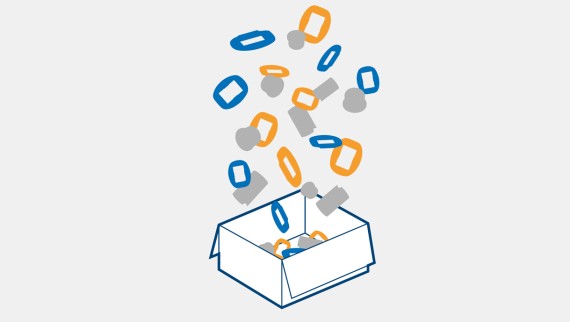

1. Collect protective caps and pressing indicators
Collect the protective caps and pressing indicators in a cardboard box with maximum dimensions of 120 x 60 x 60 cm.

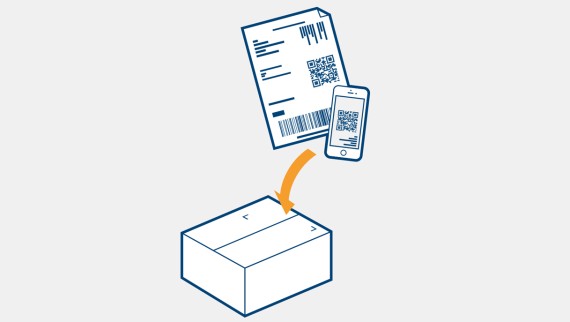

2. Print a DHL shipping label
Print out the DHL shipping label or have a digital label sent to your smartphone.

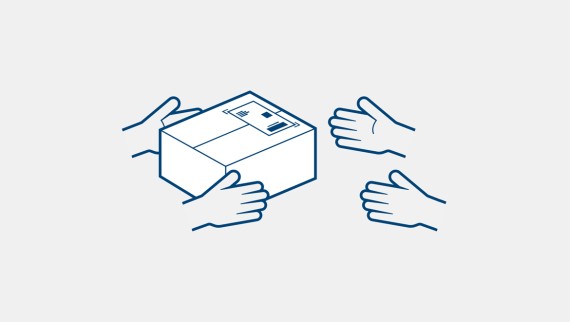

3. Free shipping with DHL
Drop off the package at your nearest DHL collection point.
Discover similar products

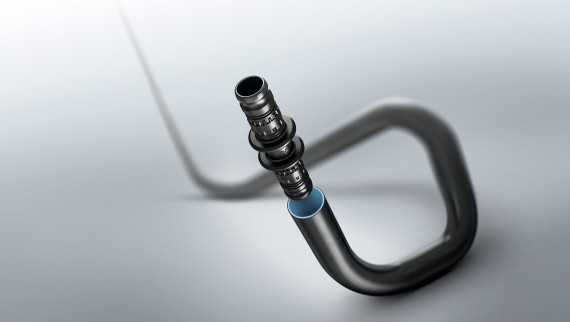

Geberit Mepla
The Geberit Mepla pressing system is easy to use and ideal for drinking water, compressed air, heating and air-conditioning applications.

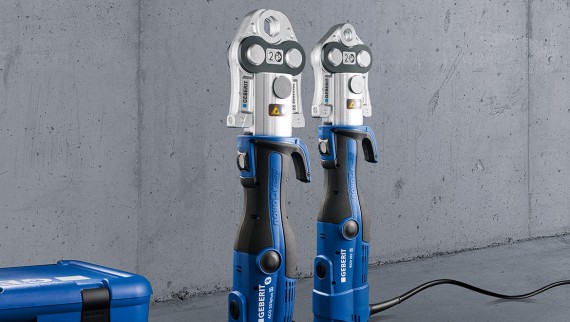

Tools and accessories for Geberit supply systems
Approved pressing operations are created with the Geberit pressing jaws, pressing collars and adapter jaws. These tools are used as the basis for system approvals.

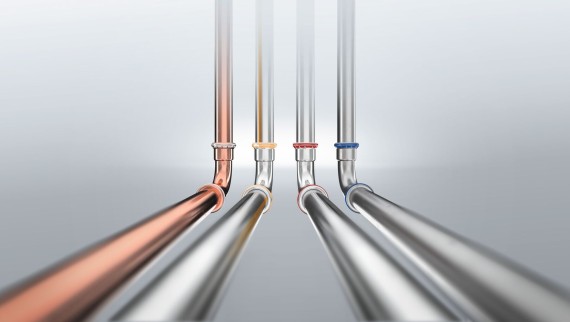

Geberit Mapress
