Geberit PE SuperTube Hydraulically optimised drainage for high-rise buildings

All the components of the Geberit PE SuperTube system are designed to work together perfectly, allowing space-saving waste water installations in high-rise buildings.
Geberit PE SuperTube eliminates the need for a parallel ventilation pipe, creating more residential and floor space.
Using smaller diameter pipes allows smaller pipe ducts while still maintaining a high discharge capacity of 12 l/s when using pipes with d110.
Geberit SuperTube quick overview Here’s how the drainage system works
Conventional drainage systems in high-rise buildings generally require a lot of space for pipes with d160 and additional secondary ventilation pipes with d90. There also needs to be enough space below ceilings for horizontal pipes to have the correct slope. The discharge capacity of a conventional system is 12.4 l/s.
The hydraulically optimised Geberit SuperTube drainage system requires less room, creating additional living and working space. Geberit SuperTube technology creates a continuous column of air in the discharge stack. This allows the stack to reach a discharge capacity of 12 l/s with smaller pipes d110 and without any additional secondary ventilation. Horizontal pipes can be installed without a slope for up to 6 metres.
More peace – more comfort With Geberit Silent-db20

Peace and quiet is precious. Geberit Silent-db20 SuperTube is a space-saving drainage system for high-rise buildings that meets strict sound insulation requirements.
It minimises disturbing noises for neighbours and ensures maximum living comfort.
Perfect interplay

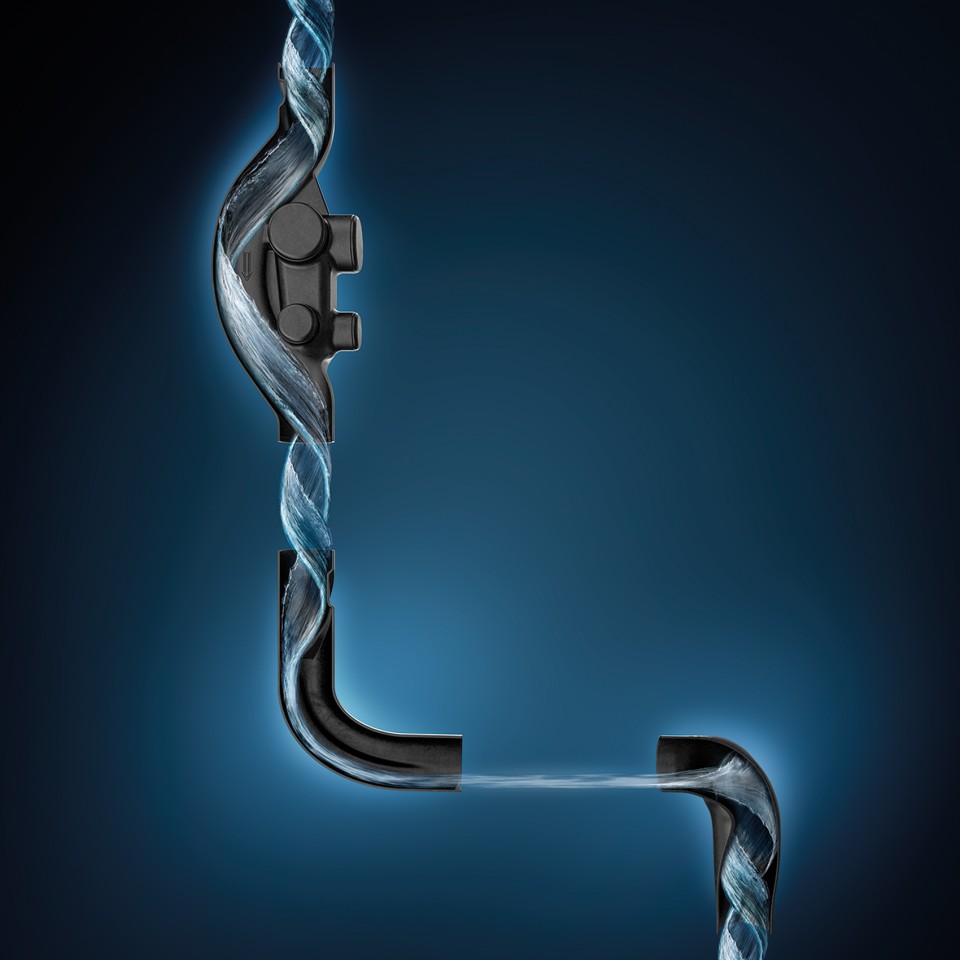

The outflowing water is set in rotation in the Geberit PE Sovent fitting.
Geberit PE SuperTube hydraulically optimised fittings
