Geberit FlowFit Flow-optimised piping system for drinking water

Fluid installation

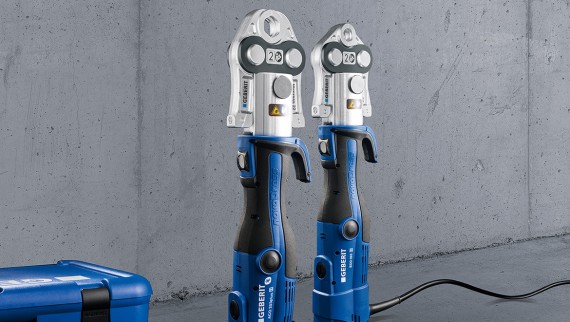

The Geberit FlowFit supply system featuring lateral pressing technology simplifies installation at various points and speeds up workflows. All it takes is two pressing jaws to press all dimensions from d16 to d75, eliminating the need for frequent tool changes.

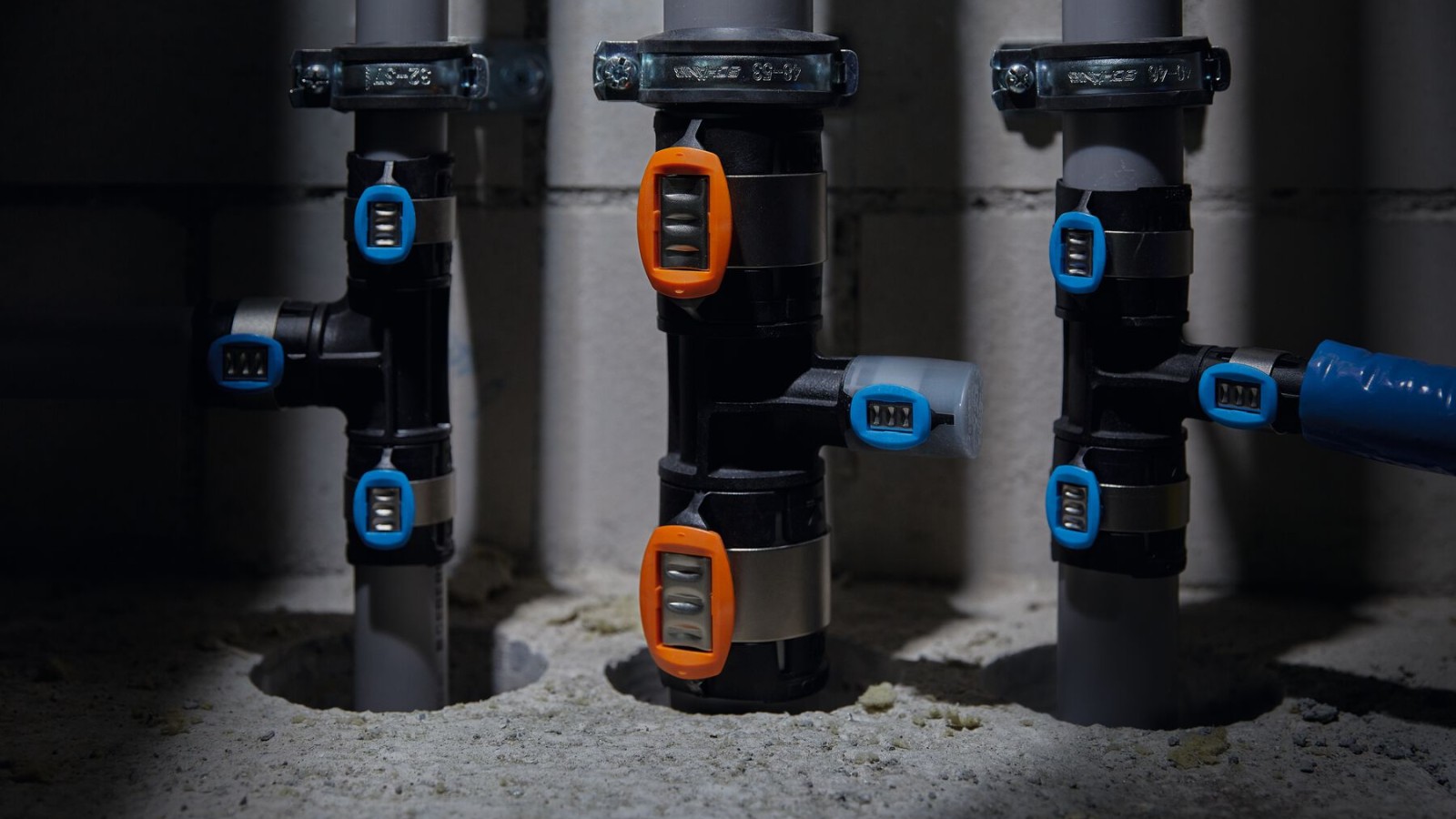

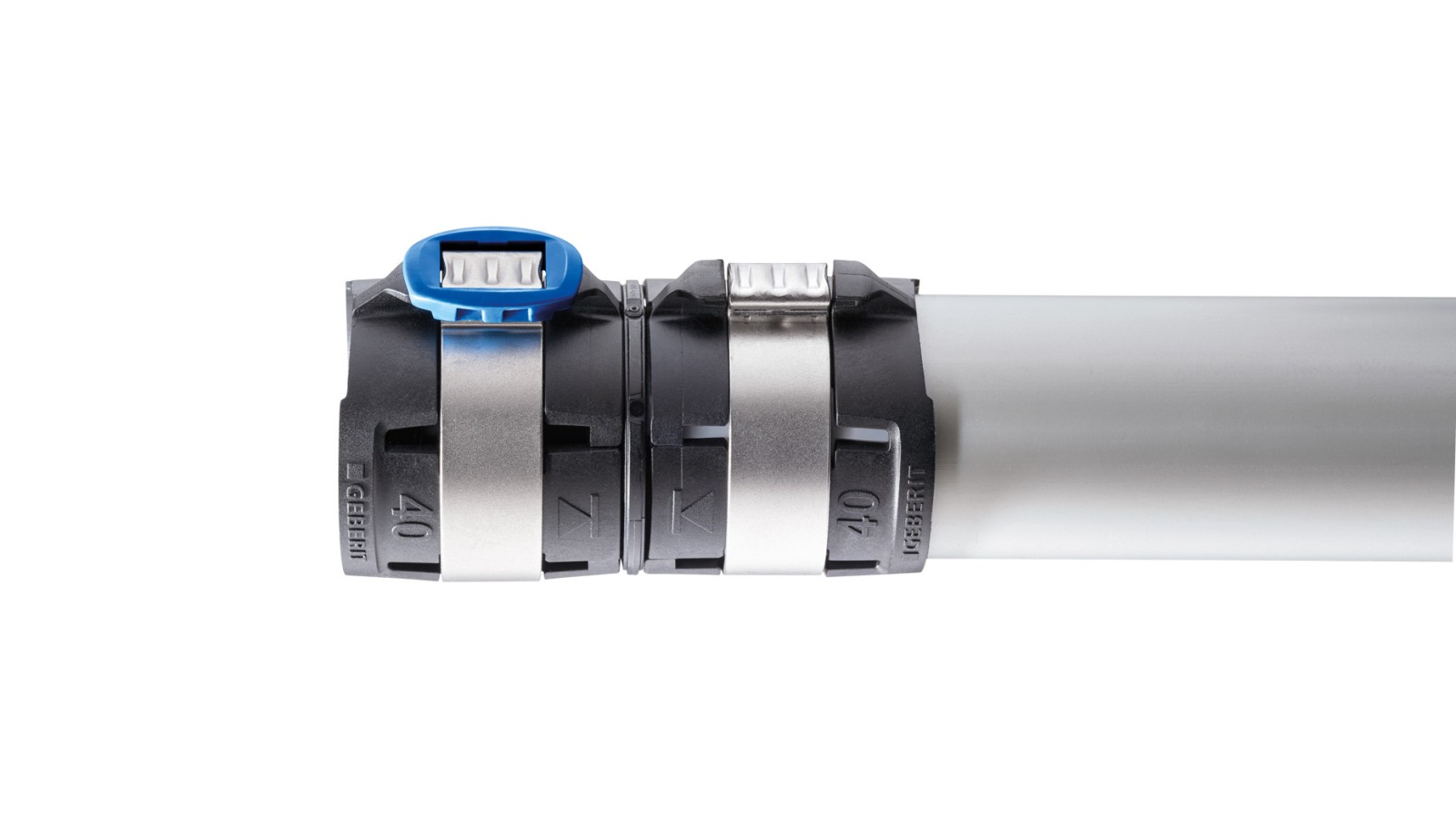

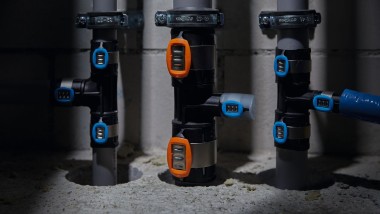

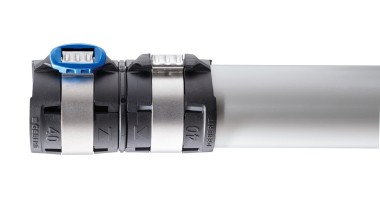

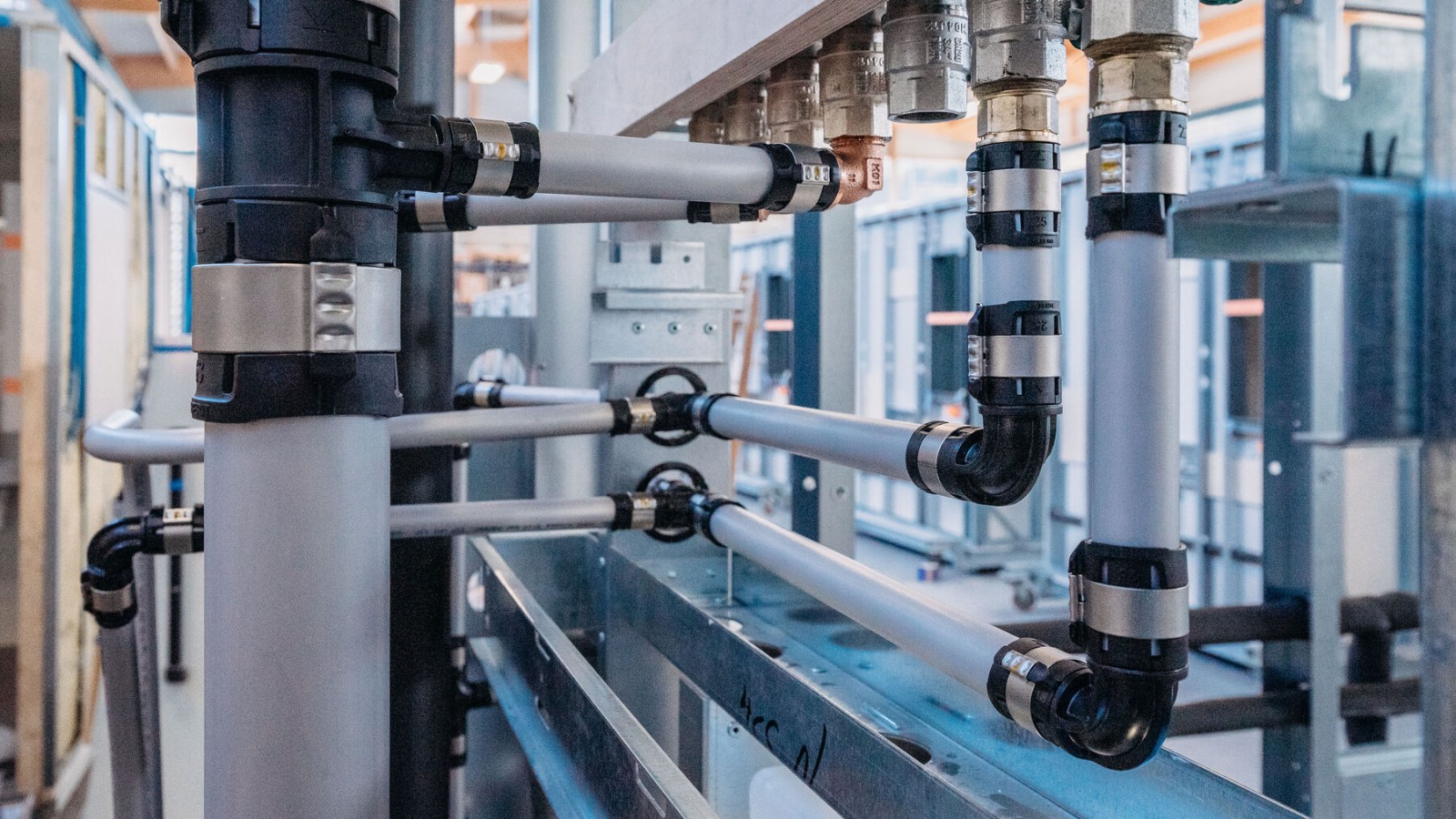

Inspection windows allow plumbers to check whether the pipe has been inserted to the correct depth, while blue or orange pressing indicators on the fittings confirm when the piping system has been correctly installed and securely pressed.

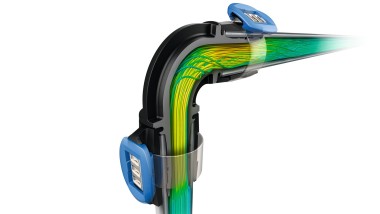

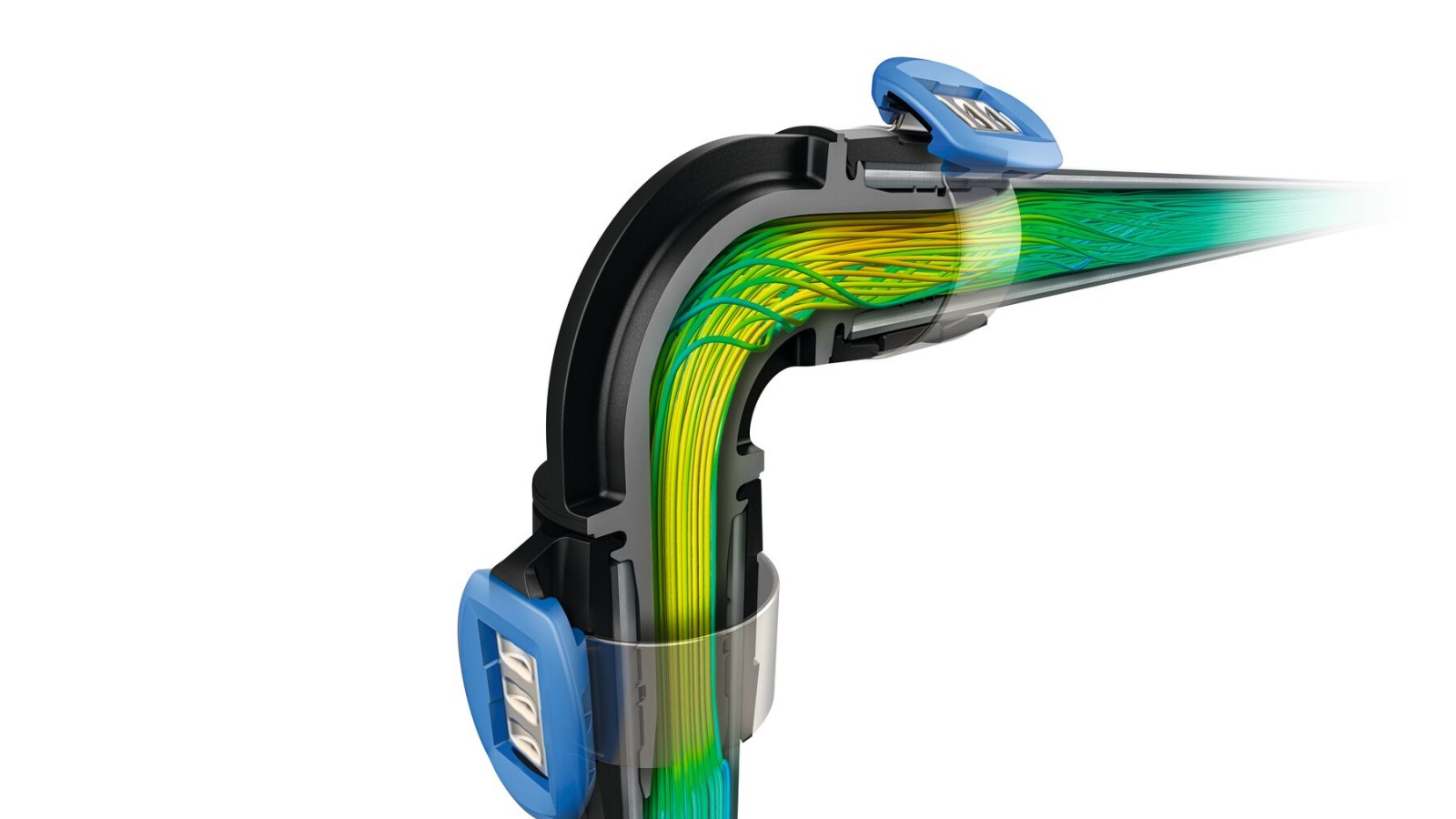

Geberit FlowFit press fittings are also optimised for flow, allowing smaller diameters to be used in drinking water installations.

Geberit FlowFit pipes are available as both rods and coils, with or without insulation. The extensive assortment of Geberit FlowFit fittings is suitable for a wide variety of applications.

Start planning with Geberit FlowFit

Why choose Geberit FlowFit?

Easy installation

Straightforward installation with fewer work steps and no uncertainties.

Two pressing jaws for all dimensions

Smooth and fast installation with fewer tool changes.

Reliably pressed

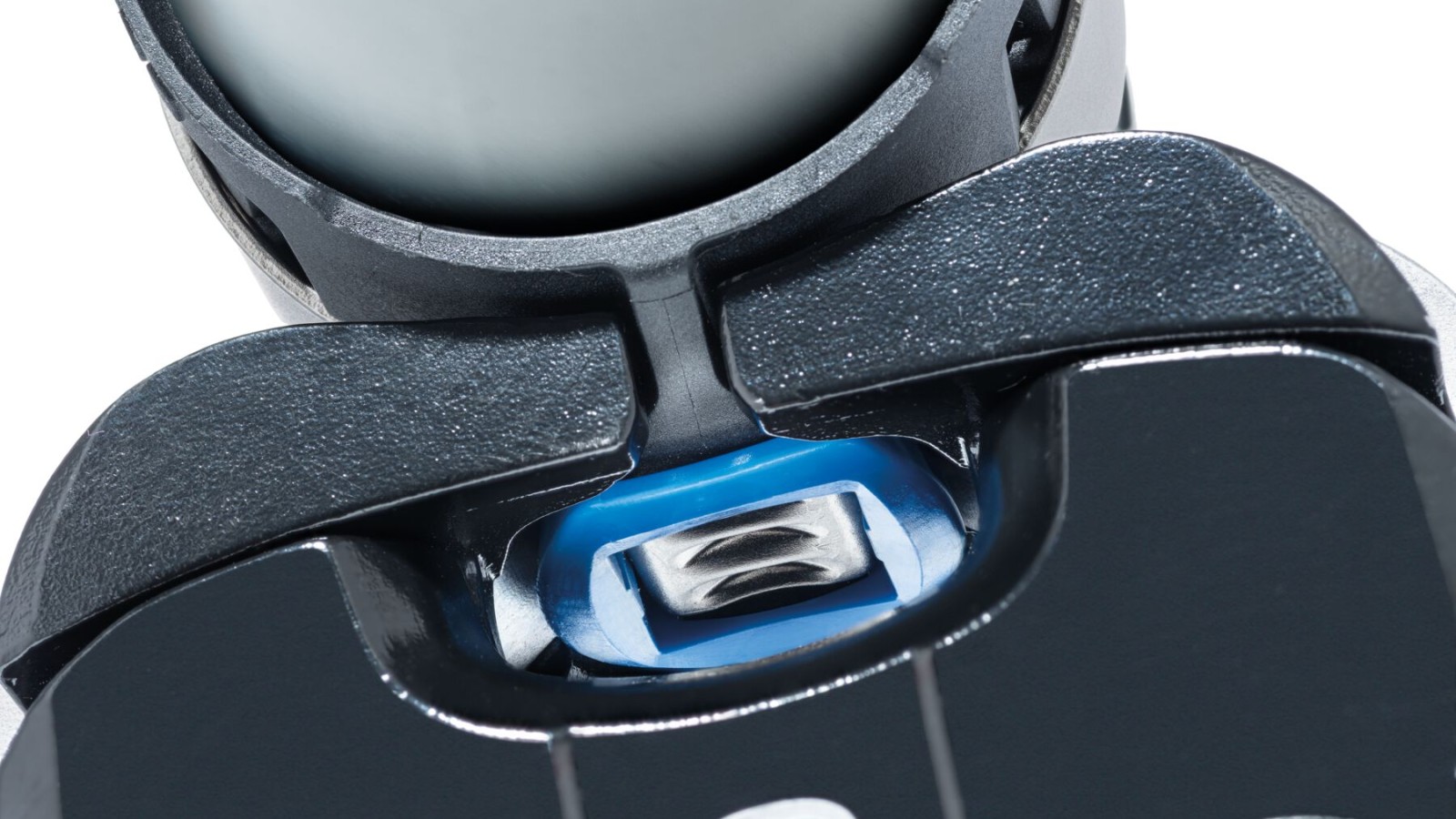

Clear tool guidance and reliable control of the pressed installation.

Flow-optimised

Reduced pressure losses enable the use of smaller pipe diameters in planning.

Download our brochure

Main applications and areas of use

Drinking water pipes

Geberit FlowFit can be used for drinking water pipes in the riser as well as for connection pipes for hot and cold water.

Application: heating in technical building systems

Heating in apartment buildings

Geberit FlowFit is suitable for cooling and heating water systems with or without antifreeze agent, for pressures of up to 10 bar.

Compressed air

Geberit FlowFit can be used for compressed air applications up to 10 bar.

Benefits of Geberit FlowFit Secure installation made simple

Easy to install in just a few steps

Effortless installation with Geberit FlowFit

Geberit FlowFit enables safe and effortless installation by eliminating unnecessary work steps and reducing the number of tools required. Clear inspection features provide additional confidence in achieving a complete and secure installation.

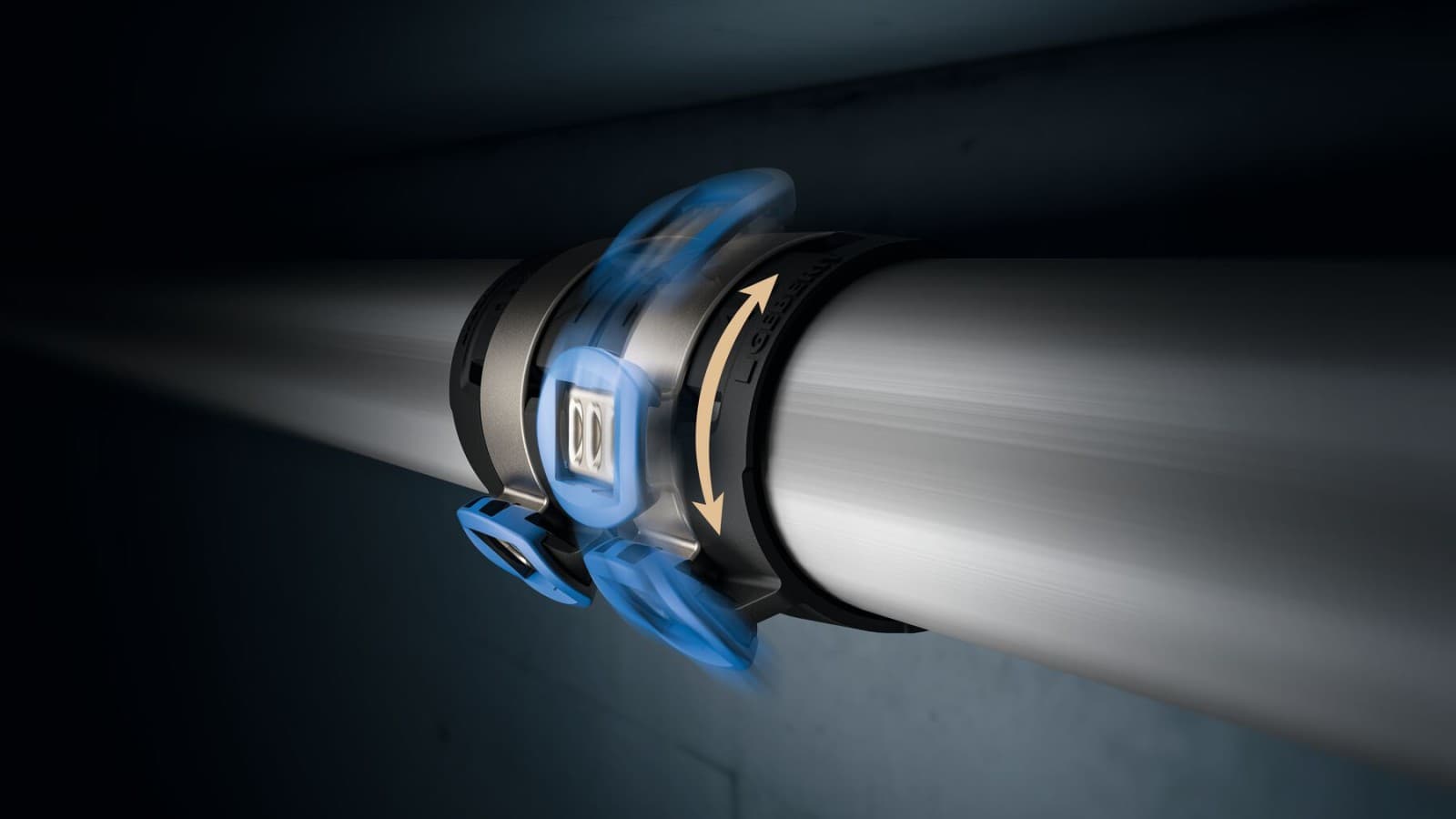

The pressing point is rotatable, allowing the pressing jaw to be positioned easily in any installation situation. This ensures that press connections can be securely made even in tight and hard-to-reach spaces.

Thanks to the special fitting design, there is no need for pipe calibration or deburring after cutting to length.

Convenient and safe pressing: With lateral pressing technology, the pressing jaw only needs to be applied from one side. The pressing point can be rotated to ensure the press fitting is easily accessible and securely pressed. The press fitting can be turned in 45° increments.

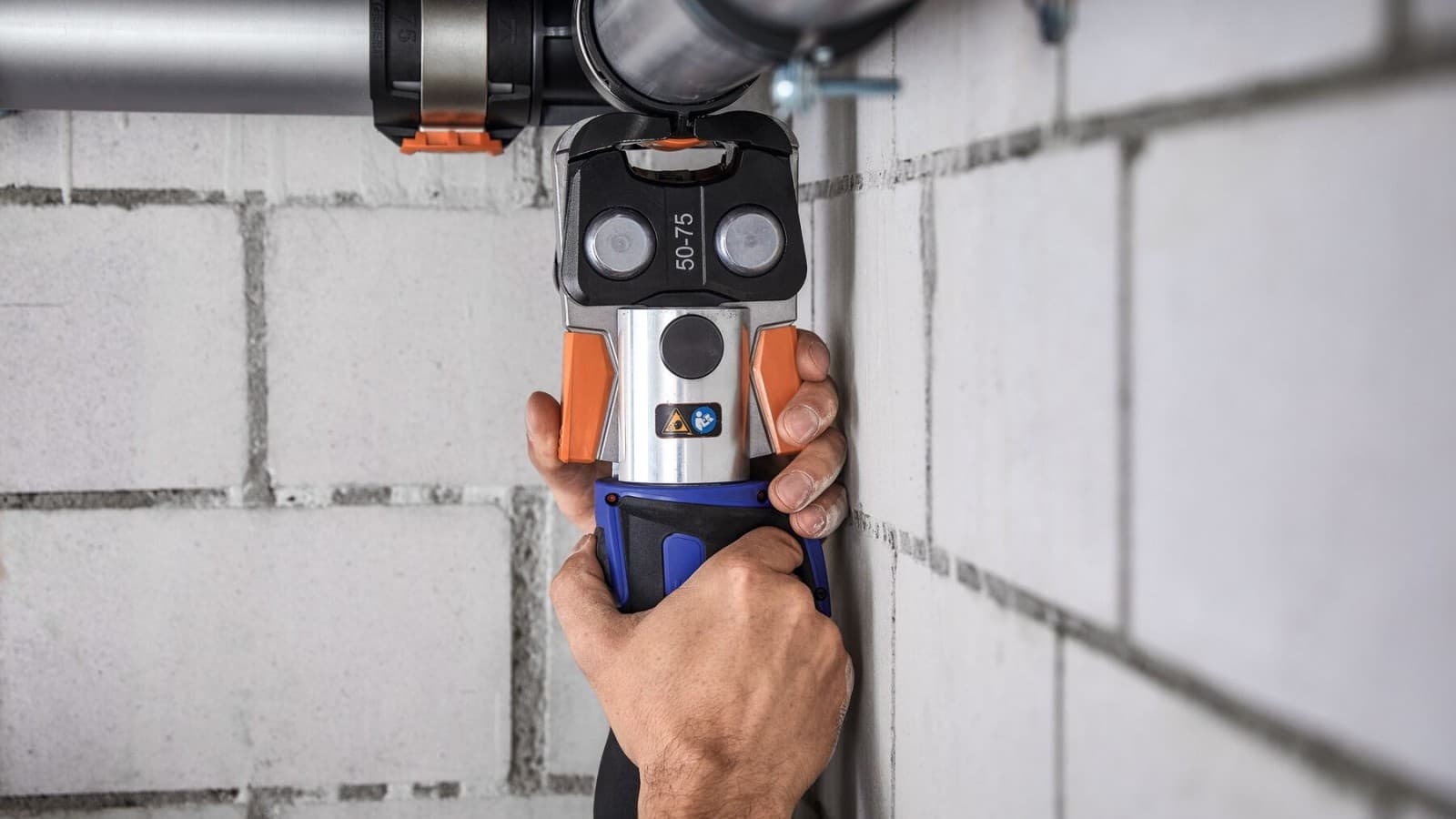

Geberit FlowFit can be pressed in tight places

Installation in tight constructional situations: The pressing jaw only needs to be applied from the side, making secure pressing effortless even in corners or tight spaces.

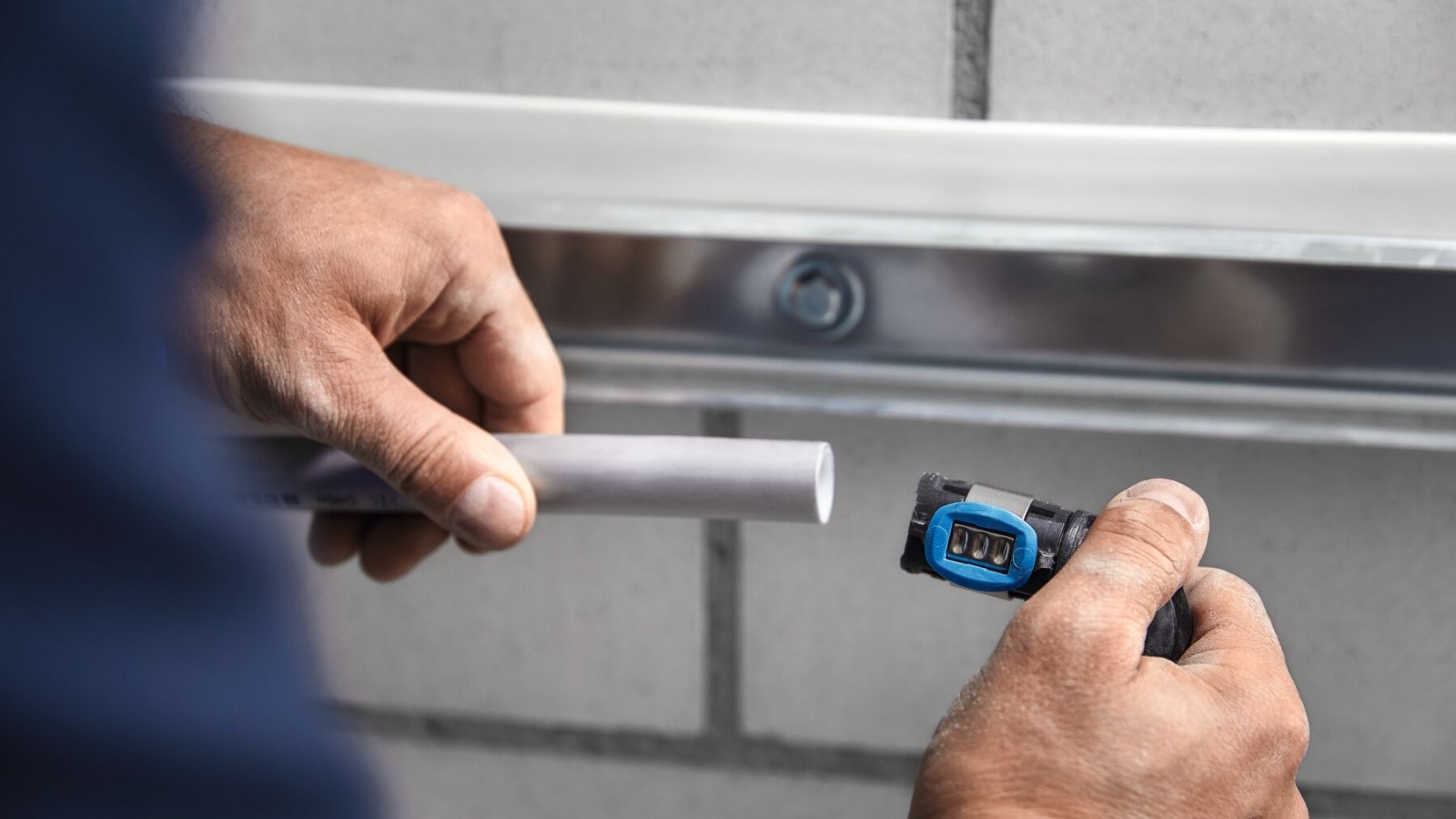

The Geberit FlowFit fitting can be fitted directly once cut to length

No deburring or calibration: Once cut to length, the press fitting is simply pushed onto the pipe. If the pipe is not perfectly round, a Geberit calibration tool can correct its shape.

Secure pipe joints with reliable checking features

Clean installation without pressure loss

No more worries – good solutions for a sustainable supply system

Please choose an information button in the image

Geberit FlowFit at a glance

Facts & figures

Dimensions

Fittings

System pipes

Environmental product declaration

Installation

Facts & figures

Assortment overview

8 nominal widths from d16 to d75
Around 500 fittings and components
Multilayer (ML) system pipes, also available in a protective tube or pre-insulated
Polybutene (PB) system pipes, also available in a protective tube
MasterFix adapter for tool-free, secure screw connections to Geberit sanitary appliances
Extensive assortment of adapters and transitions to other systems

Nominal width DN	Dimension d x s (mm)
12	16 x 2.0
15	20 x 2.0
20	25 x 2.5
25	32 x 2.8
32	40 x 3.0
40	50 x 3.8
50	63 x 4.0
65	75 x 4.6

Fittings

Features

Comprehensive assortment

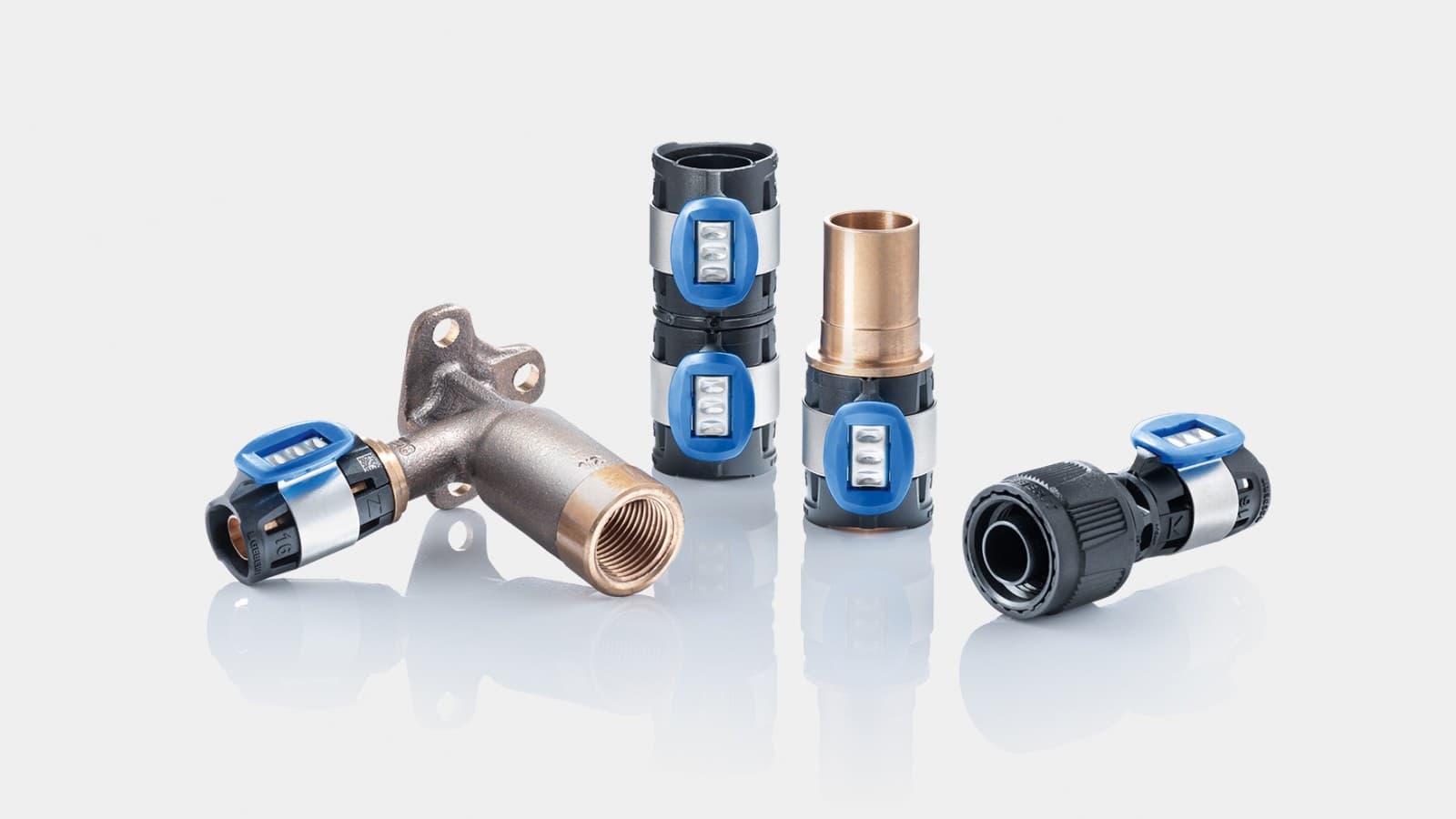

Geberit FlowFit offers a comprehensive assortment of fittings made of PPSU, lead-free gunmetal and lead-free silicon bronze. The assortment includes both standard and special fittings.

Tool-free connection

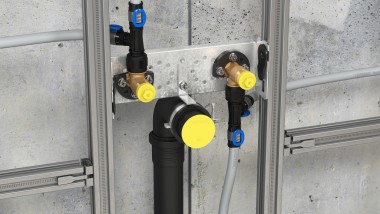

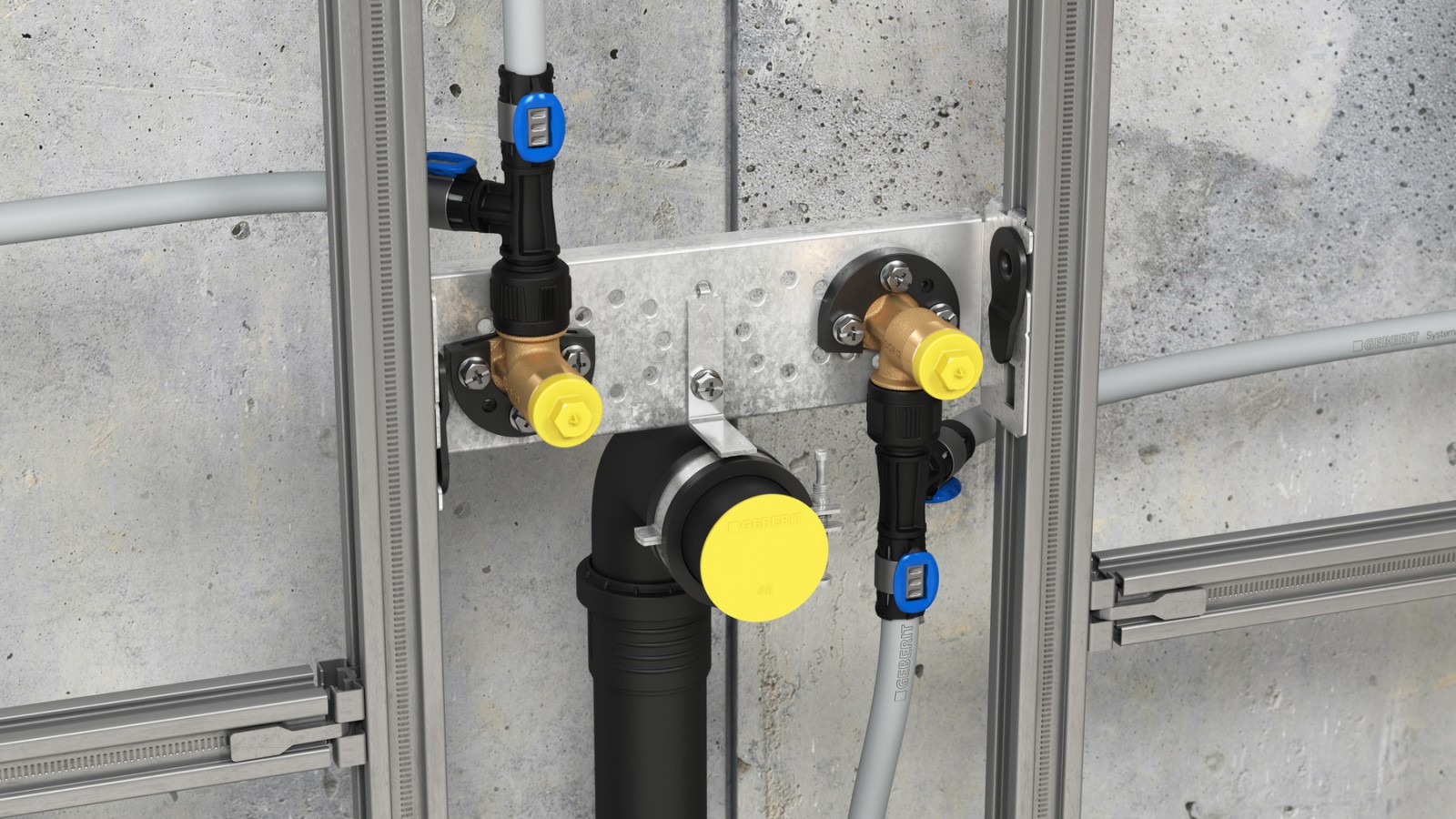

Geberit FlowFit can be connected tool-free to any Geberit taps and fittings with the MasterFix adapter. The connection can be removed again even after a long period of operation.

Can be combined with other supply systems

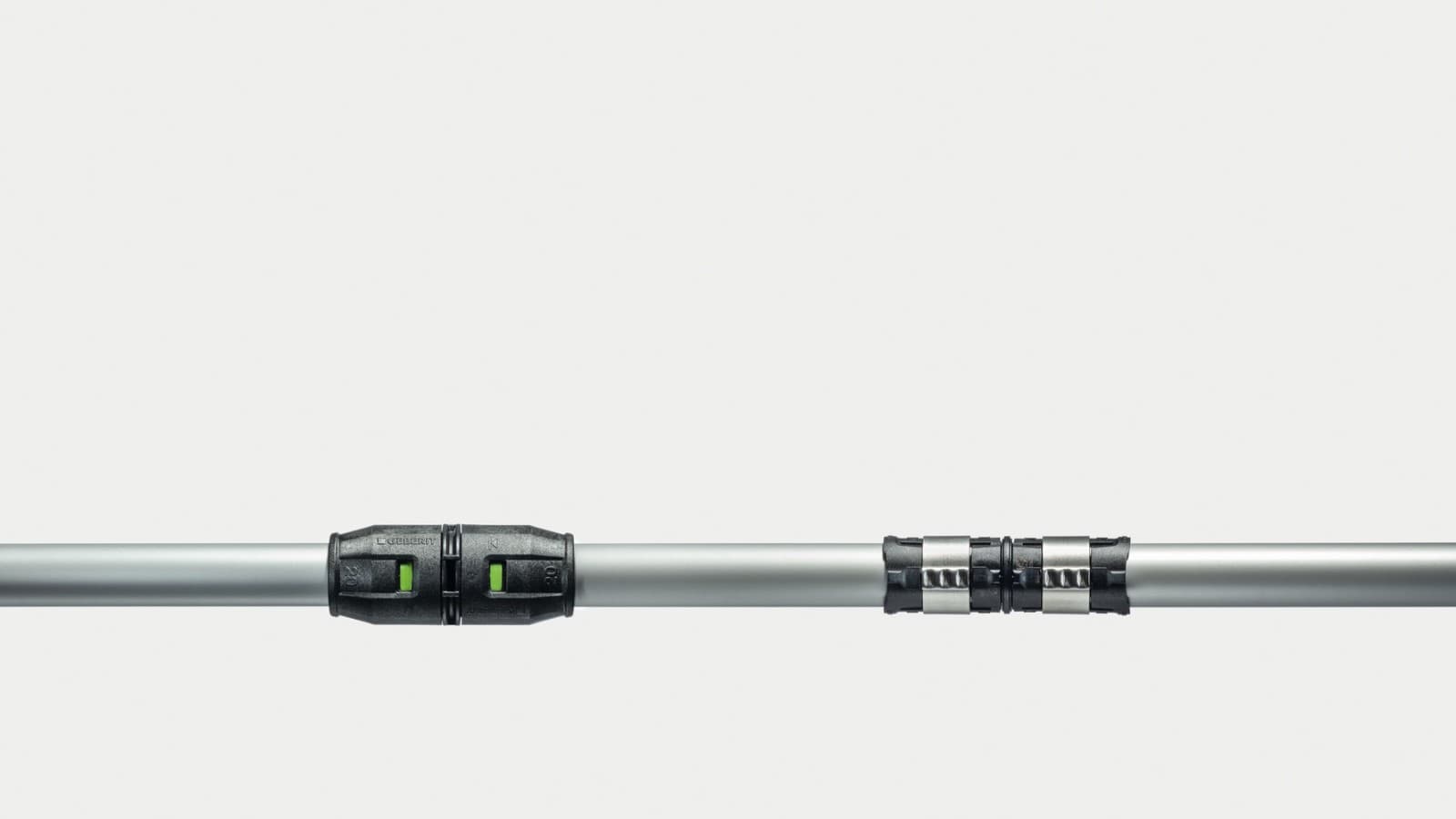

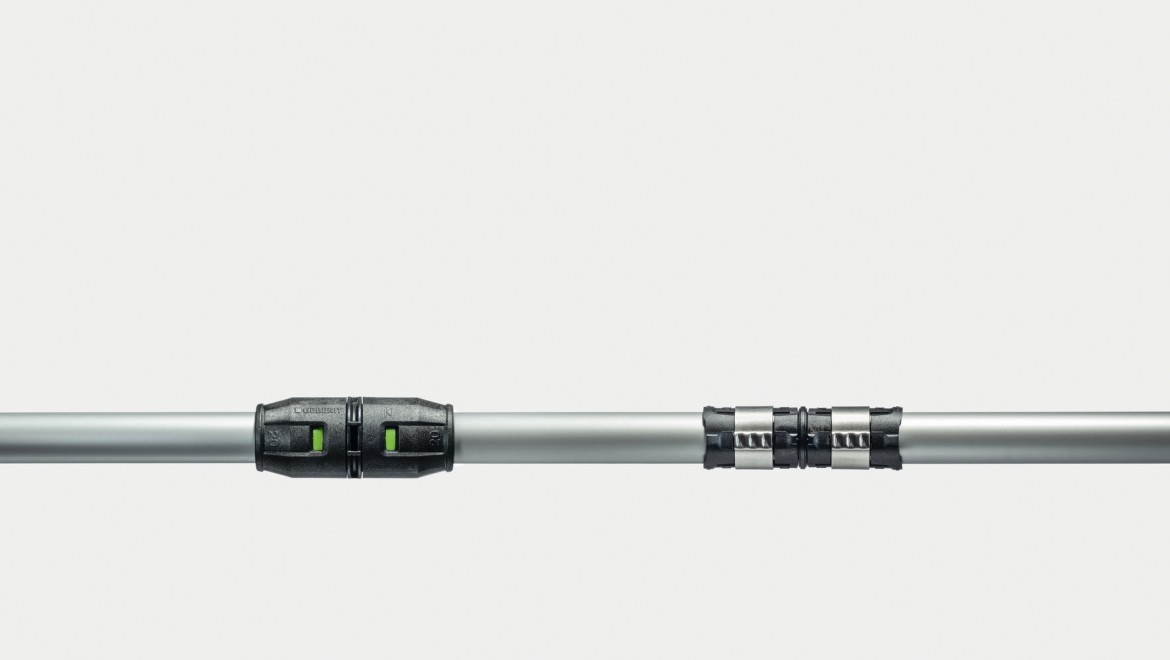

Geberit FlowFit system pipes can also be used as push-fit connections with Geberit PushFit fittings. System adapters are available for connection to other Geberit supply systems.

Geberit FlowFit universal fitting

Connecting Geberit FlowFit to existing pipes in older buildings used to be a complex and time-consuming task.

This is where the Geberit FlowFit universal fitting now offers a much simpler solution. Start by measuring the dimension of the existing pipe, prepare it using the Geberit deburring and calibration tool, attach the adapter, and press. The other end can be installed as usual with Geberit FlowFit.

The universal fitting is available for Geberit FlowFit in dimensions d16 to d26 with various pipe thicknesses.

System pipes

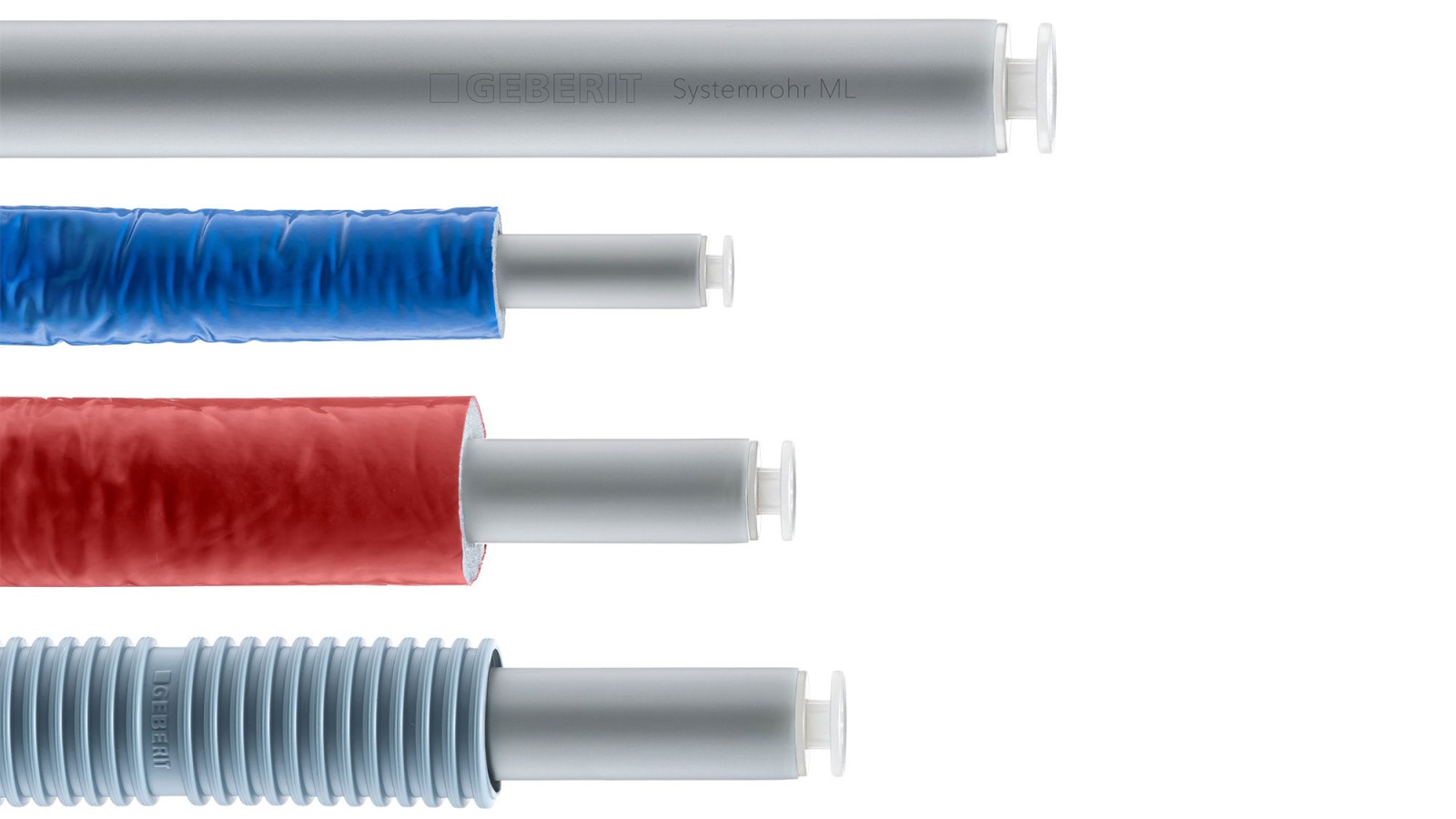

Geberit system pipe ML

Multilayer system pipe for all applications
Lightweight and inherently stable
Available as a rough pipe for dimensions d16 to d75
With protective shell or with insulation made of polyethylene foam for dimensions d16 and d20
Various insulation thicknesses are available with durable foil coating in red and blue

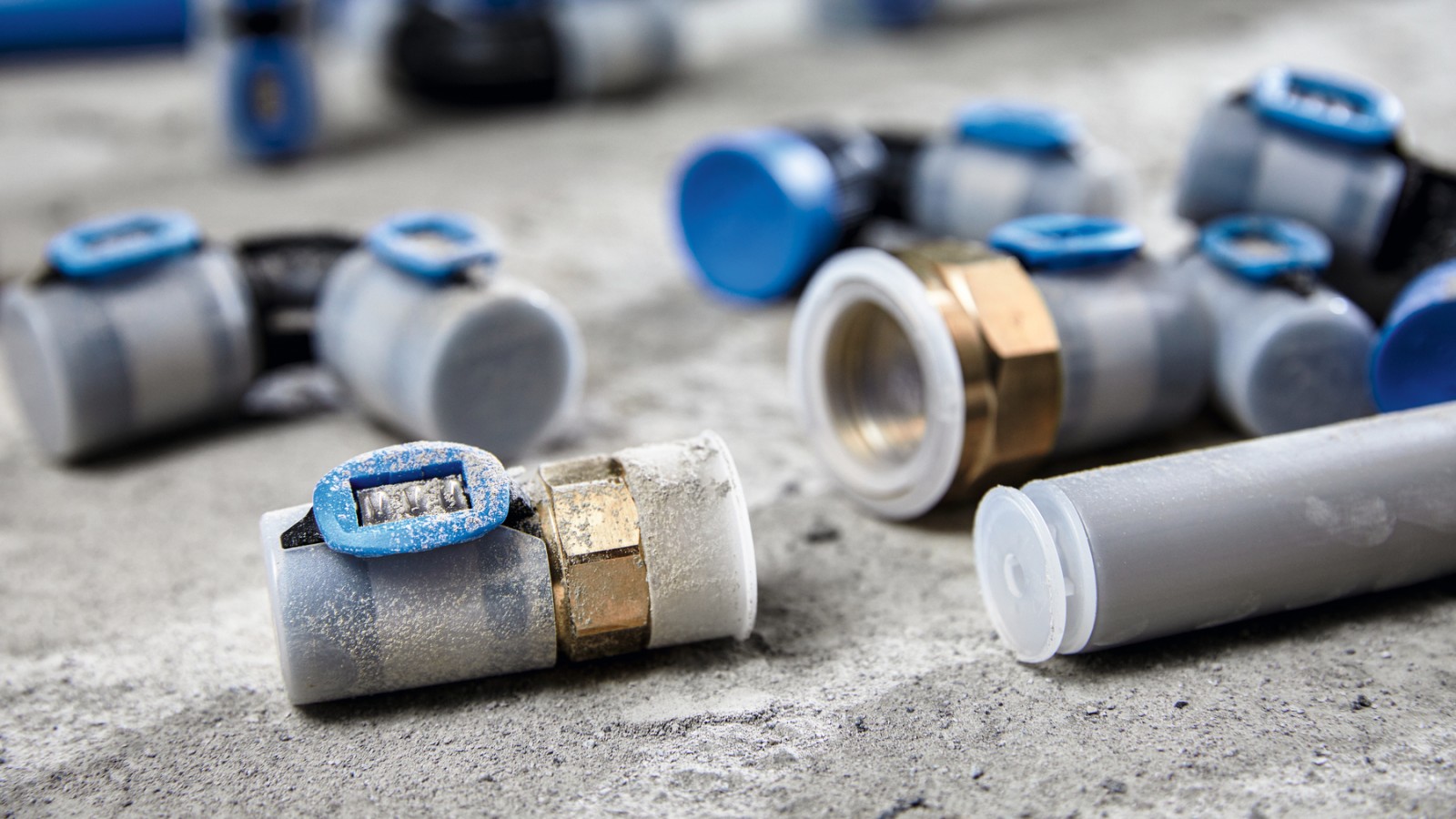

Protection plugs on the pipe ends prevent the accumulation of dirt and particles
Available in coils for dimensions d16 to d32

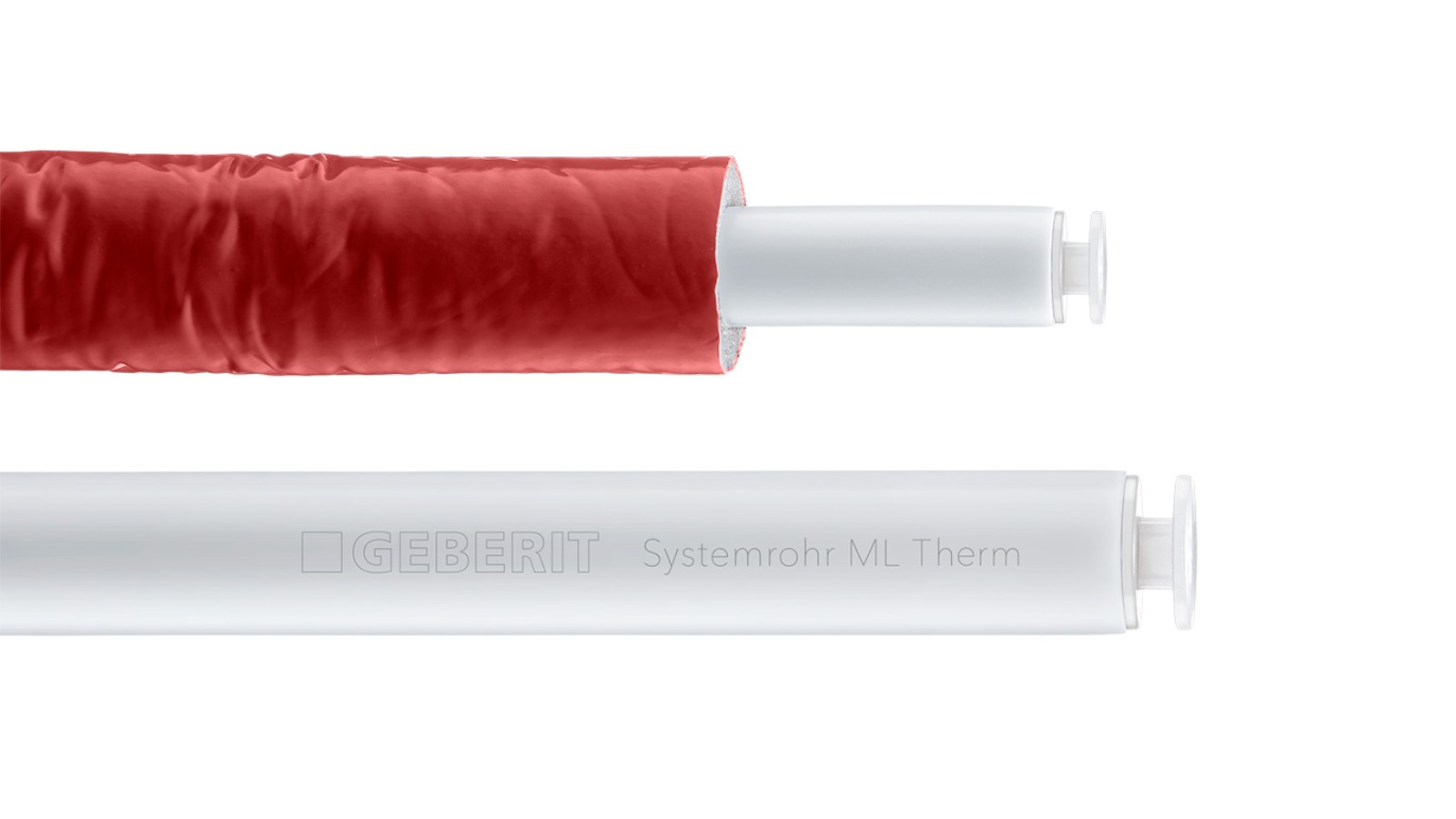

Geberit system pipe ML Therm

For heating installations
Available in coils for dimensions d16 to d25
With insulation made of polyethylene foam for dimensions d16 and d35 with durable red foil coating
Available in coils

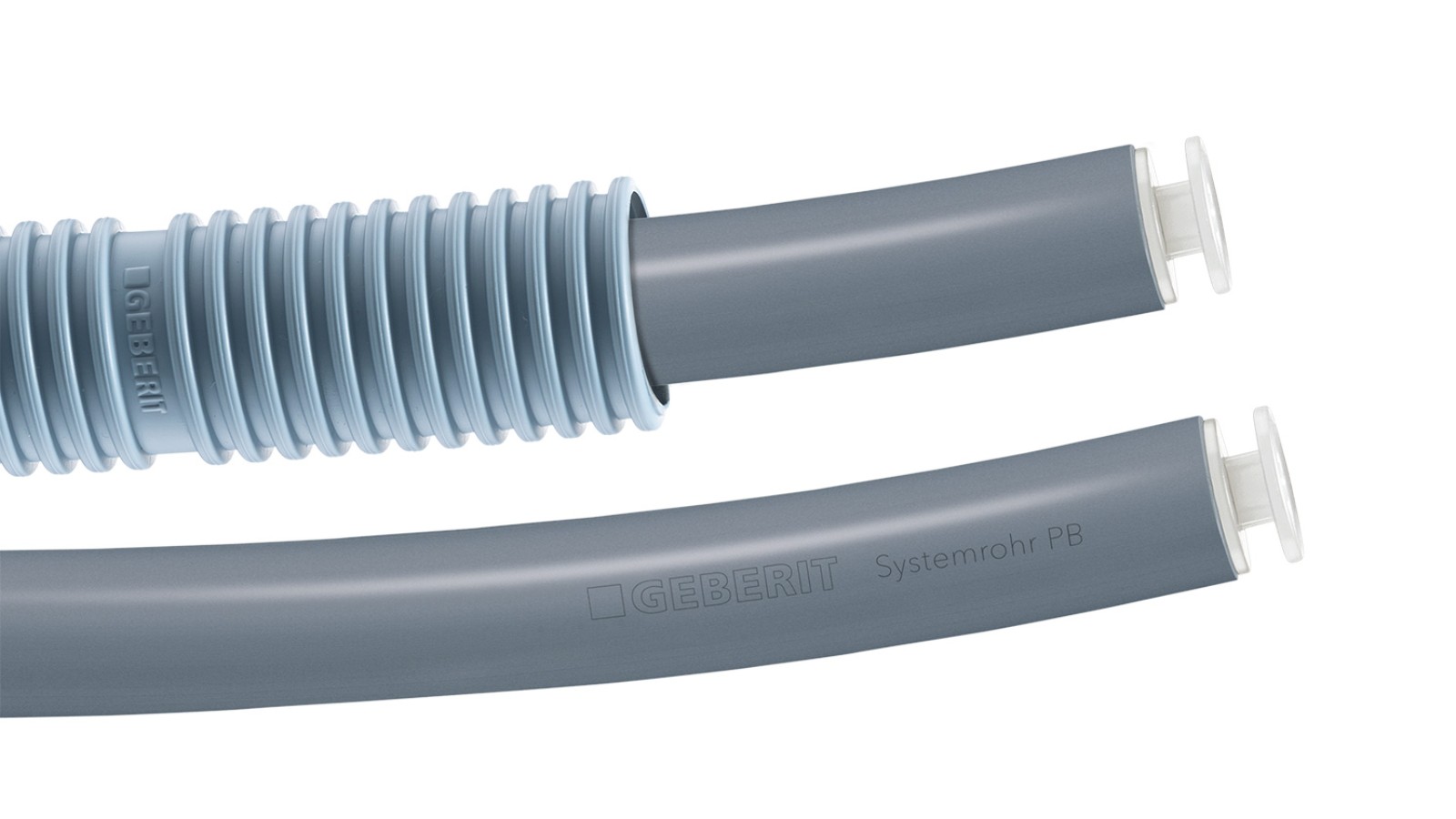

Geberit system pipe PB

Flexible all-plastic pipe
Available dimensions: 16, 20 and 25 mm
Also available in the protective tube
Available in coils

Environmental product declaration

EPD product declaration

Environmental product declarations (EPDs) create transparency and allow products to be compared in terms of their environmental impact.

Environmental product declarations are available for Geberit FlowFit pipes and for the most common Geberit FlowFit fittings:

Geberit FlowFit system pipes ML
Geberit FlowFit system pipes PB
Geberit FlowFit plastic fittings (only available in English)
Geberit FlowFit metal fittings

More on green building and EPDs

Installation

A quick guide to installation

Simple and secure installation

Geberit FlowFit can be installed quickly and easily with just two pressing jaws. Inspection windows and pressing indicators provide installers with confidence that the piping system has been correctly installed and securely pressed.

Installation with collecting device

A convenient feature on the tool collects the pressing indicators immediately during the pressing process. Geberit offers free return and recycling of indicators and protective caps.

Product assortment Geberit FlowFit Articles, technical information and more

Discover all products

Do you have any questions? We are happy to help you.

Our specialists advise planners, plumbers and other professionals on their projects. They will be happy to advise you on how to best master your current challenges with our products.

Useful planning tools for Geberit FlowFit

BIM

All BIM tools from Geberit are combined in this central application for professionals. Many helpful functions simplify the planning process.

More about BIM

Take-back scheme for a sustainable supply system

At Geberit, sustainable product and manufacturing solutions in the sanitary sector are standard practice. Minimising waste and packaging materials on the building site is part of this commitment. This is why Geberit FlowFit is part of an innovative take-back scheme, allowing valuable materials to be reintegrated into the resource cycle.
